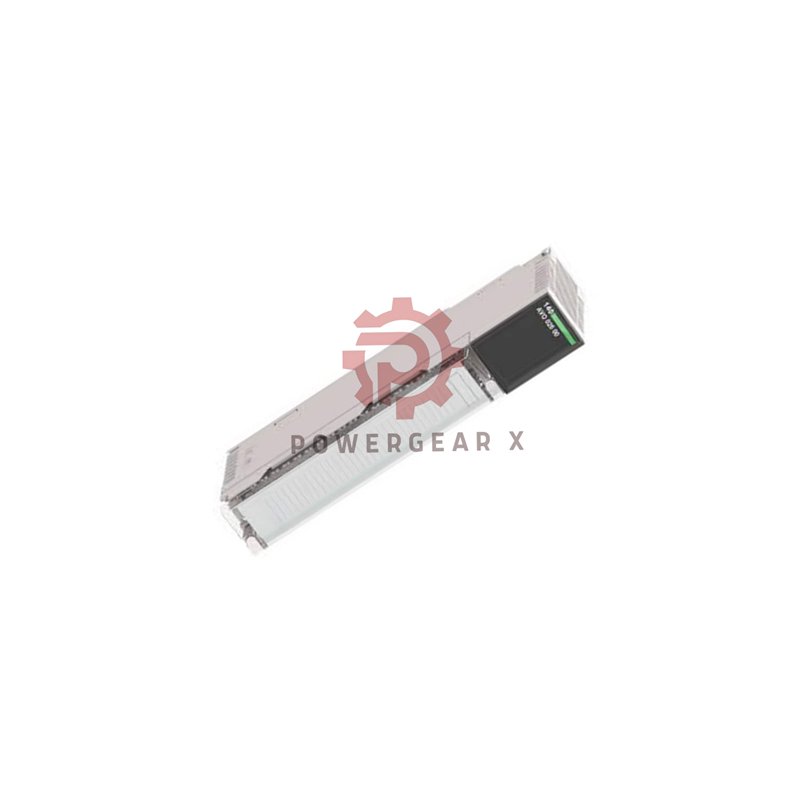

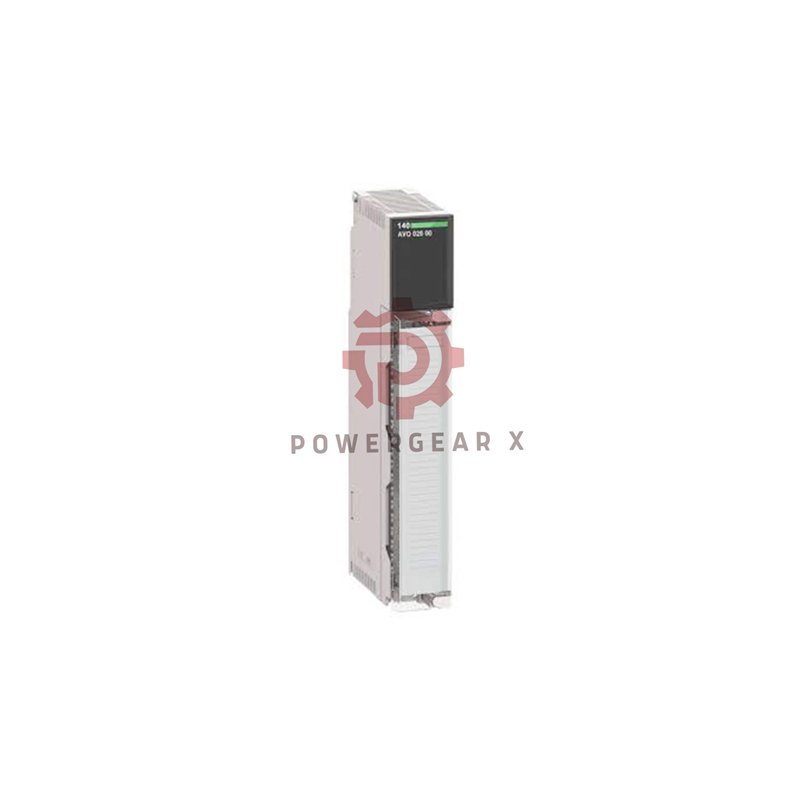

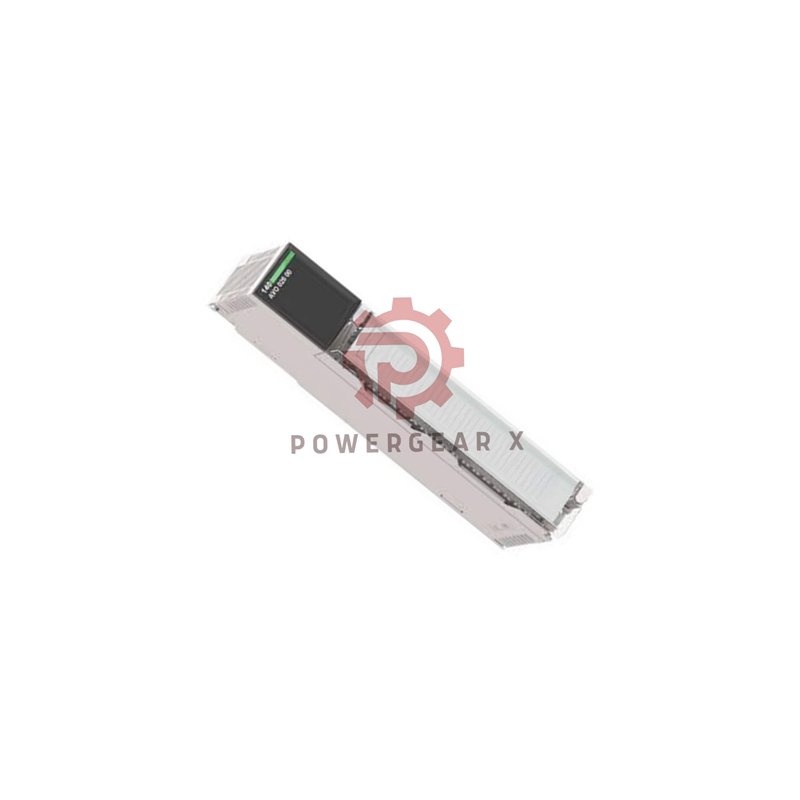

Schneider Electric 140AVO02000C Analog Output Module | 4-Channel

Module Overview

• Schneider Electric Modicon Quantum module.
• Four analog output channels.
• 12-bit resolution for precise control.
• Sends -10 to +10 mA signals.
• Perfect for industrial automation.

Key Specifications

• Basic Info:
  • Part Number: 140AVO02000C
  • Channels: 4 independent outputs.
  • Output Range: -10 mA to +10 mA.
  • Resolution: 12 bits (4096 points).
  • Update Speed: 3 milliseconds.
• Electrical Details:
  • Power from Bus: 700 mA required.
  • Heat Output: Max 4.5 Watts.
  • Internal Resistance: 0.1 Ohm.
  • Fuse Protection: 0.063 mA rating.
• Connection & Safety:
  • Max Cable Length: 400 meters.
  • Channel Isolation: 500V for 1 minute.
  • Addressing: Needs 4 output words.
  • Certification: CE Marked.
• Physical Data:
  • Compact industrial design.
  • Fits standard Quantum rack.

Main Benefits

• Controls valves, drives, and actuators.
• High accuracy reduces process errors.
• Long cable runs save installation cost.
• Strong isolation protects your system.
• Fast update time for quick response.

Package & Service

• One 140AVO02000C analog output module.
• Installation guide included.
• Full 12-month warranty provided.
• Global shipping via FedEx, UPS, DHL.
• Author: Powergear X Automation

Frequently Asked Questions

What devices can this module control?

It can control speed drives, I/P converters, and analog meters. It sends a precise current signal.

What does negative current output mean?

-10 mA to 0 mA can represent a reverse direction or a below-zero setpoint in some processes.

Can I use it with non-Schneider PLCs?

It is designed for Modicon Quantum. Using it with other PLCs may need special interfaces.

How do I handle the 400-meter cable limit?

Use good quality shielded cable. Check for signal loss at long distances in critical applications.

What is a common calibration issue?

Drift over time. Always verify zero and span calibration during regular maintenance checks.

Buying Guide

• Choose this for Modicon Quantum systems.
• You need 4 analog current outputs.
• Your process requires bi-directional control (-10 to +10 mA).
• You value high 12-bit precision.
• Your setup has long signal cable runs.
