Product details
Overview

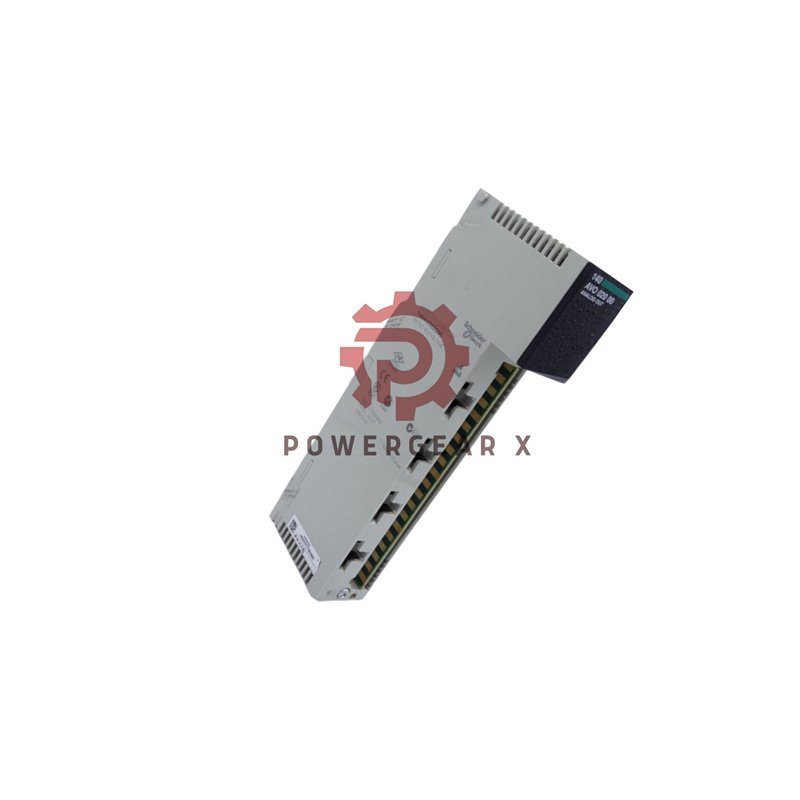

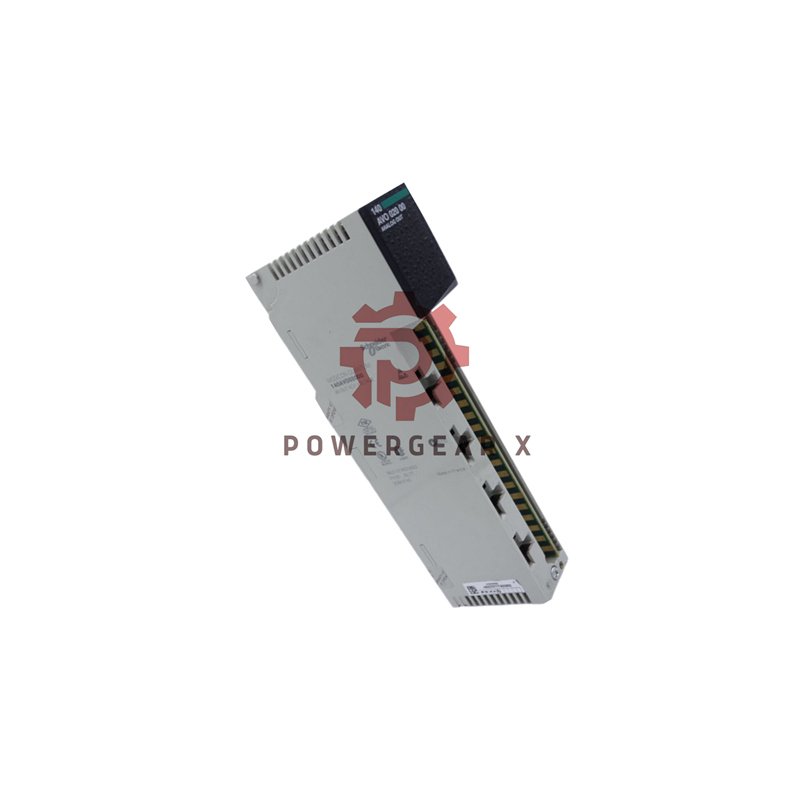

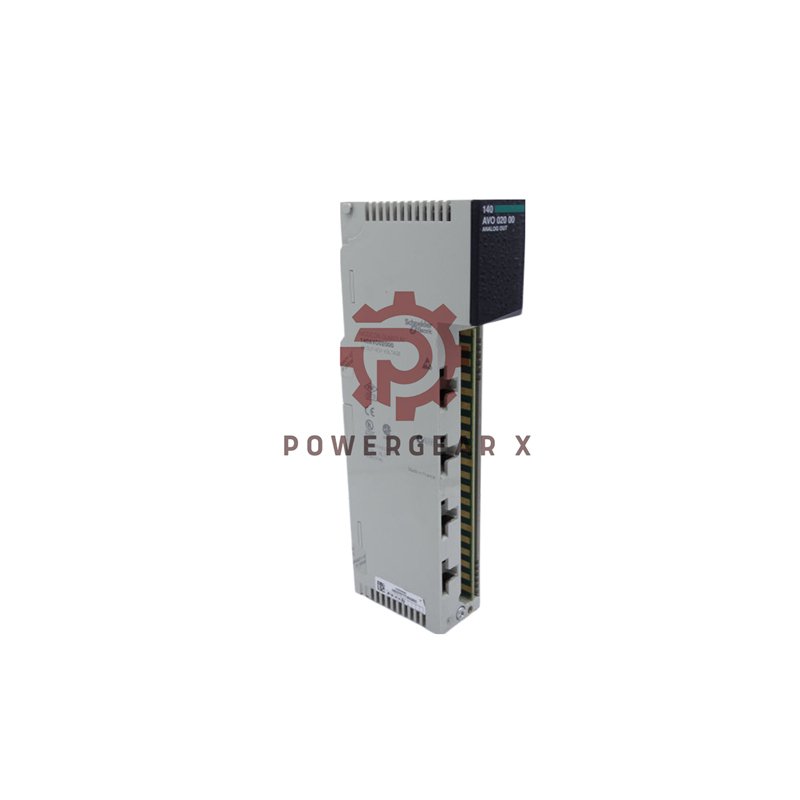

Schneider Electric 140AVO02000 is a high-performance 4-channel analog output module for the Modicon Quantum platform. It delivers precise signal control for critical industrial automation applications with exceptional reliability.
Detailed Technical Specifications
- Brand: Schneider Electric
- Model: 140AVO02000 (Modicon Quantum Series)
- Output Channels: 4 isolated channels
- Voltage Output Ranges: ±10V, ±5V, 0-10V, 0-5V
- Current Output Ranges: 0-20mA, 4-20mA
- Resolution: 12 bits
- Accuracy: ±0.15% of full scale at 25°C (77°F)
- Isolation: 500V AC between channels
- Update Time: 3 ms
- Bus Current: 700 mA
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
Installation Guide
- This module installs directly into a Modicon Quantum PLC rack.
- It requires 4 output words for system addressing and configuration.
- For best performance, keep cable runs under the 400 meter (1312 ft) maximum.
- The module draws 700 mA from the PLC backplane for its operation.
Package Contents & Shipping
- You will receive one (1) 140AVO02000 analog output module.
- Package Size: 31.5 cm x 16.5 cm x 5.0 cm (12.4″ x 6.5″ x 1.97″).
- Package Weight: 0.467 kg (16.5 oz).
- We ship worldwide using reliable carriers like FedEx, UPS, and DHL.
Frequently Asked Questions (FAQ)
- What PLC system is this module for?
It is designed for the Schneider Electric Modicon Quantum platform. - What is the signal output resolution?
The module provides a high-quality 12-bit output signal. - Can it withstand an industrial environment?
Yes, it operates in temperatures from 0°C to 60°C with high noise immunity.
