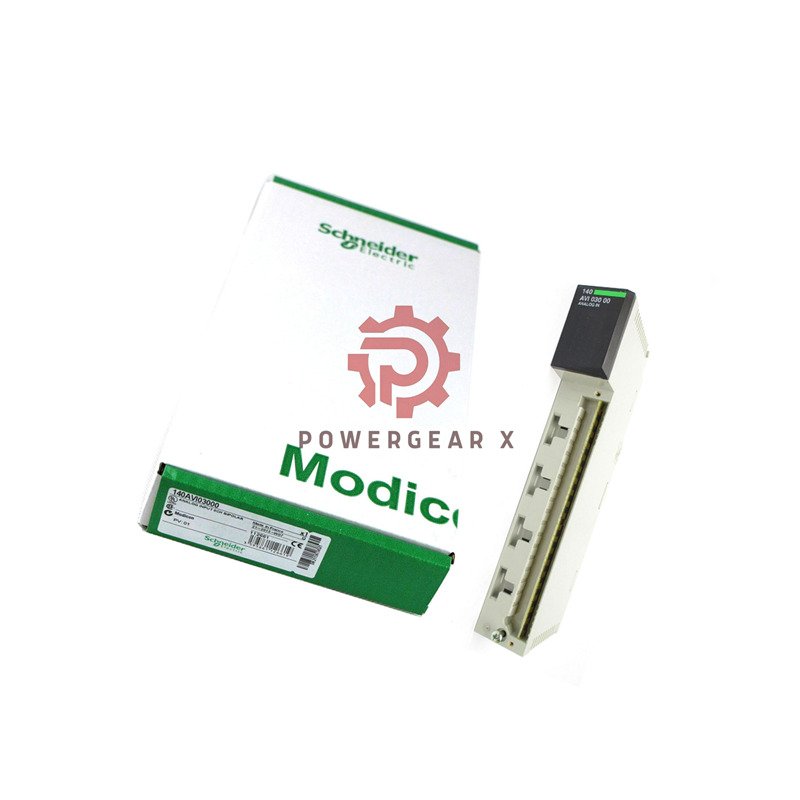

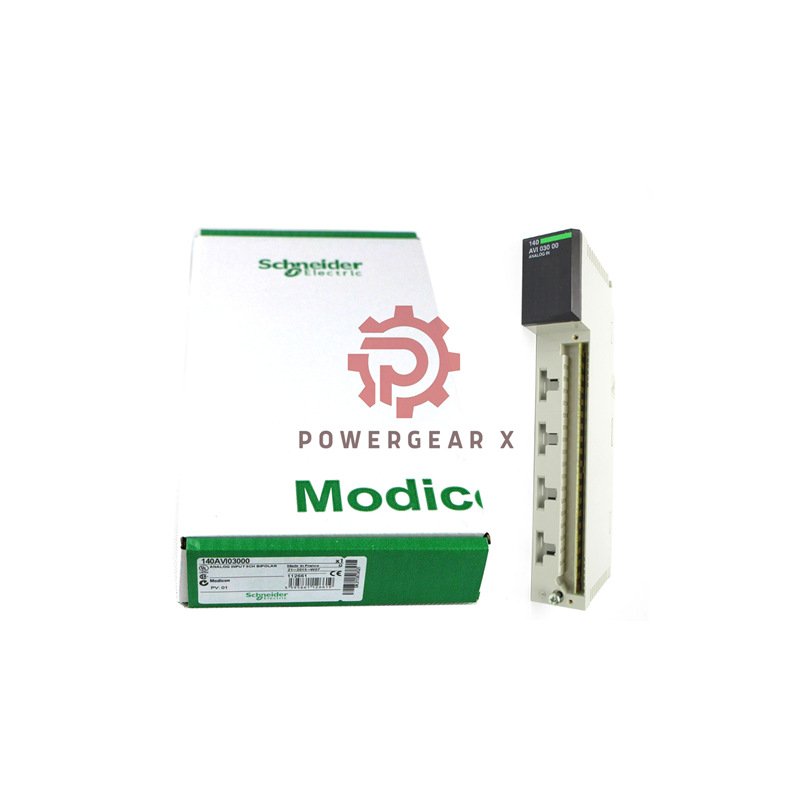

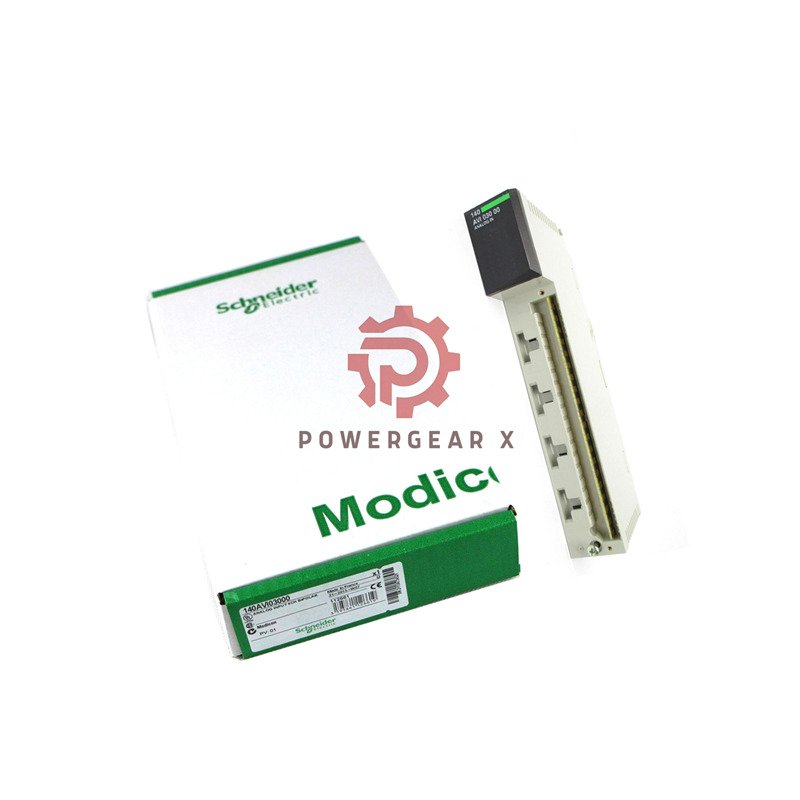

Schneider Electric 140AVI03000 Analog Input Module

The 140AVI03000 is a high-performance 8-channel analog input module from Schneider Electric’s Modicon Quantum series. It delivers precise signal acquisition for industrial automation applications with exceptional accuracy.

Technical Specifications

• Brand: Schneider Electric
• Model: 140AVI03000
• Input Channels: 8 differential analog inputs
• Input Types: ±10V, ±5V, 0-10V, 0-5V, ±20mA, 0-20mA
• Resolution: 16 bits for all input types
• Update Time: 10 milliseconds
• Accuracy: ±0.03% at 25°C (77°F)
• Input Impedance: >20MΩ (voltage), 250Ω (current)
• Max Input: ±50V DC (voltage), 25mA (current)
• Isolation: 500V AC between channels and bus
• Power Consumption: 280mA bus current, 2.2W
• Operating Temperature: 0-60°C (32-140°F)
• Weight: 0.3 kg (0.7 lbs)

Performance Features

• Common Mode Rejection: >80dB at 60Hz
• Linearity Error: ±0.008% of full scale
• Temperature Drift: ±0.0015% of full scale/°C
• Filter: Single pole low pass, 3dB at 847Hz
• Broken Wire Detection: For 4-20mA signals

Environmental Ratings

• Operating Altitude: Up to 5000 meters (16404 feet)
• Relative Humidity: 95% non-condensing
• EMC Resistance: 10V/m at 80-1000MHz
• ESD Protection: 4kV contact, 8kV air discharge
• Certifications: UL 508, CSA C22.2 No 142, FM Class 1 Div 2, cUL

Package Contents

• One 140AVI03000 analog input module
• Installation documentation
• 12-month warranty

Shipping Information

• Shipping Weight: 460g (16.2 oz)
• Package Dimensions: 31.5 x 16.5 x 5.0 cm (12.4 x 6.5 x 1.97 in)
• Shipping Methods: FedEx, UPS, DHL
• Delivery Time: 3-7 business days

Frequently Asked Questions

• What types of signals can this module handle?
  It supports voltage (±10V, ±5V, 0-10V, 0-5V) and current (±20mA, 0-20mA) signals.
• How many input channels does it have?
  It features 8 differential analog input channels.
• What is the resolution of this module?
  It provides 16-bit resolution for all supported signal types.
• Is this module suitable for harsh environments?
  Yes, it has FM Class 1 Division 2 certification for hazardous locations.
• What is the update speed of the inputs?
  It updates all 8 channels every 10 milliseconds.
