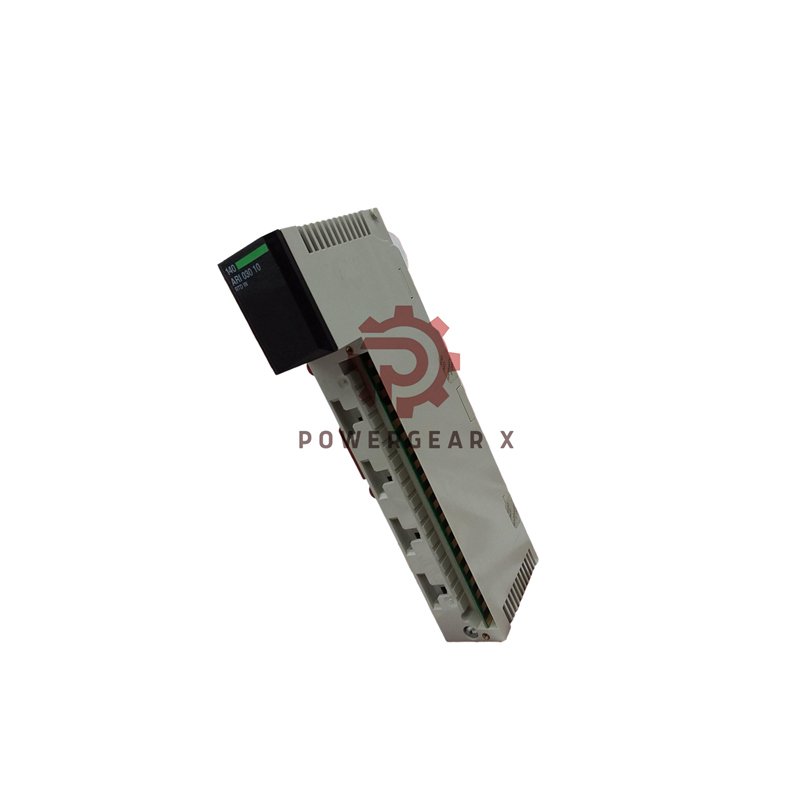

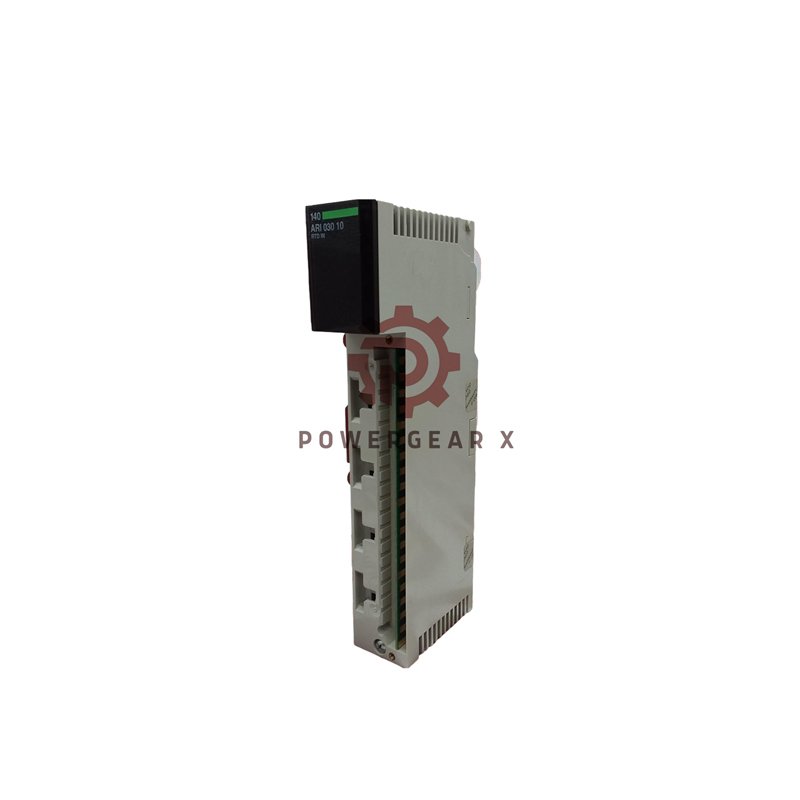

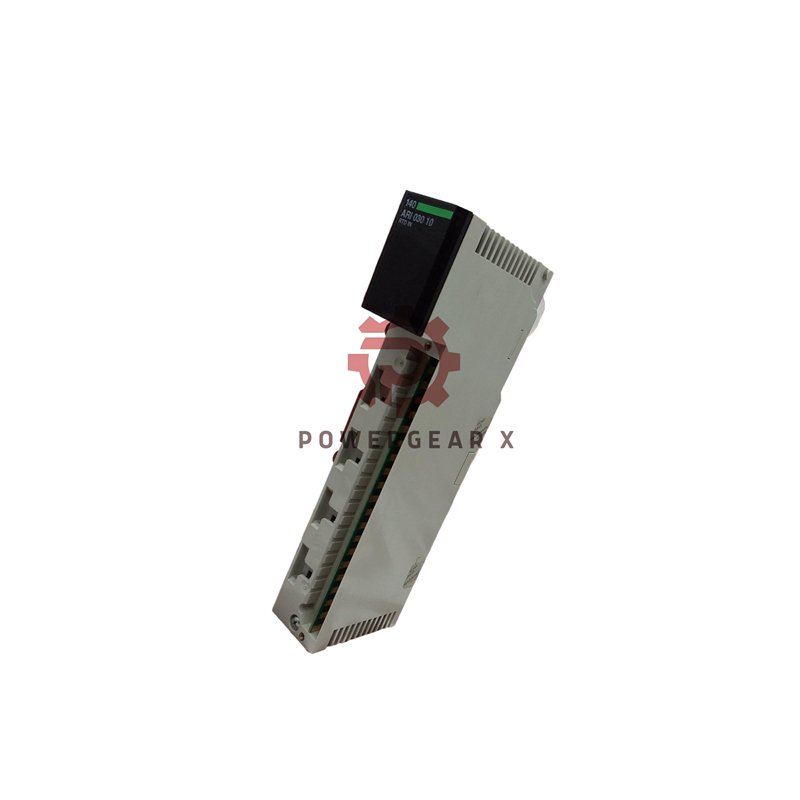

Schneider Electric 140ARI03010 Modicon Quantum RTD Input Module

Schneider Electric 140ARI03010 RTD Input Module

The 140ARI03010 is a precision RTD input module for temperature monitoring. It supports various sensor types with high accuracy. This module is ideal for industrial process control applications.

Key Benefits

• 8-channel RTD and temperature sensor input
• Supports Pt100, Pt200, Pt500, Pt1000 sensors
• Supports Ni100, Ni200, Ni500, Ni1000 sensors
• High accuracy: ±0.1°C at 25°C
• Broken wire detection and fault monitoring
• LED status indicators for all channels
• Wide temperature range: -200°C to 850°C

Technical Specifications

• Brand: Schneider Electric
• Model: 140ARI03010
• Input Channels: 8 differential
• Resolution: 13 bits
• Accuracy: ±0.1°C at 25°C
• Update Time: 640ms (2/4 wire), 1200ms (3 wire)
• Isolation: 1780V AC/2500V DC
• Power Consumption: 1W
• Operating Temperature: 0°C to 60°C
• Input Impedance: ≥10 MΩ
• Certifications: UL 508, CSA, FM Class 1 Div 2

Installation & Support

• Easy installation in Modicon Quantum systems
• Requires 9 input words for addressing
• 12-month warranty
• Global shipping via FedEx, UPS, DHL
• Suitable for harsh industrial environments

Frequently Asked Questions

• What sensor types does it support?
  Pt100, Pt200, Pt500, Pt1000 and Ni100, Ni200, Ni500, Ni1000.
• How many temperature channels?
  8 differential input channels.
• What is the measurement accuracy?
  ±0.1°C at 25°C reference temperature.
• Does it provide fault detection?
  Yes, including broken wire detection.
• What isolation voltage does it provide?
  1780V AC and 2500V DC isolation.
