Product details

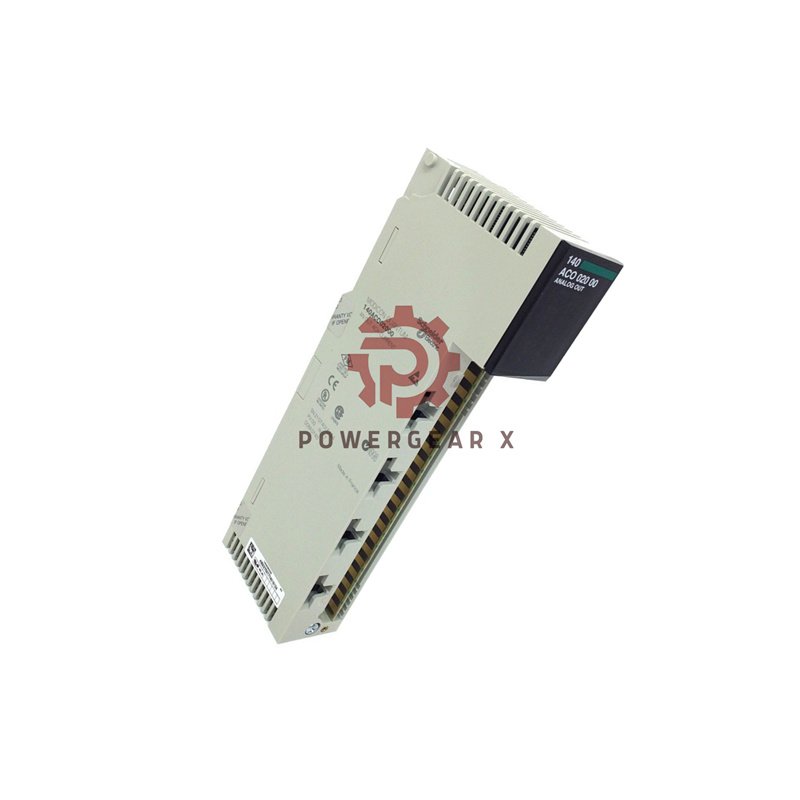

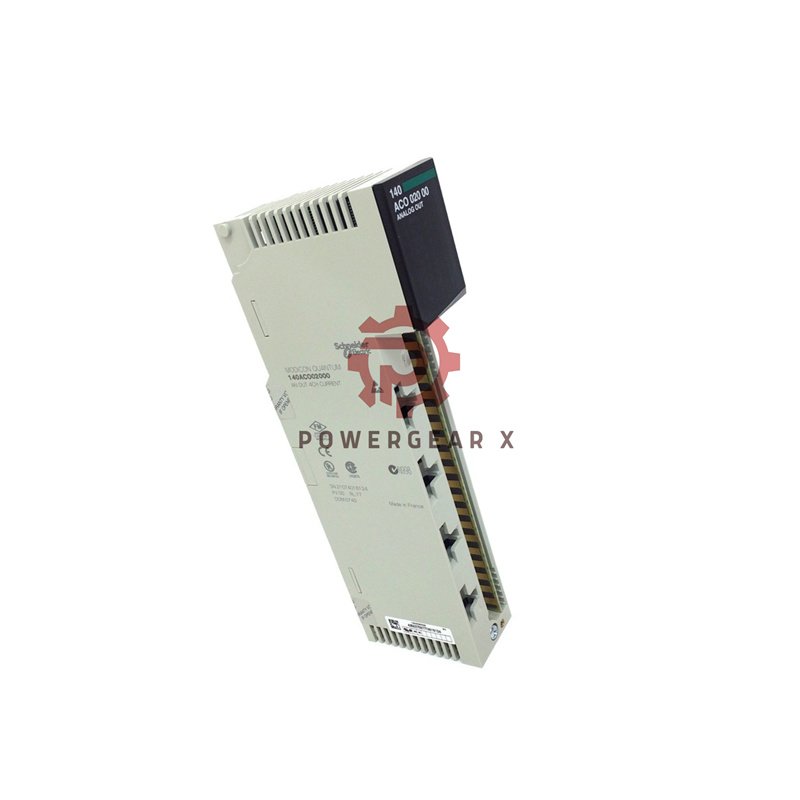

Precision Control with Schneider Electric 140ACO02000 Analog Output Module
The Schneider Electric 140ACO02000 is a high-performance analog output module for Modicon Quantum systems. It delivers precise 4-20mA current signals for industrial automation applications. This module ensures accurate control of processes in demanding environments.
Detailed Technical Specifications
- Brand & Model: Schneider Electric 140ACO02000
- Output Type: 4 channels, 4-20mA bipolar current
- Resolution: 12-bit (0-4096 counts)
- Accuracy: ±0.20% of full scale at 25°C
- Isolation: 500V AC between channels
- Update Time: 3ms
- Settling Time: 900μs to ±0.1% of final value
- Power Consumption: 480mA bus current, 5.3W dissipation
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Certifications: FM Class 1 Div 2, cUL, CE
- Weight: 0.3kg (0.7lb)
- EMC Immunity: 10V/m at 80-2000MHz per IEC 801-3
Package & Shipping Information
- Includes one (1) 140ACO02000 analog output module
- Protected by 12-month manufacturer warranty against defects
- Shipped via global carriers: FedEx, UPS, or DHL for reliable delivery
- Package dimensions: 31.5 × 16.5 × 4.8 cm (12.4 × 6.5 × 1.89 inches)
Frequently Asked Questions
- Q: What type of signals does this module output?
A: It provides four 4-20mA current output signals with 12-bit resolution. - Q: Can this module operate in hazardous locations?
A: Yes, it’s FM certified for Class 1 Division 2 hazardous environments. - Q: What is the resolution of the analog outputs?
A: The module provides 12-bit resolution (0-4096 counts) for precise control. - Q: How is module status monitored?
A: It features 10 LED indicators (green and red) for communication, faults, and channel status. - Q: What power supply does the module require?
A: It operates on 12-30V DC external power with 480mA bus current requirement.
