Rockwell Automation 1785-L86B Processor Module – High-Speed PLC-5

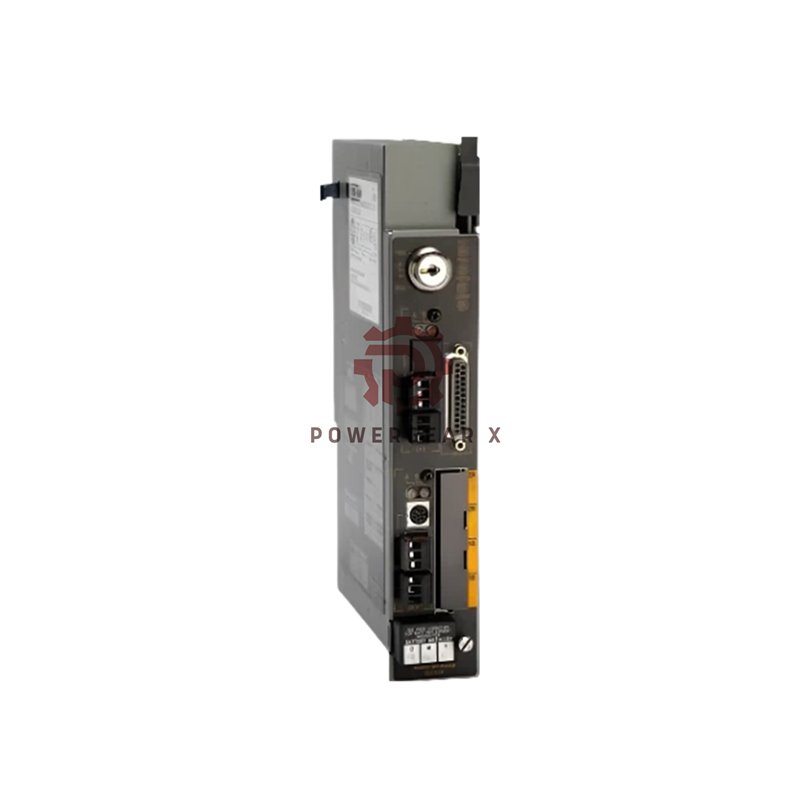

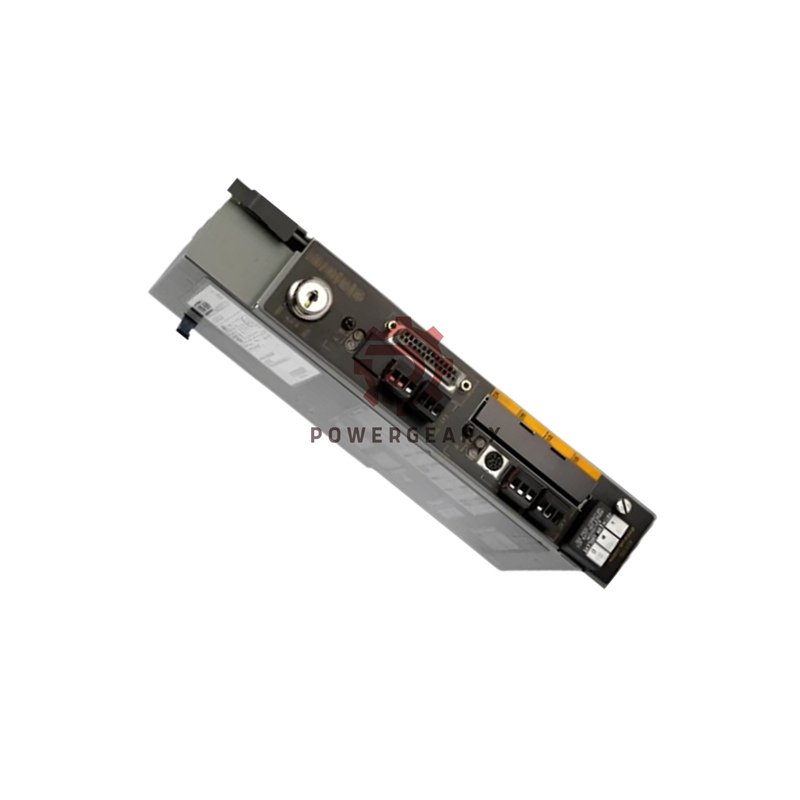

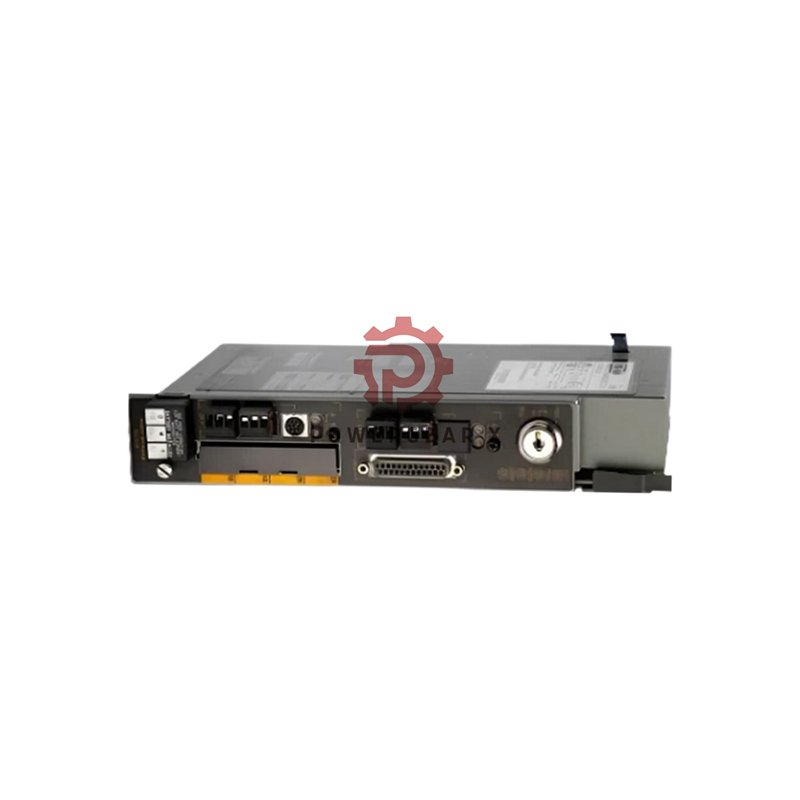

Allen-Bradley 1785-L86B PLC-5/86 Standard Processor

Discover the powerful 1785-L86B processor from Allen-Bradley. This high-performance controller delivers exceptional speed and reliability for industrial automation. It handles complex control tasks with ease.

📊 Technical Specifications

• Brand: Allen-Bradley / Rockwell Automation
• Model: 1785-L86B
• Series: PLC-5
• Memory Capacity: 100K Words (Battery-Backed)
• Max I/O: 3072 Inputs & Outputs
• Backplane Current: 3.3A @ 5V DC
• Communication Ports: 4 Data Highway Plus/Remote I/O ports
• Max I/O Chassis: 93 Total, 32 per I/O Link
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Vibration Resistance: 2G @ 10-500Hz
• Certifications: UL, CE, CSA, C-TICK

📦 Package Contents

• 1 x 1785-L86B Processor Module
• Installation Documentation

⚙️ Setup & Compatibility

• Fits standard 1771 I/O chassis
• Works with 1771 series I/O modules
• Supports multiple programming languages
• LED indicators for status monitoring

🚚 Shipping & Warranty

• Fast worldwide shipping via FedEx, UPS, DHL
• 12-month warranty included

❓ Frequently Asked Questions

• 💡 How much memory does this processor have?
  It features 100K words of battery-backed SRAM memory.
• 💡 What is the maximum I/O capacity?
  It supports up to 3072 I/O points in any mix.
• 💡 Does it have protected memory?
  Yes, it includes enhanced protected memory security.
• 💡 What communication ports are available?
  It features 4 Data Highway Plus/Remote I/O ports.
• 💡 What is the operating temperature range?
  It operates from 0°C to 60°C (32°F to 140°F).
