Product details

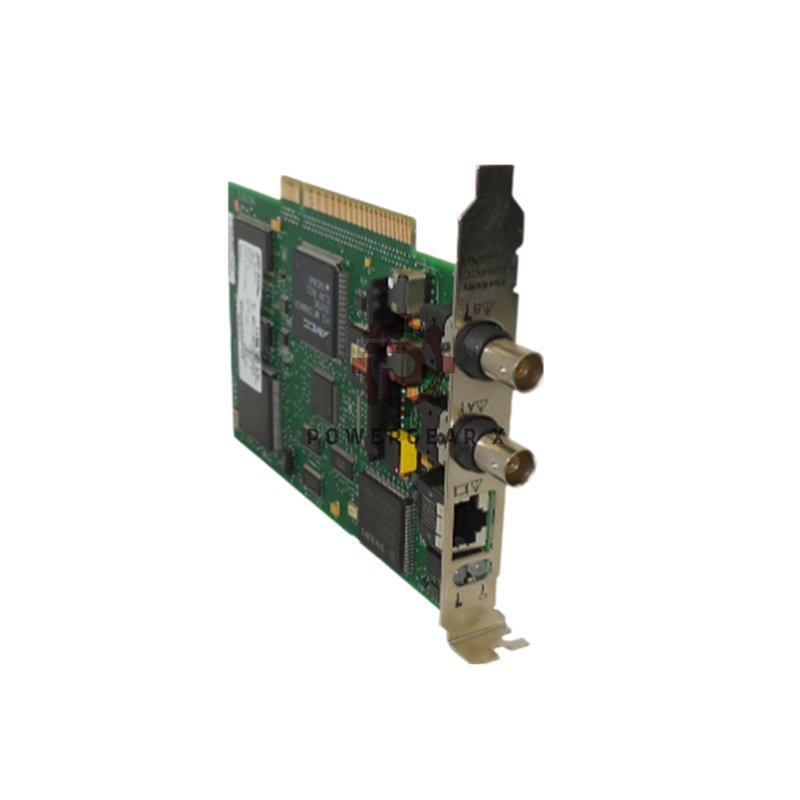

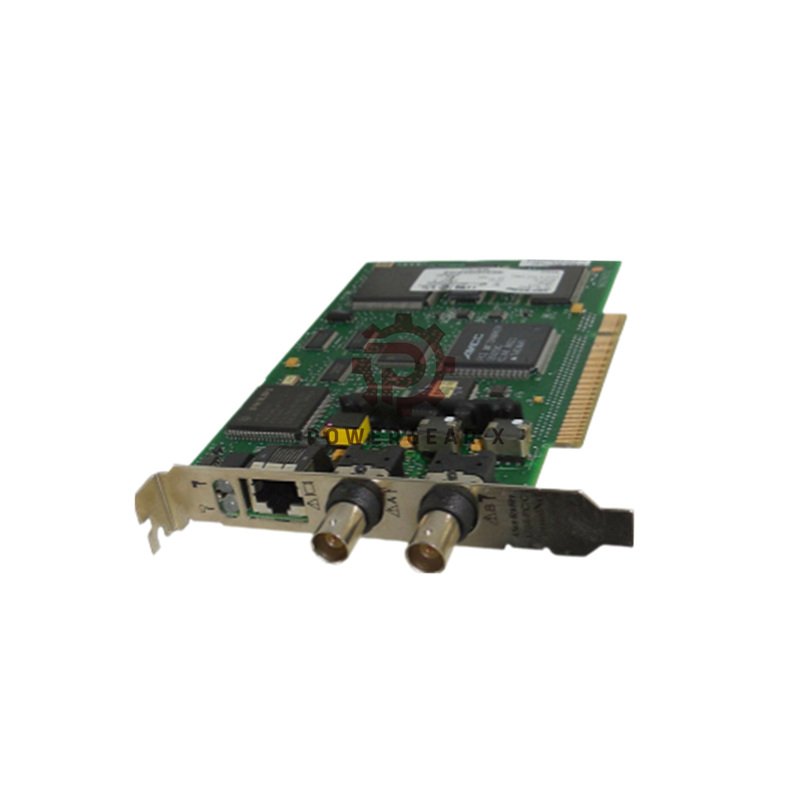

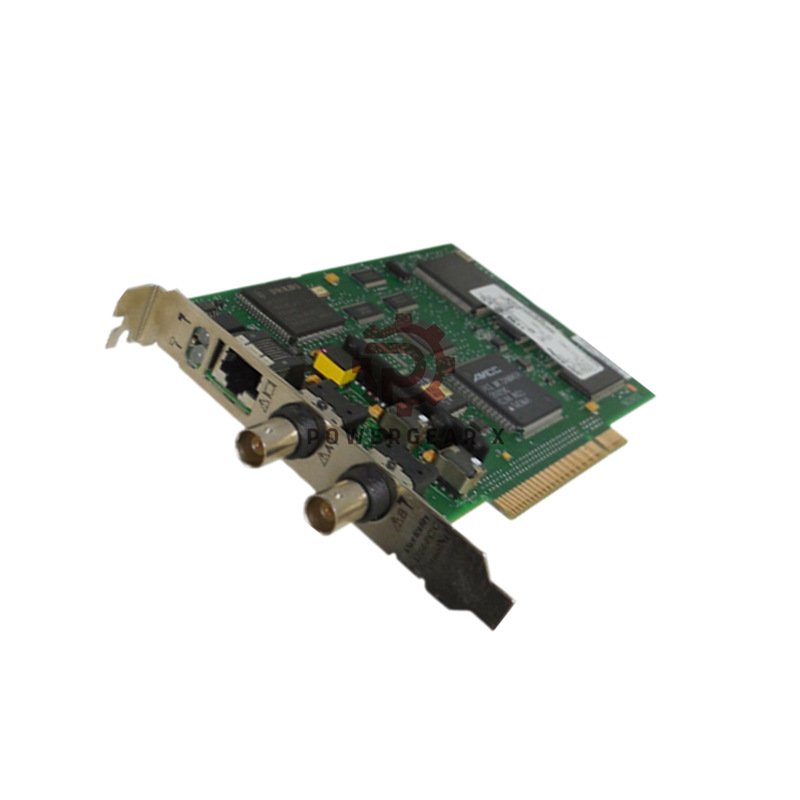

Allen-Bradley 1784-PCICS ControlNet PCI Communication Card
The Allen-Bradley 1784-PCICS enables seamless ControlNet connectivity for industrial computers. This 1784-PCICS card bridges your PC with Rockwell Automation ControlNet networks.
📊 Technical Specifications
- Interface Type: PCI/PCI-X compatible
- Bus Compatibility: 32-bit and 64-bit slots
- Voltage Support: 3.3V and 5V PCI slots
- Network Ports: RJ45 + BNC connectors
- Dimensions: 107 × 165 mm (4.2 × 6.5 in)
- Operating Temp: 0 to 50°C (32 to 122°F)
- Data Transfer Rate: 5 Mbps ControlNet speed
- Compatibility: PLC-5, ControlLogix systems
- Protocol: ControlNet CNET protocol
- OS Support: Windows 2000/XP compatible
🔧 Installation & Setup
- 📋 Shut down computer before installation
- 🛠️ Select available PCI or PCI-X slot
- ⚡ Follow ESD protection procedures
- 🔌 Secure card with mounting bracket
- 💻 Install drivers and configuration software
- 🌐 Connect to ControlNet via BNC or RJ45
- ✅ Verify LED status indicators
📦 Package Contents
- 📦 1784-PCICS ControlNet PCI card
- 📖 Installation manual
- 🖥️ Driver software (CD/download)
- 🔩 Mounting bracket
🛡️ All products include 12-month warranty
🚚 We ship worldwide via FedEx, UPS, and DHL
Frequently Asked Questions
- 🤔 What operating systems support this card?
Windows 2000 and Windows XP are fully supported with drivers. - 🔌 Can I use both BNC and RJ45 ports simultaneously?
No, you must use either BNC or RJ45 connection, not both together. - 💻 Will this work in modern computers with PCIe slots?
No, this requires traditional PCI or PCI-X slots only. - 🌐 What is the maximum network distance supported?
Up to 1000 meters with proper cabling and repeaters. - 🛠️ Do I need special software to configure this card?
Yes, Rockwell Automation RSNetWorx software is required for configuration.
