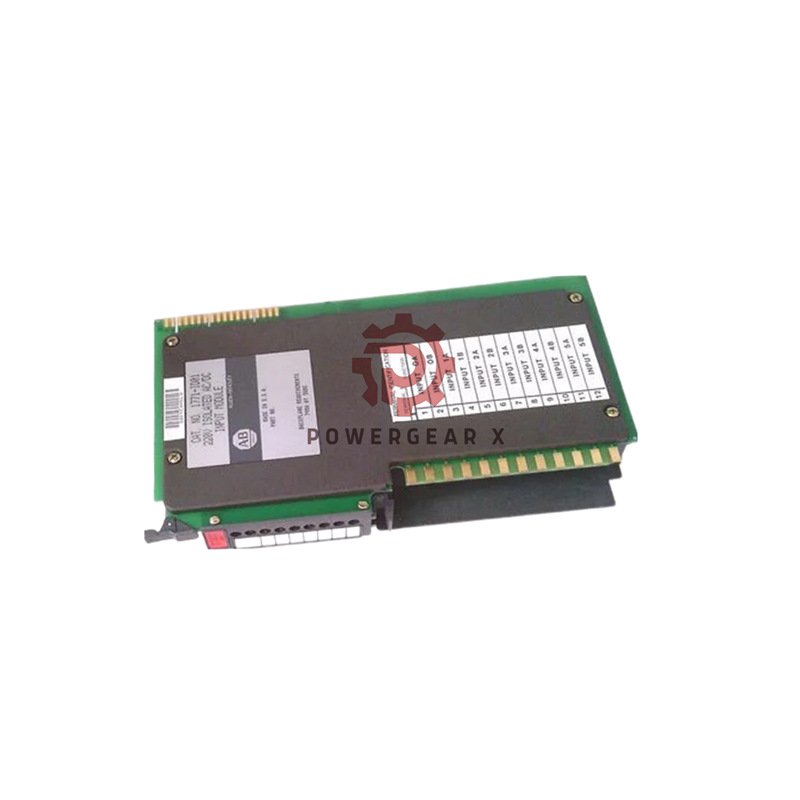

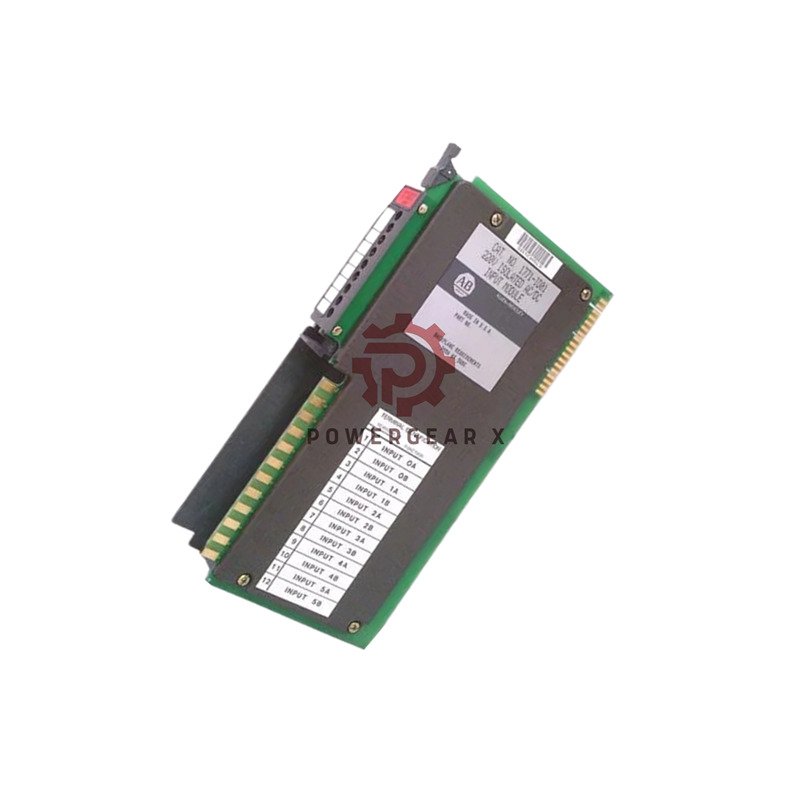

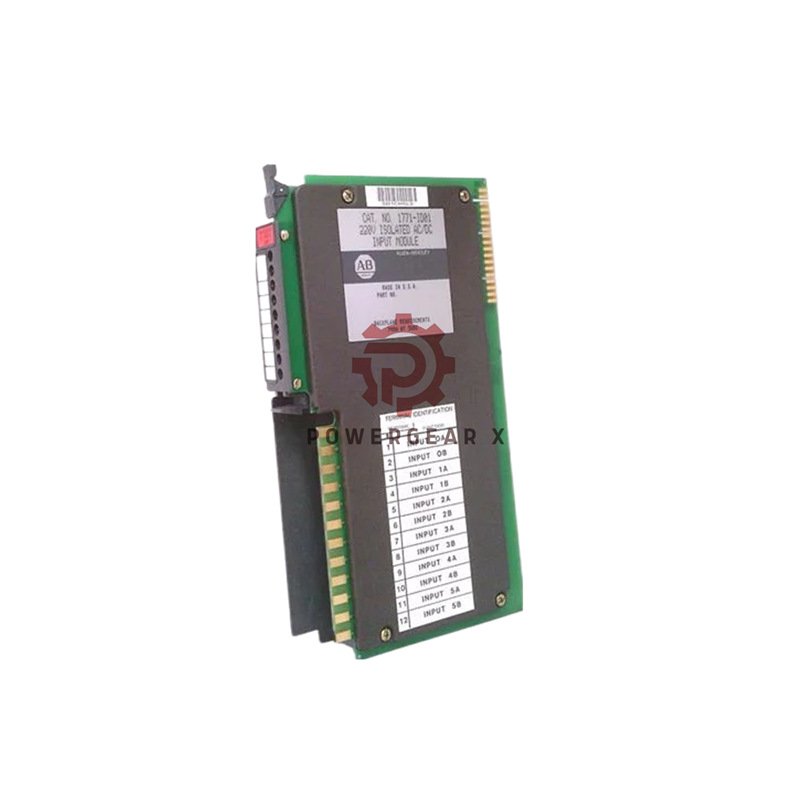

Rockwell Automation 1771-ID01 Isolated Digital Input Module | 6-Channel

Allen-Bradley 1771-ID01: High-Voltage Isolated AC/DC Input Module

The 1771-ID01 by Rockwell Automation is a robust 6-channel input module. It handles both high-voltage AC and DC signals for industrial automation systems. This module offers superior isolation and reliability in harsh environments.

Key Technical Specifications

• Manufacturer & Brand: Rockwell Automation | Allen-Bradley
• Complete Model Number: 1771-ID01
• Input Type: Isolated Digital AC/DC
• Number of Channels: 6 isolated inputs
• AC Operating Range: 184-276V AC
• DC Operating Range: 18-276V DC
• Backplane Current: 74 mA
• Maximum Off-State Current: 0.7 mA (AC) | 1.0 mA (DC)
• Signal Response Time: 10-30 ms (ON), 10-30 ms (OFF)
• Dimensions: 89 × 165 × 51 mm (3.5″ × 6.5″ × 2.0″)

Packaging Contents

• 1 × Allen-Bradley 1771-ID01 Input Module
• Installation documentation
• Shipping Method: FedEx, UPS, or DHL available

Frequently Asked Questions

• Q: Can I mix AC and DC signals on the same module?
  A: Yes, the 1771-ID01 supports mixed signal types across its 6 channels.
• Q: What protection features does this module include?
  A: It provides isolation protection and wide voltage tolerance.
• Q: Is this module compatible with modern ControlLogix systems?
  A: It is designed for PLC-5 systems; compatibility may require additional interfaces.
