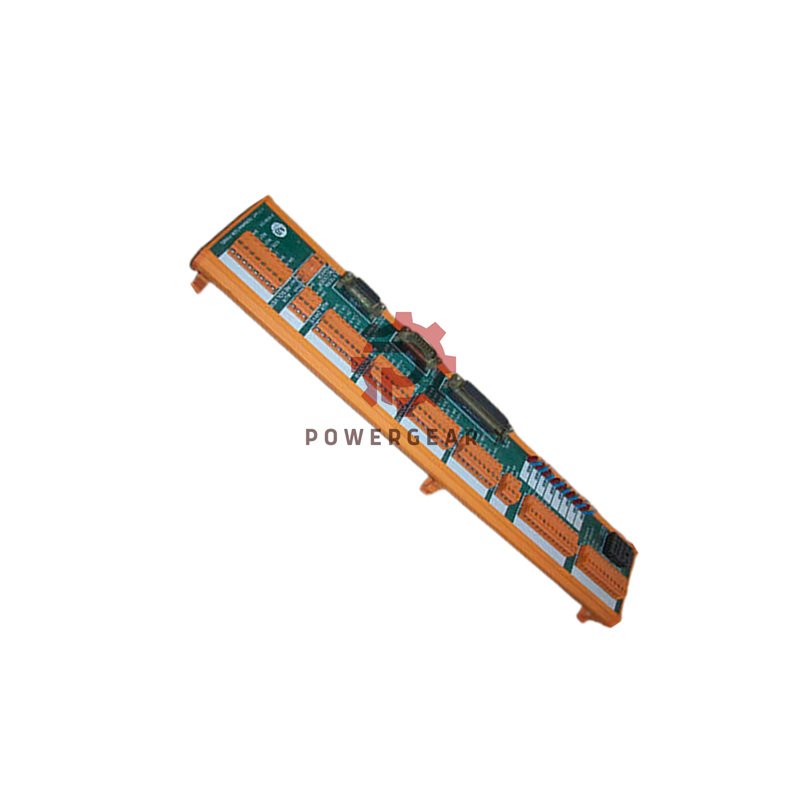

Allen-Bradley 1771-HT Termination Panel Module
The 1771-HT from Allen-Bradley provides reliable connection and troubleshooting for IMC 12X motion control systems. This termination panel simplifies wiring and improves system maintenance.
Technical Specifications
- Brand: Allen-Bradley (Rockwell Automation)
- Model: 1771-HT
- Series: PLC-5
- Module Type: Termination Panel
- Input Channels: 4 fast inputs (FI1-FI4)
- Output Channels: 4 fast outputs (FO1-FO4)
- Connector Type: Pluggable screw-type
- Communication: RS-232 interface
- LED Indicators: I/O status monitoring
- E-stop Capacity: Supports daisy-chain up to 3 controllers
- Compatibility: IMC 12X series motion controllers
Compatibility Information
- Designed for Allen-Bradley IMC 12X motion controllers
- Works with 1771 series servo controller modules
- Supports both resolver and encoder feedback systems
- Integrates with PLC-5 control systems
Packaging List
- 1x 1771-HT Termination Panel Module
- Installation and user manual
- Required mounting hardware
- Shipping via FedEx, UPS, or DHL
Frequently Asked Questions
- How many controllers can connect to one E-stop string?
This panel supports daisy-chaining up to three servo controllers. - What types of feedback systems does it support?
It works with both encoder and resolver feedback devices. - Does it include status indicators?
Yes, it features LED indicators for all I/O channels. - What motion controllers is this panel designed for?
It’s specifically designed for IMC 12X series motion controllers. - What connector types does it use?
It uses D-shell and pluggable screw-type connectors.
