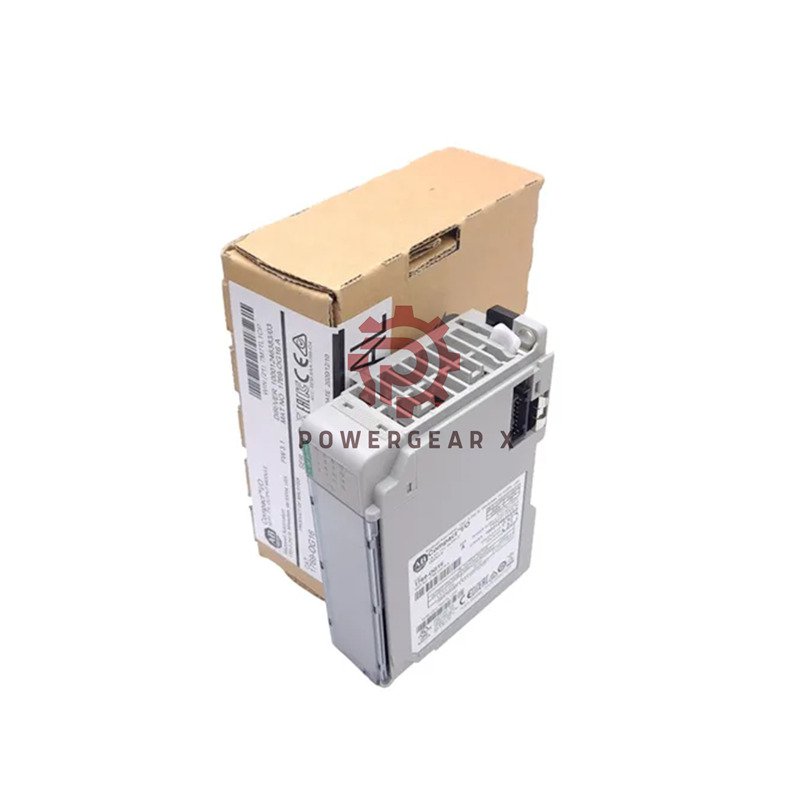

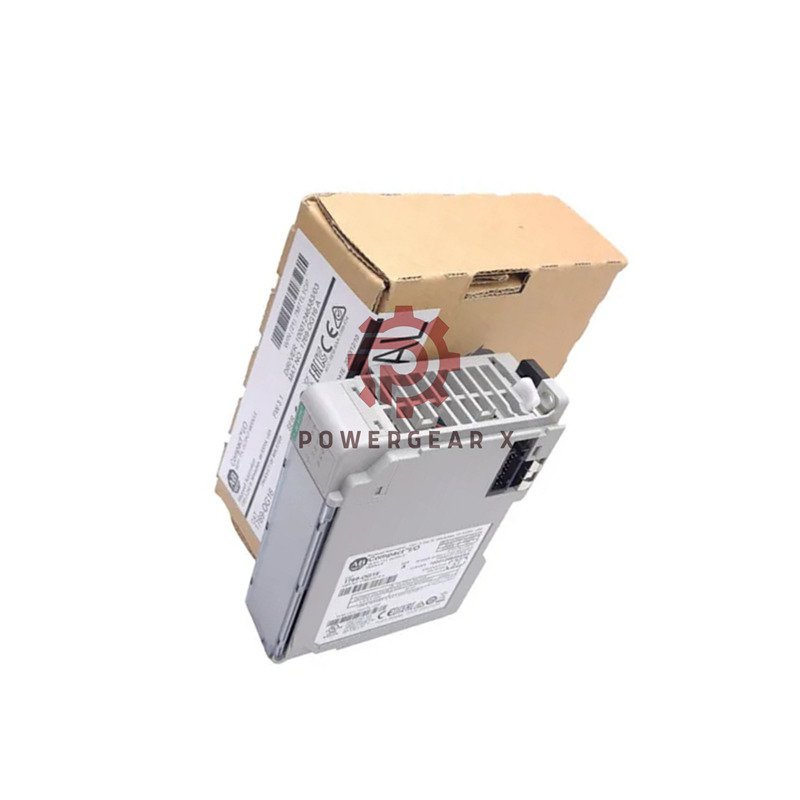

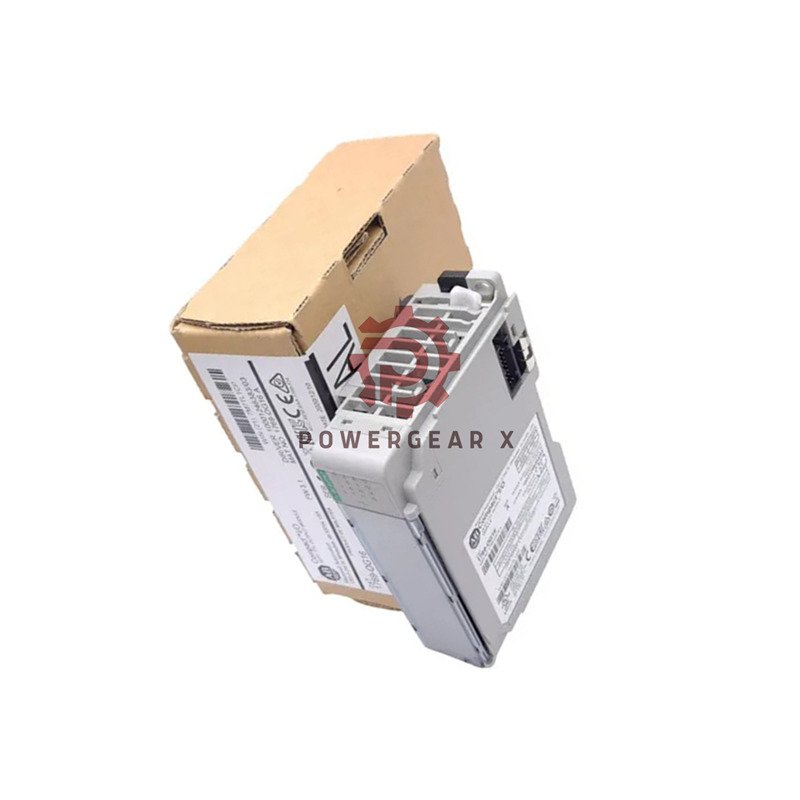

Allen-Bradley 1769-OG16: Compact TTL Output Module
The 1769-OG16 delivers precise TTL-level output control for digital applications. This compact module provides sixteen 5VDC output channels in minimal space. It integrates seamlessly with CompactLogix control systems. The 1769-OG16 offers reliable performance for low-voltage digital interface requirements.
Technical Specifications
- Manufacturer: Allen-Bradley/Rockwell Automation
- Model Number: 1769-OG16 Series A/B
- Output Type: TTL compatible digital outputs
- Output Channels: 16 individual TTL outputs
- Operating Voltage: 4.5-5.5V DC precision range
- On-State Voltage: 0-0.4V DC guaranteed
- Off-State Voltage: 4.5-5.5V DC guaranteed
- Current Rating: 24mA maximum per point
- Minimum Load: 0.15mA required
- Undefined Range: 0.4-4.5V DC (avoid this range)
Physical Characteristics
- Compact dimensions: 4.7 x 1.4 x 3.4 inches
- Lightweight design: 2 pounds shipping weight
- Open-style enclosure requires protected installation
- DIN rail or panel mounting options
- Copper wire requirement: 90°C rating
- Wire sizes: 22-14 AWG solid, 22-16 AWG stranded
Shipping & Support
- Worldwide shipping via FedEx, UPS, and DHL
- Package weight: 2 pounds (0.9 kg)
- Package dimensions: 8x8x5 inches
- 12-month warranty included
- Technical support available for installation
Frequently Asked Questions
- Q: What does TTL compatibility mean?
A: It means the module works with standard 5V logic levels used in digital electronics. - Q: What is the undefined voltage range?
A: Between 0.4-4.5V, output state is not guaranteed – avoid this range. - Q: What controllers support this module?
A: It works with Allen-Bradley CompactLogix control systems. - Q: What is the maximum current per output?
A: 24mA maximum per individual output point. - Q: Why is there a minimum load requirement?
A: 0.15mA minimum ensures proper circuit operation and signal detection.
