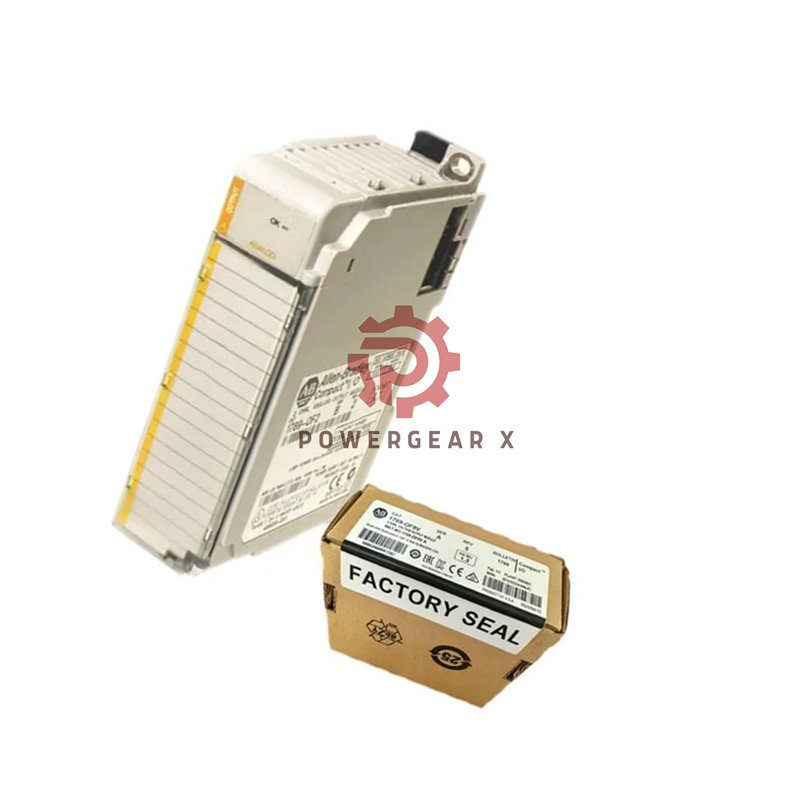

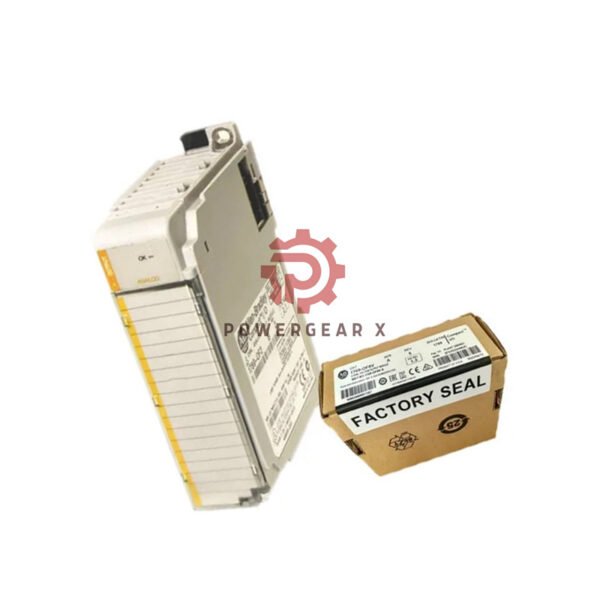

Allen-Bradley 1769-OF8V Analog Voltage Output Module
The 1769-OF8V module delivers precise voltage control signals. It works with CompactLogix and MicroLogix systems. This powerful module offers eight output channels. It is perfect for complex automation applications.
Complete Technical Specifications
- Brand: Allen-Bradley (Rockwell Automation)
- Model: 1769-OF8V (Series A & B)
- Channels: 8 single-ended voltage outputs
- Voltage Ranges: ±10V, 0-10V, 0-5V, 1-5V DC
- Resolution: 16-bit + sign (bipolar)
- Accuracy: ±0.5% full scale @ 25°C (77°F)
- Conversion Rate: 5ms for all channels
- Current Draw: 145mA @ 5V DC, 135mA @ 24V DC
- Power Dissipation: 2.16 Watts
- Wire Size: 22-14 AWG (solid), 22-16 AWG (stranded)
Package Contents
- One 1769-OF8V Analog Output Module
- Installation Documentation
- Required Mounting Hardware
Warranty & Global Shipping
- 12-month warranty included
- Worldwide shipping via FedEx, UPS, and DHL
- Express shipping options available
Expert Questions Answered
- What controllers work with this module? Compatible with CompactLogix and MicroLogix 1500 systems
- Can all eight channels operate simultaneously? Yes, all channels work at full performance together
- What is the output impedance? Less than 1 Ohm for stable signal output
- Does it include protection features? Yes, short-circuit and over-voltage protection on all outputs
- What is the difference between Series A and B? Series B allows external 24VDC power supply connection
