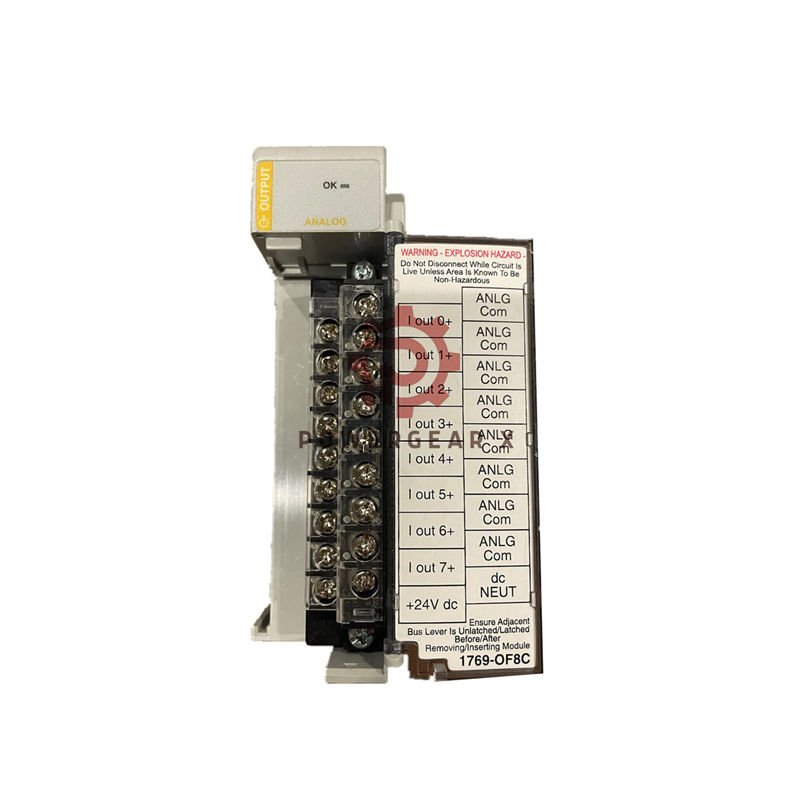

Allen-Bradley 1769-OF8C Analog Output Module
The 1769-OF8C controls industrial devices with precise current signals. It works with CompactLogix and MicroLogix control systems. This module sends accurate signals to valves, drives and meters. It helps automate complex industrial processes easily.
Detailed Specifications
- Brand: Allen-Bradley (Rockwell Automation)
- Model: 1769-OF8C
- Output Type: 8 current outputs
- Signal Ranges: 0-20mA or 4-20mA configurable
- Resolution: 16-bit (0.323 µA/bit)
- Accuracy: ±0.35% at 25°C
- Response Time: <5ms for all channels
- Max Load Resistance: 500 Ohms
- Power Consumption: 145mA @ 5VDC, 185mA @ 24VDC
- Protection: Short-circuit and open-wire detection
- Operating Temperature: 0° to 60°C (32° to 140°F)
- Weight: 0.28 kg (0.62 lb)
- Wire Size: 22-14 AWG solid, 22-16 AWG stranded
Setup & Configuration
- Install in 1769 or 1768 CompactLogix chassis
- Use shielded cable for noise protection
- Configure output range via software
- Check load resistance before connection
- Allow proper ventilation around module
Package Includes
- 1769-OF8C Analog Output Module
- Installation documentation
- 12-month warranty
- Worldwide shipping via FedEx, UPS, DHL
Technical Questions
- What devices can this module control? It drives control valves, VFDs, positioners, and panel meters.
- How fast does it respond to control signals? It responds in less than 5ms for all channels.
- Does it need field calibration? No, the module maintains accuracy without field calibration.
- Can it detect wiring problems? Yes, it detects open wires and short circuits automatically.
- What controllers are compatible? Works with CompactLogix 1769/1768 and MicroLogix 1500 systems.
