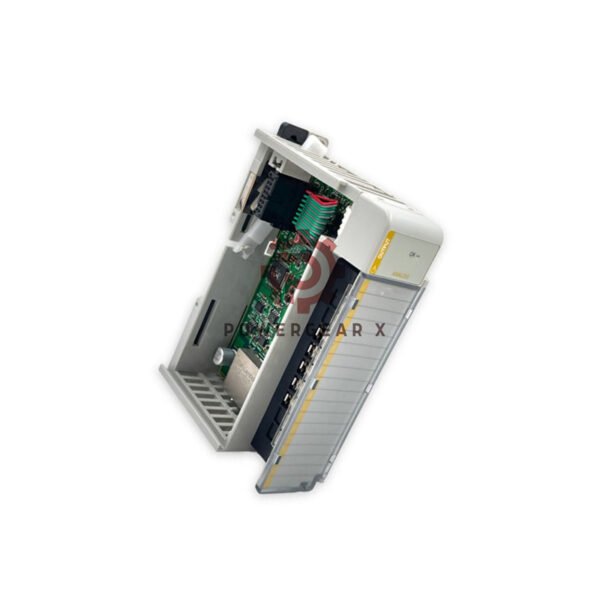

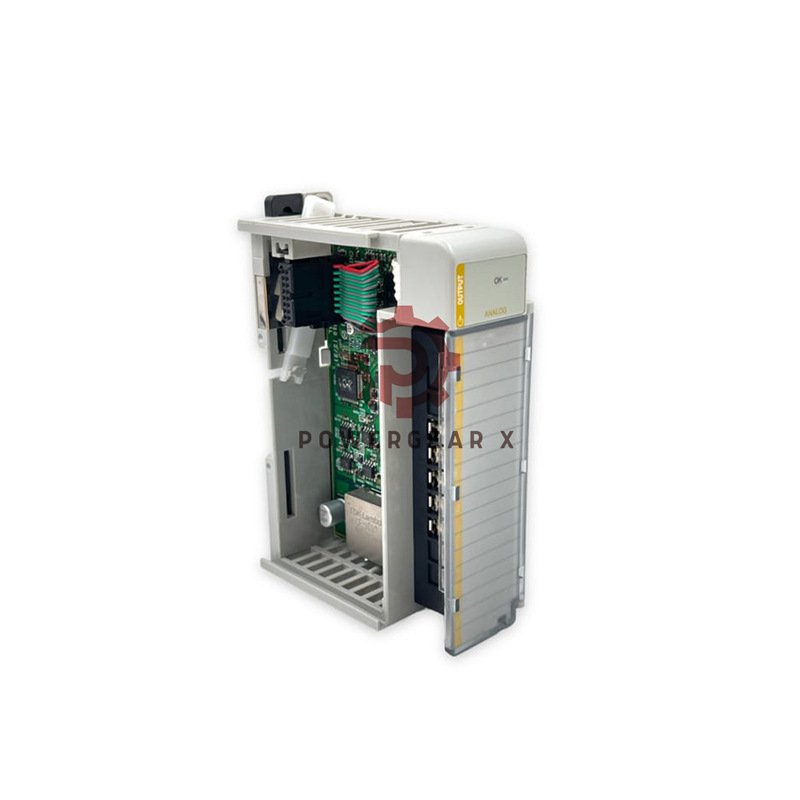

Allen-Bradley 1769-OF4: Precision Analog Output Module
The 1769-OF4 delivers precise analog control for industrial automation systems. This versatile module provides four configurable output channels. It works seamlessly with CompactLogix and MicroLogix 1500 controllers. The 1769-OF4 ensures accurate signal generation for various control applications.
Technical Specifications
- Manufacturer: Allen-Bradley/Rockwell Automation
- Model Number: 1769-OF4 Series A/B
- Output Channels: 4 single-ended configurable outputs
- Voltage Ranges: ±10V, 0-10V, 0-5V, 1-5V DC
- Current Ranges: 0-20mA, 4-20mA standard signals
- Resolution: 15-bit plus sign (bipolar/unipolar)
- Conversion Rate: 2.5 milliseconds per channel
- Accuracy: ±0.05% non-linearity at 25°C
- Current Draw: 120mA @ 5.1VDC, 170mA @ 24VDC
- Power Dissipation: 2.86 Watts maximum
Installation & Compatibility
- Works with CompactLogix control systems
- Compatible with MicroLogix 1500 controllers
- Power supply distance rating: 8 modules
- Uses standard 1769-RTBN18 terminal block
- DIN rail or panel mounting options
- Copper wire requirement: 22-14 AWG solid, 22-16 AWG stranded
Shipping & Support
- Global shipping via FedEx, UPS, and DHL
- Package weight: 2 pounds (0.9 kg)
- Dimensions: 8 x 8 x 5 inches
- 12-month warranty included
- Technical support available for installation
Frequently Asked Questions
- Q: What signals can this module output?
A: It supports voltage (±10V, 0-10V, 0-5V, 1-5V) and current (0-20mA, 4-20mA) signals. - Q: Does it require field calibration?
A: No, hardware design guarantees calibration without field adjustment. - Q: What controllers work with this module?
A: It works with CompactLogix and MicroLogix 1500 controllers. - Q: What is the response time?
A: 2.5ms conversion rate per channel with fast step response. - Q: Is there short-circuit protection?
A: Yes, it provides protection up to 40mA output current.
