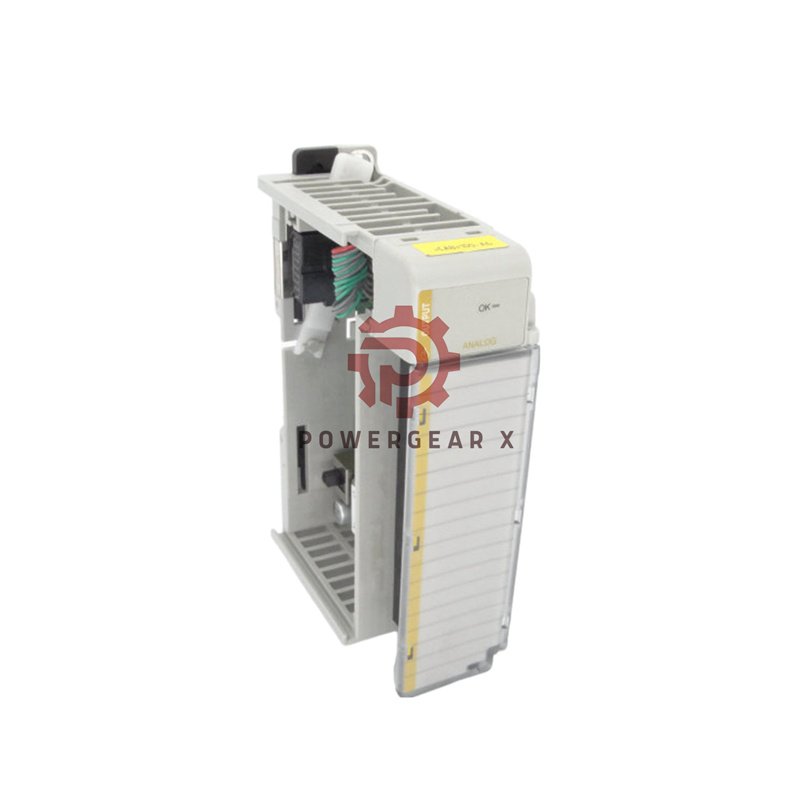

Allen-Bradley 1769-OF2 Analog Output Module
The 1769-OF2 module delivers precise analog control signals. It works with CompactLogix and MicroLogix systems. This compact module offers two output channels. It is perfect for process control applications.
Detailed Specifications
- Brand: Allen-Bradley (Rockwell Automation)
- Model: 1769-OF2 (Series A & B)
- Channels: 2 single-ended outputs
- Voltage Ranges: ±10V, 0-10V, 0-5V, 1-5V DC
- Current Ranges: 0-20mA, 4-20mA
- Resolution: 14-bit (unipolar), 14-bit + sign (bipolar)
- Accuracy: ±0.5% (voltage), ±0.35% (current)
- Response Time: 2.9ms step response
- Power Consumption: 120mA @ 5.1V, 2.36W dissipation
- Wire Size: 22-14 AWG (solid copper)
Package Contents
- One 1769-OF2 Analog Output Module
- One 1769-RTBN18 Terminal Block
- Installation and User Manual
Warranty & Shipping Information
- 12-month warranty included
- Worldwide shipping via FedEx, UPS, and DHL available
- Typically ships within 24-48 hours
Frequently Asked Questions
- What controllers support this module? Compatible with CompactLogix and MicroLogix 1500 systems
- Can I mix voltage and current outputs? Yes, each channel can be independently configured
- What is the maximum load impedance? 500Ω for current outputs, 1kΩ for voltage outputs
- Does it require calibration? No, calibration is guaranteed by hardware design
- What protection features are included? Short-circuit and over-voltage protection on all outputs
