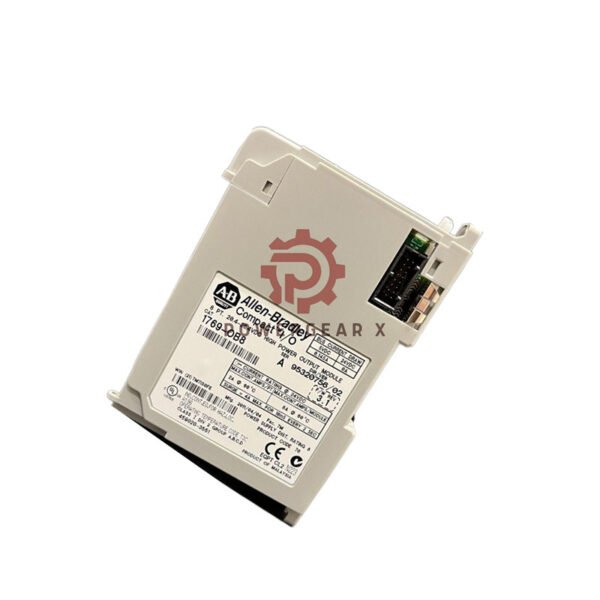

Allen-Bradley 1769-OB8 DC Output Module
The 1769-OB8 controls DC devices in industrial automation systems. It works with CompactLogix and MicroLogix controllers. This module handles high current loads with eight outputs. It is perfect for factory machines and equipment control.
Technical Specifications
- Brand: Allen-Bradley (Rockwell Automation)
- Model: 1769-OB8
- Output Type: 8 DC sourcing outputs
- Voltage Range: 20.4-26.4V DC
- Current per Point: 2A continuous
- Surge Current: 4A for 10ms (repeatable every 2s)
- Power Consumption: 145 mA @ 5.1V DC
- Grouping: 2 groups of 4 outputs
- Wire Size: 22-16 AWG stranded
- Response Time: 1ms typical
- Weight: 0.3 kg (0.66 lb)
- Operating Temperature: 0° to 60°C
Installation Guide
- Mount on DIN rail or panel
- Use proper wire size for safe operation
- Follow local electrical codes
- Ensure proper bus connector engagement
- Check voltage requirements before connection
Package Contents
- 1769-OB8 DC Output Module
- Installation documentation
- 12-month warranty
- Worldwide shipping via FedEx, UPS, DHL
Frequently Asked Questions
- What controllers support this module? Works with CompactLogix, MicroLogix, and through 1769-AENTR/ADN adapters.
- Can it handle motor loads? Yes, it supports high surge currents for motor starting.
- What is the maximum current per output? Each output handles 2A continuous, 4A surge.
- Is this a sourcing or sinking module? The 1769-OB8 is a sourcing output module.
- Can outputs maintain last state during power loss? Yes, this can be configured through programming.
