Product details

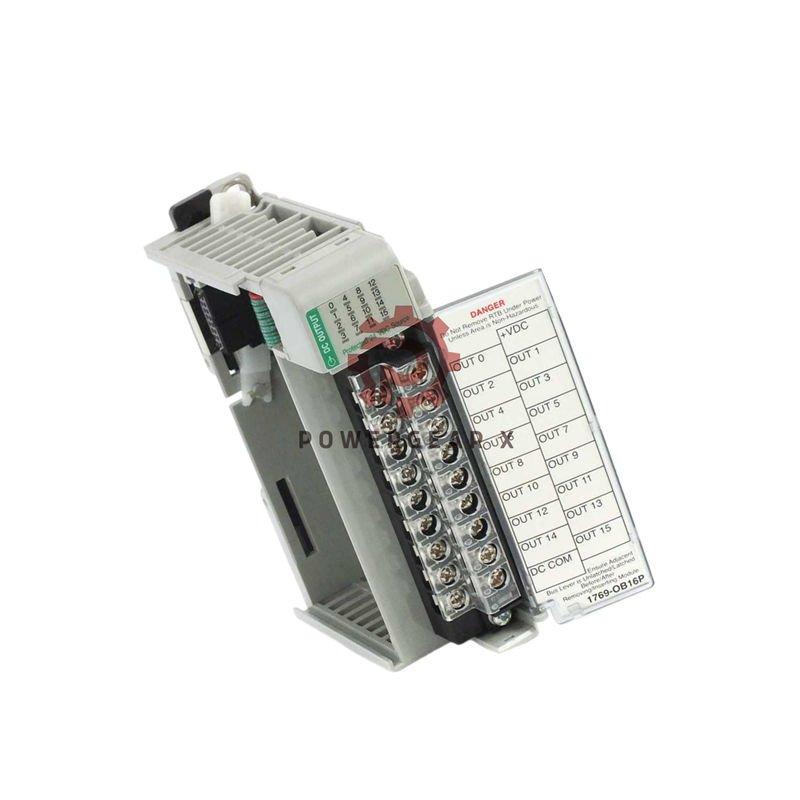

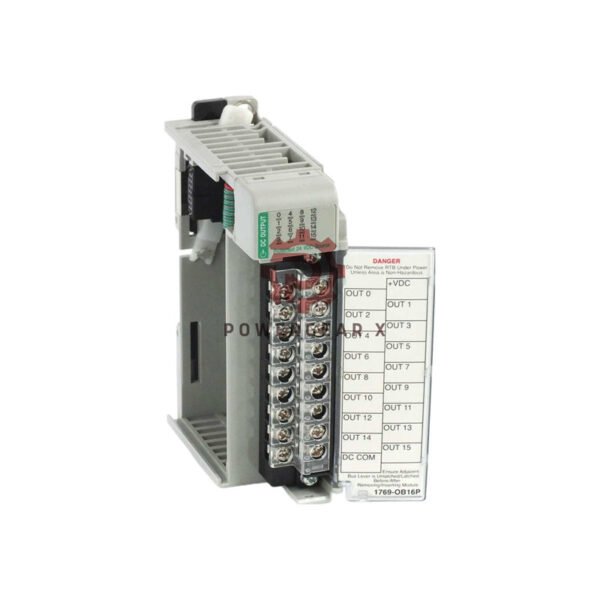

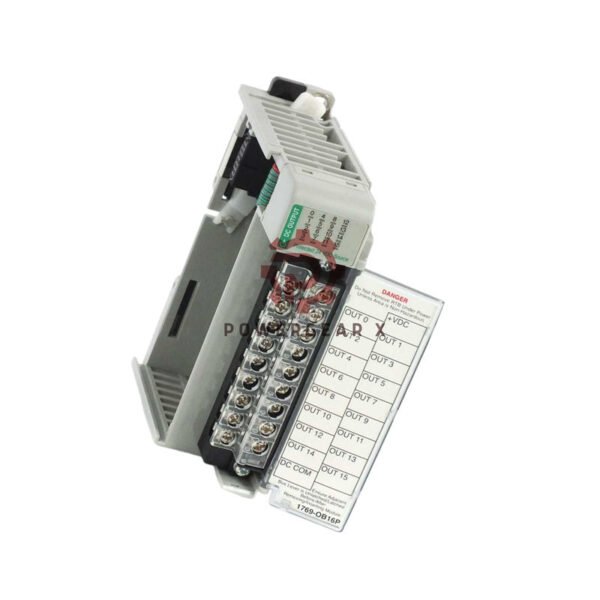

Allen-Bradley 1769-OB16P: 16-Channel Solid-State Output Module
The 1769-OB16P provides reliable solid-state output control for industrial applications. This 24VDC sourcing module offers sixteen protected output channels. It works perfectly with CompactLogix and MicroLogix 1500 systems. The 1769-OB16P ensures fast response times and electronic protection.
Technical Specifications
- Manufacturer: Allen-Bradley/Rockwell Automation
- Model Number: 1769-OB16P
- Output Type: Solid-state DC sourcing
- Output Channels: 16 protected outputs
- Voltage Range: 20.4-26.4VDC operating
- Current Rating: 0.5A per point @ 60°C, 1.0A @ 30°C
- Module Current: 4.0A total @ 60°C, 8.0A @ 30°C
- Leakage Current: 1.0mA maximum @ 26.4VDC
- Response Time: 1ms ON, 2ms OFF
- Backplane Current: 160mA @ 5.1VDC
Performance Features
- Electronic protection eliminates need for fuses
- Surge rating: 2.0A for 10ms (repeatable every second)
- Low leakage current ensures clean switching
- IEC Class 2 reinforced insulation protection
- 75VDC isolation voltage rating
- Compact design saves panel space
Physical Specifications
- Shipping weight: 2 pounds (0.9 kg)
- Dimensions: 8 x 8 x 5 inches
- Wire size: 22-14 AWG solid, 22-16 AWG stranded
- Operating temperature: 0° to 60°C (32° to 140°F)
- Copper wire requirement: 90°C rating
Shipping & Support
- Worldwide shipping via FedEx, UPS, and DHL
- Package includes: 1769-OB16P output module
- 12-month manufacturer warranty
- Technical support available for installation
Frequently Asked Questions
- Q: What type of protection does this module have?
A: It features built-in electronic protection for each output channel. - Q: What controllers work with this output module?
A: It works with CompactLogix and MicroLogix 1500 controllers. - Q: What is the maximum current per output?
A: 0.5A at 60°C or 1.0A at 30°C per point. - Q: Does it require external fuses?
A: No, built-in electronic protection eliminates need for fuses. - Q: What is the response time for switching?
A: 1ms turn ON delay, 2ms turn OFF delay.
