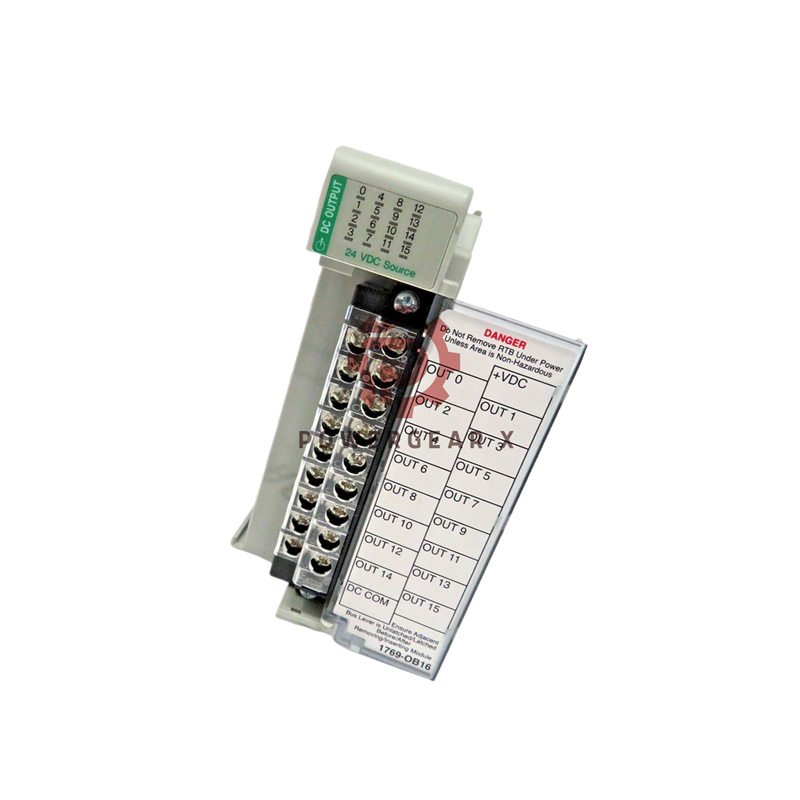

Allen-Bradley 1769-OB16 Digital Output Module
This 1769-OB16 module provides reliable DC output control. It works with CompactLogix and MicroLogix systems. The unit offers sixteen output points in one compact package. It is perfect for industrial automation applications.
Technical Specifications
- Brand: Allen-Bradley (Rockwell Automation)
- Model: 1769-OB16 (Series A & B)
- Output Type: 24V DC Sourcing
- Number of Points: 16 (1 group)
- Current per Point: 1.0A @ 30°C, 0.5A @ 60°C
- Operating Voltage: 20.4-26.4V DC
- Power Dissipation: 2.11 Watts
- Isolation Voltage: 75V DC
- Wire Size: 22-14 AWG (solid), 22-16 AWG (stranded)
- Weight: 0.61 lb (280 g)
Package Includes
- One 1769-OB16 Output Module
- One 1769-RTBN18 Terminal Block
- Installation Documentation
Warranty & Shipping
- 12-month manufacturer warranty included
- Worldwide shipping via FedEx, UPS, and DHL
Frequently Asked Questions
- Can this module control AC loads? Yes, using interposing relays for AC applications.
- What controllers are compatible? Works with CompactLogix and MicroLogix 1500 systems.
- What is the maximum switching current? 1.0A per point at 30°C ambient temperature.
- How many modules can be connected? Up to 8 modules from the power supply.
- What wire size should I use? 22-14 AWG for solid wire, 22-16 AWG for stranded.
