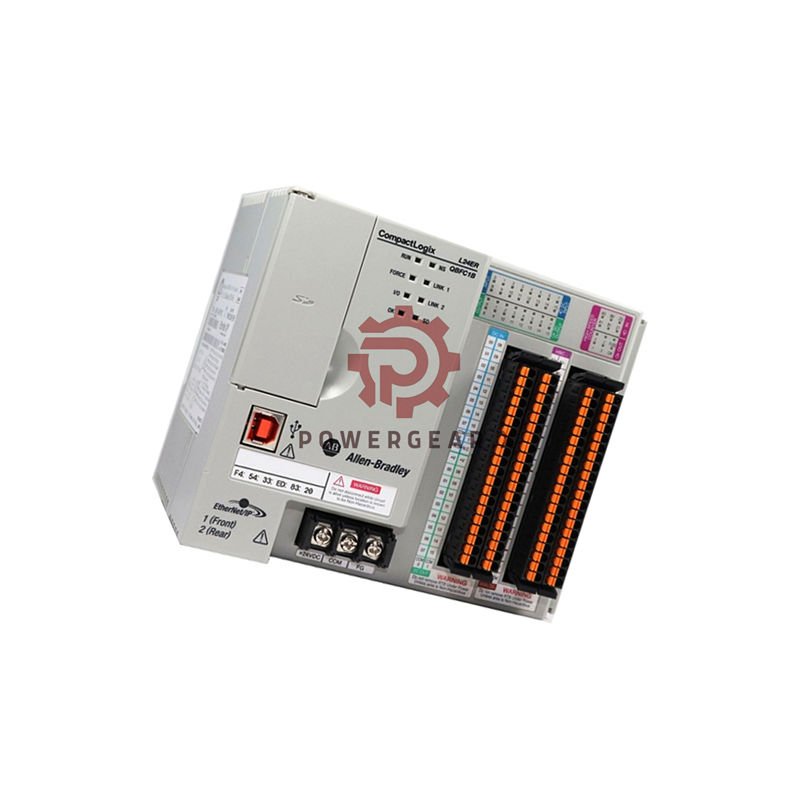

Allen-Bradley 1769-L24ER-QBFC1B CompactLogix Controller
The 1769-L24ER-QBFC1B is a powerful all-in-one controller from Rockwell Automation. It combines processing, I/O, and communication in one compact unit. Perfect for small to medium machines requiring control, motion, and counting.
Product Specifications
Brand & Model: Allen-Bradley 1769-L24ER-QBFC1B
- Input Voltage: 24V DC (10V – 28.8V DC range)
- Digital Inputs: 16 points, 24V DC (Sink/Source)
- Digital Outputs: 16 points, 24V DC (Sinking)
- Analog Inputs: 4 points (Voltage, Current, RTD, Thermocouple)
- Analog Outputs: 2 points (Voltage or Current)
- High-Speed Counters: 4 points (up to 250 kHz)
- Communication Ports: 2x Ethernet/IP, 1x RS-232, 1x USB
- Memory: 1MB user + 1GB non-volatile (SD card)
- Power Consumption: 1A @ 5V DC, 0.8A @ 24V DC
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Warranty: 12 Months
- Shipping: FedEx, UPS, DHL
Installation & Setup
- Mount the controller on a standard DIN rail.
- Keep at least 50mm (2 inches) of space around it for cooling.
- Connect power to the 24V DC terminals.
- Use the USB port for easy initial programming.
- Set the IP address via the built-in LCD screen or using BOOTP-DHCP tool.
Frequently Asked Questions
- Q: What can the high-speed counters be used for?
A: They are perfect for counting pulses from encoders on conveyors or tracking product speed. - Q: Can I connect thermocouples directly to this controller?
A: Yes! The built-in analog inputs support many thermocouple types (J, K, T, etc.) without extra modules. - Q: How many additional I/O modules can I add?
A: You can expand the system with up to 4 additional 1769 series I/O modules. - Q: Is this controller good for simple motion control?
A: Yes, it can control up to 2 axes of motion over Ethernet for basic positioning. - Q: What is the advantage of having two Ethernet ports?
A: One port can connect to your factory network, and the other can daisy-chain to other devices, saving on switches.
