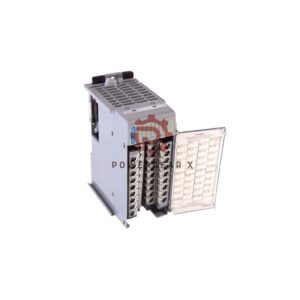

Allen-Bradley 1769-IQ32T: High-Density 32-Channel Input Module
The 1769-IQ32T offers thirty-two 24V DC inputs in a compact design. This module features remote termination with a prefabricated cable system. It works with CompactLogix and MicroLogix 1500 controllers. The 1769-IQ32T provides excellent space savings and easy installation.
Detailed Specifications
- Manufacturer: Allen-Bradley/Rockwell Automation
- Model Number: 1769-IQ32T Series A/B
- Input Channels: 32 DC inputs (24V)
- Input Groups: 4 isolated groups (8 channels each)
- Voltage Range: 10-30V DC @ 30°C, 10-26.4V DC @ 60°C
- Response Time: 8ms typical on/off delay
- Connector Type: 40-pin female (1746-N3 included)
- Wire Compatibility: 22-14 AWG solid, 22-16 AWG stranded
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Mounting Options: DIN rail or panel mount
Compatible Systems
- 1769 CompactLogix controllers and systems
- MicroLogix 1500 platform and base units
- Allen-Bradley 1492 wiring systems
- 1769 series power supplies and accessories
- Industrial automation networks
Shipping & Support Details
- Worldwide shipping via FedEx, UPS, and DHL
- Package weight: 2 lbs (0.9 kg)
- Package dimensions: 8x8x5 inches
- 12-month manufacturer warranty included
- Comprehensive technical support available
Frequently Asked Questions
- Q: What connector comes with the module?
A: It includes a 40-pin female connector (1746-N3). - Q: How many input groups does it have?
A: It features four isolated groups with eight inputs each. - Q: What controllers work with this module?
A: It works with CompactLogix and MicroLogix 1500 systems. - Q: Can I use both sinking and sourcing devices?
A: Yes, the module supports both types simultaneously. - Q: What is the operating temperature range?
A: It operates from 0°C to 60°C (32°F to 140°F).
