Rockwell Automation 1762-IT4 | 4-Channel Temperature Input

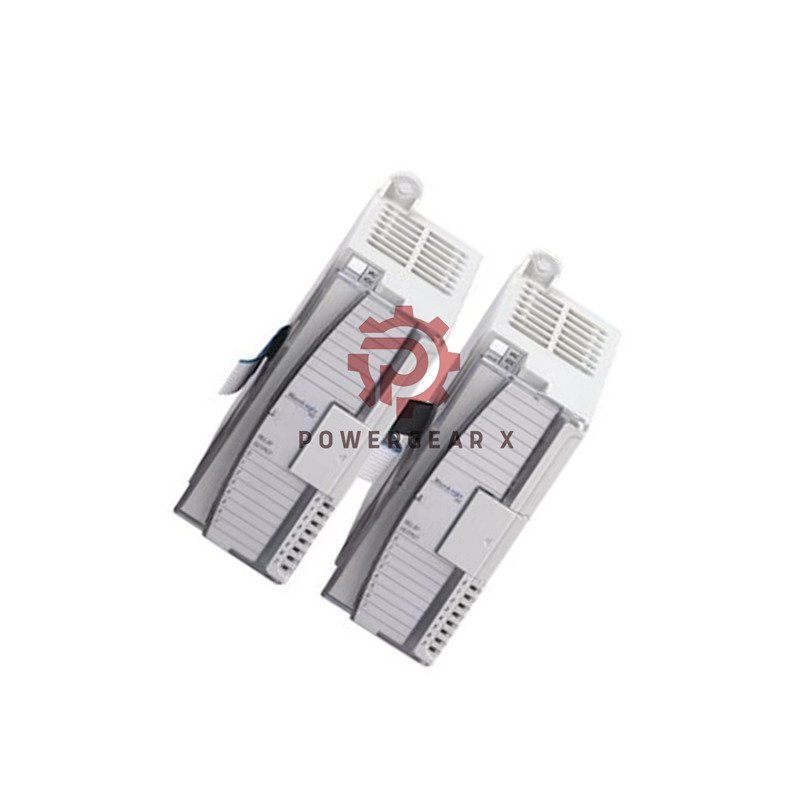

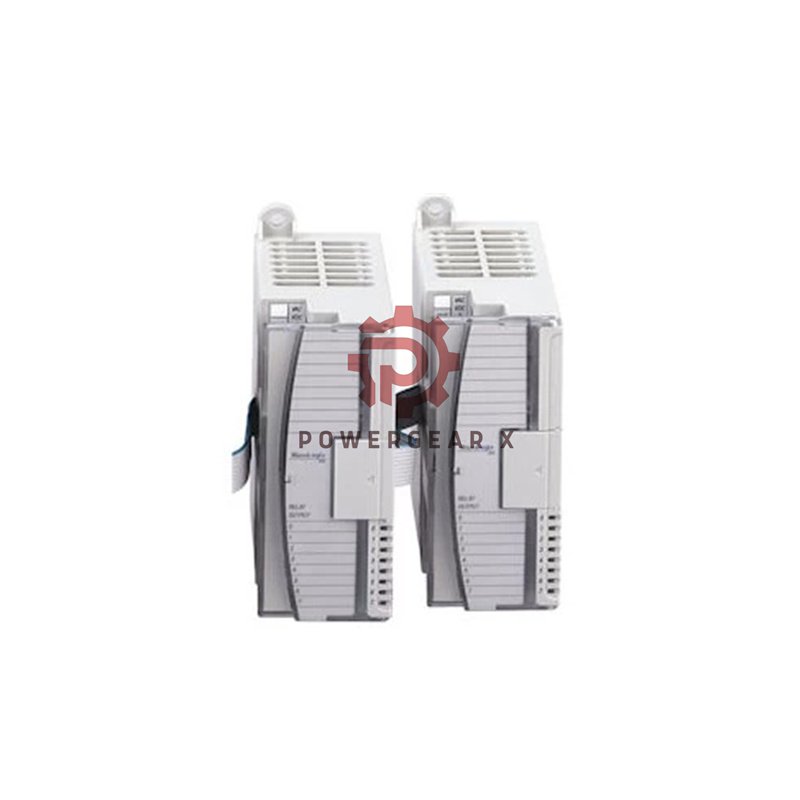

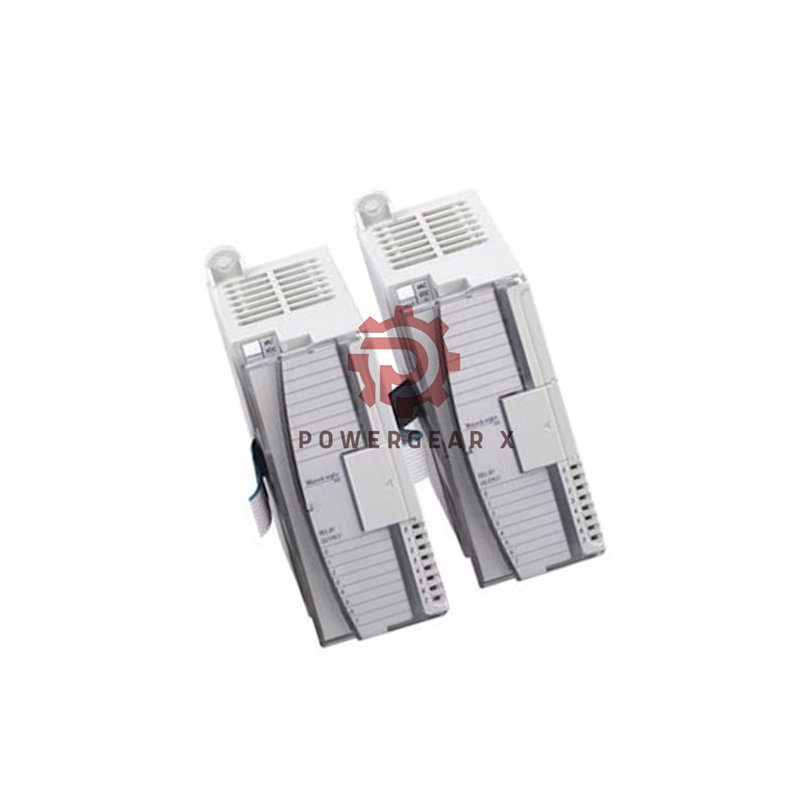

Allen-Bradley 1762-IT4 Thermocouple Input Module

The Allen-Bradley 1762-IT4 is a precision temperature input module. It works with MicroLogix 1200 systems from Rockwell Automation. This module handles thermocouple and millivolt signals.

Technical Specifications

• Brand: Allen-Bradley
• Model: 1762-IT4
• Product Family: MicroLogix 1200
• Module Type: Thermocouple/mV Input
• Number of Channels: 4 inputs + 1 CJC sensor
• Resolution: 15-bit plus sign
• Thermocouple Types: J, K, T, E, R, S, B, N, C
• Millivolt Ranges: ±50mV, ±100mV
• Temperature Range: -210 to 2315°C (-346 to 4199°F)
• Update Time: 7-303 ms (selectable)
• Filter Frequencies: 10Hz to 1kHz
• Accuracy: ±1.3°C with CJC
• Power Consumption: 1.5 Watts

Package Contents

• One 1762-IT4 input module
• Connection cable
• Mounting hardware
• Installation guide

Shipping & Support

• Worldwide shipping via FedEx, UPS, DHL
• 12-month manufacturer warranty
• Quick order processing

Frequently Asked Questions

• What thermocouple types does it support?
  It supports types J, K, T, E, R, S, B, N, and C.
• What is the measurement resolution?
  It provides 15-bit plus sign resolution.
• Does it include temperature compensation?
  Yes, it features cold junction compensation.
• Can it read millivolt signals directly?
  Yes, it accepts ±50mV and ±100mV signals.
• What is the response time?
  Update times range from 7ms to 303ms.
