Rockwell Automation 1762-IQ16 | MicroLogix Expansion Module

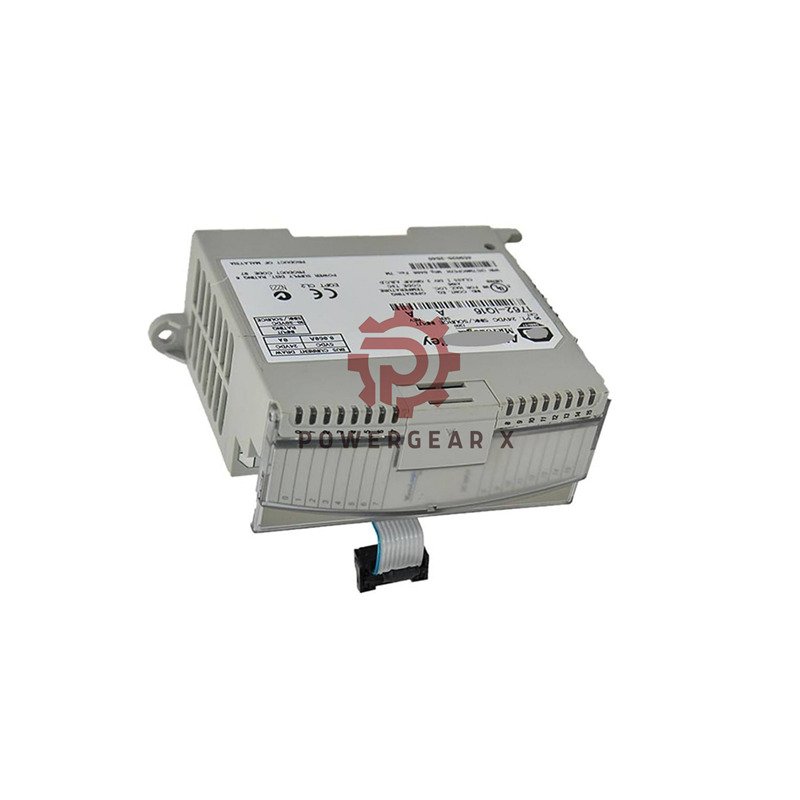

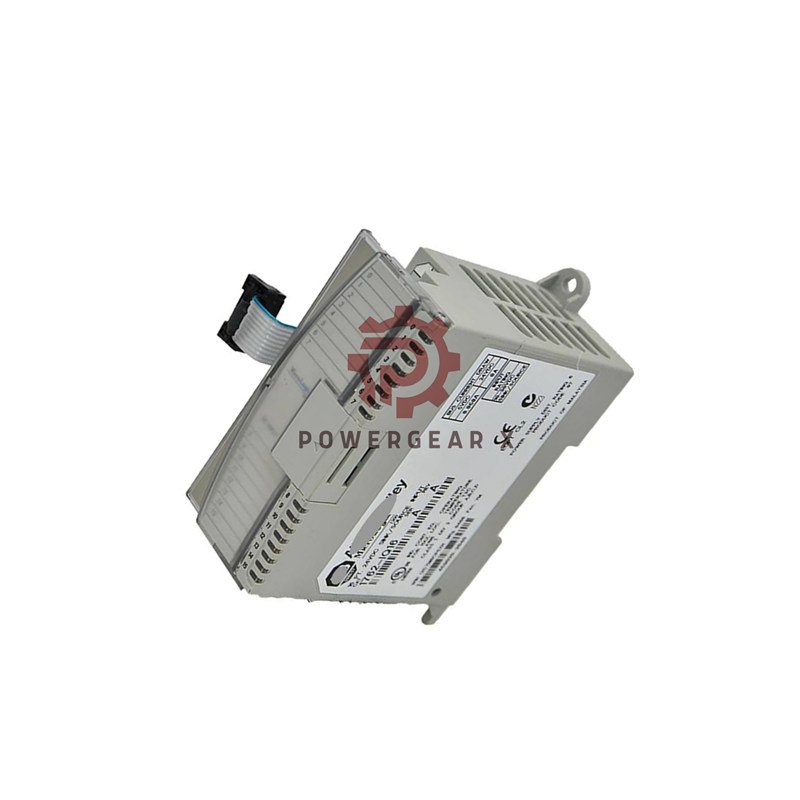

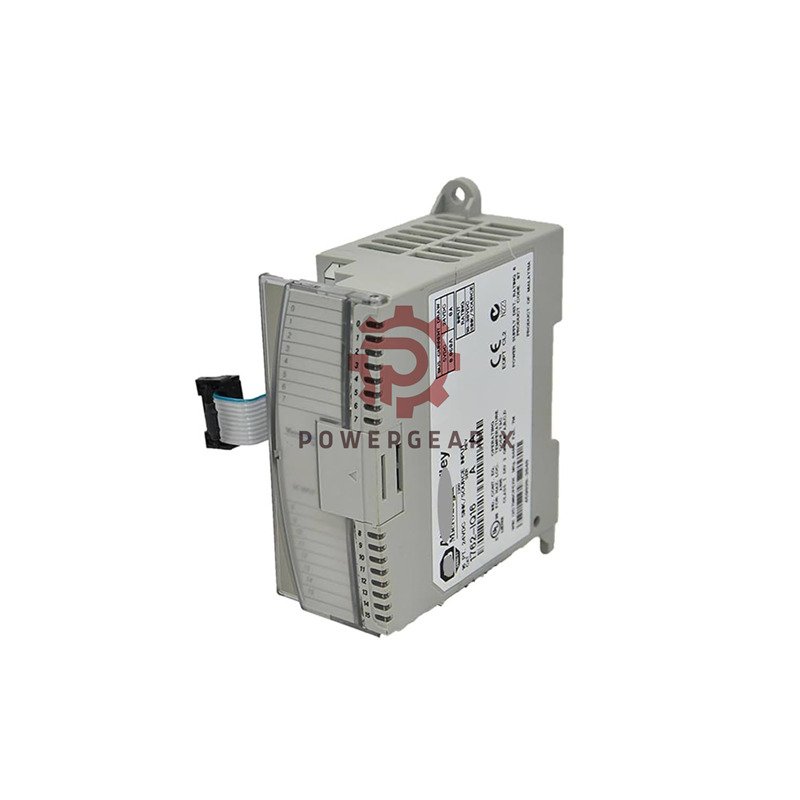

Allen-Bradley 1762-IQ16 MicroLogix Input Module

The Allen-Bradley 1762-IQ16 is a 16-channel DC input module. It expands MicroLogix PLC systems from Rockwell Automation. This module works with 1100, 1200, and 1400 controllers.

Technical Specifications

• Brand: Allen-Bradley
• Model: 1762-IQ16
• Product Family: MicroLogix
• Module Type: 16-Channel DC Input
• Input Voltage: 24V DC (10-30V range)
• Input Type: Sinking/Sourcing
• Number of Channels: 16 points
• Signal Delay: 8.0 ms
• On-State Current: 8.0 mA @ 24V DC
• Off-State Current: 1.5 mA maximum
• Power Consumption: 3.7 Watts
• Dimensions: 3.54 x 1.59 x 3.43 inches
• Enclosure Rating: IP20

Frequently Asked Questions

• Which PLCs does this module work with?
  It works with MicroLogix 1100, 1200, and 1400 controllers.
• What input types does it support?
  It supports both sinking and sourcing input devices.
• How many expansion modules can I use?
  Up to 7 modules with MicroLogix 1400 controllers.
• What is the response time?
  8.0 ms signal delay for state changes.
• Is the terminal block protected?
  Yes, it includes a finger-safe cover for safety.
