Rockwell Automation 1762-IA8 Input Module – Allen-Bradley MicroLogix

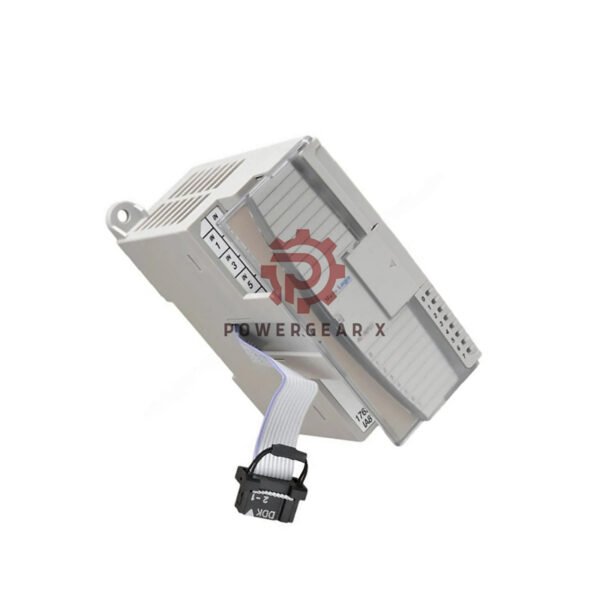

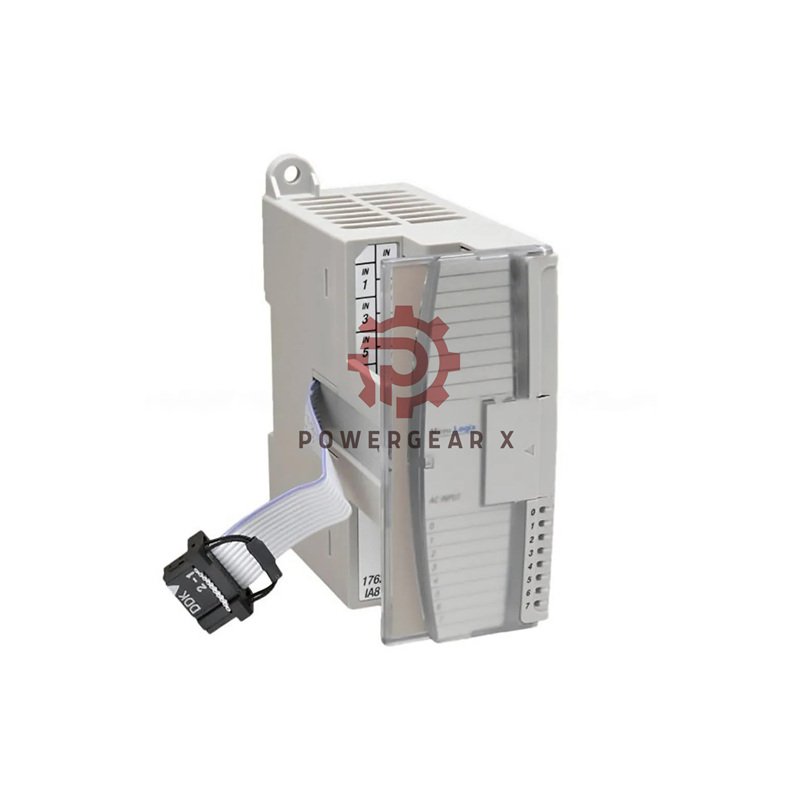

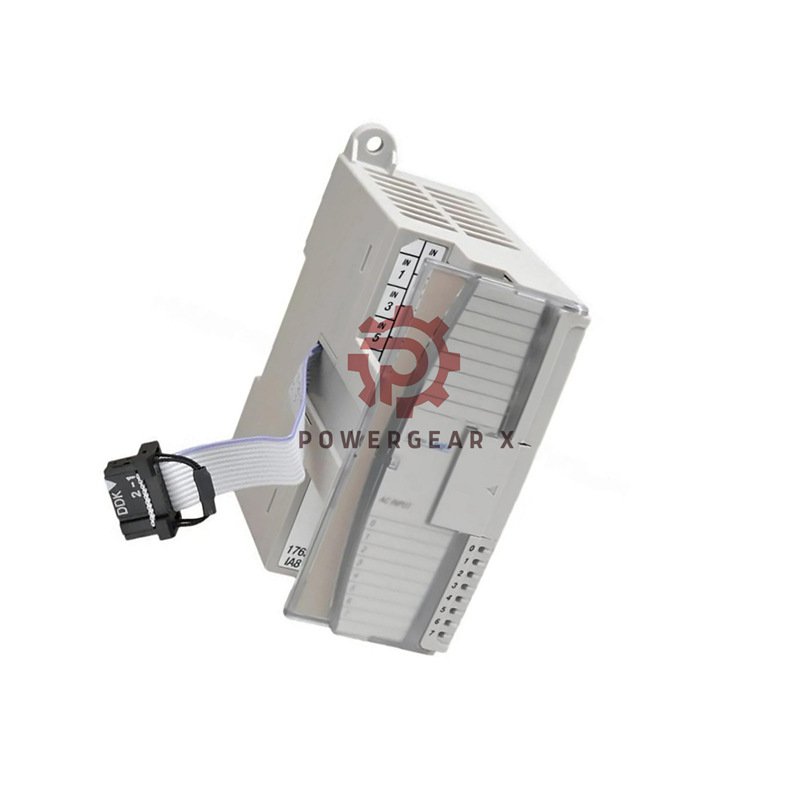

Allen-Bradley 1762-IA8 MicroLogix AC Input Module

The Allen-Bradley 1762-IA8 expands your MicroLogix system with eight 120V AC inputs. This compact module fits tight spaces while delivering reliable performance. It works with MicroLogix 1200 controllers for industrial automation. The 1762-IA8 offers flexible mounting options and easy installation. Rockwell Automation designed this module for durable operation in various environments.

Technical Specifications

• Brand: Allen-Bradley
• Manufacturer: Rockwell Automation
• Model Number: 1762-IA8
• Product Line: MicroLogix
• Input Type: 120V AC Digital
• Number of Inputs: 8 points
• Voltage Range: 79-132V AC
• Frequency: 47-63 Hz
• Input Delay: 20ms maximum
• Power Consumption: 50mA @ 5V DC
• Inrush Current: 250mA maximum
• Isolation Voltage: 1500V AC
• Operating Temperature: 0°C to 55°C
• Dimensions: 3.5″ x 3.4″ x 1.5″
• Weight: 0.46 pounds

Package Contents

• 1 x Allen-Bradley 1762-IA8 input module
• Installation documentation
• Shipping via FedEx, UPS, or DHL

Frequently Asked Questions

• Which controllers work with this module?
  It connects to MicroLogix 1200 programmable controllers.
• What is the maximum distance from power supply?
  Install within six modules of the host power supply.
• Can I mix different I/O modules in one system?
  Yes, digital and analog modules can work together.
• What wiring does this module require?
  Use standard 14-22 AWG copper wiring.
• What is the input response time?
  It has a maximum 20ms on/off delay.
