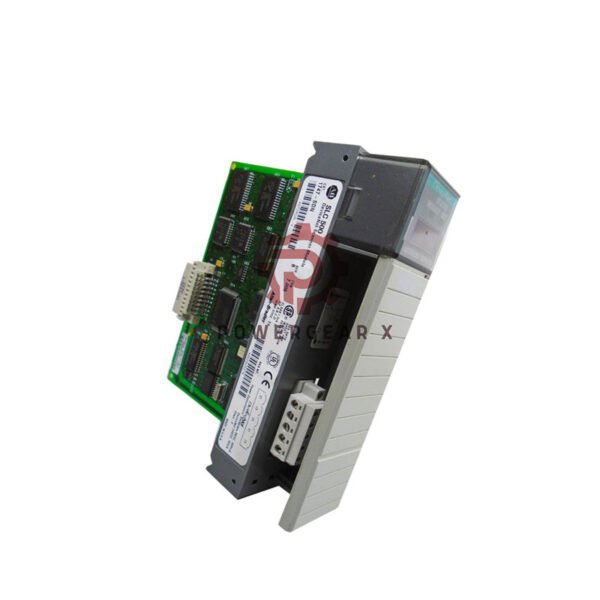

Rockwell Automation 1747-SDN – DeviceNet Scanner Module

Allen-Bradley 1747-SDN DeviceNet Scanner Module: Reliable Network Connectivity

The Allen-Bradley 1747-SDN provides seamless DeviceNet integration for SLC 500 systems. This powerful scanner module from Rockwell Automation enables efficient communication with up to 63 DeviceNet nodes. The 1747-SDN module ensures smooth data exchange between your controller and field devices.

Detailed Technical Specifications

• Brand: Allen-Bradley
• Model: 1747-SDN
• Series: SLC 500
• Module Type: DeviceNet Scanner
• Compatible Controllers: SLC 5/02 or later
• Data Transfer Speed: 125 Kbps
• Backplane Current: 500mA @ 5V DC, 90mA @ 24V DC
• Operating Temperature: 0 to 55°C (32 to 131°F)
• Storage Temperature: -40 to 85°C (-40 to 185°F)
• Operating Shock: 30G peak acceleration
• Vibration Resistance: 5G @ 10-500Hz (IEC 68-2-6)
• Isolation Rating: 500V AC for 60 seconds
• Weight: 1 pound (0.45 kilograms)
• Connection: 10-pin linear plug (1787-PLUG10R)

Package Contents

• 1747-SDN DeviceNet Scanner Module
• Installation Documentation
• User Configuration Guide

Shipping & Delivery

• Global shipping via FedEx, UPS, and DHL
• Secure protective packaging
• Real-time tracking provided
• Express shipping options available

Expert FAQs

• What controllers work with the 1747-SDN module?
  The 1747-SDN works with SLC 5/02, 5/03, 5/04, and 5/05 processors.
• How many devices can connect to this scanner module?
  It supports configuration of up to 63 nodes on the DeviceNet network.
• What communication modes does this module support?
  It operates in Polled, Strobe, Change-of-State, and Cyclic I/O modes.
• Can this module replace other DeviceNet connections?
  Yes, it can replace 1770-KFD, 1784-PCD, and 1784-PCID connections.
• What is the maximum data transfer speed?
  The module communicates at a speed of 125 Kbps over DeviceNet.
