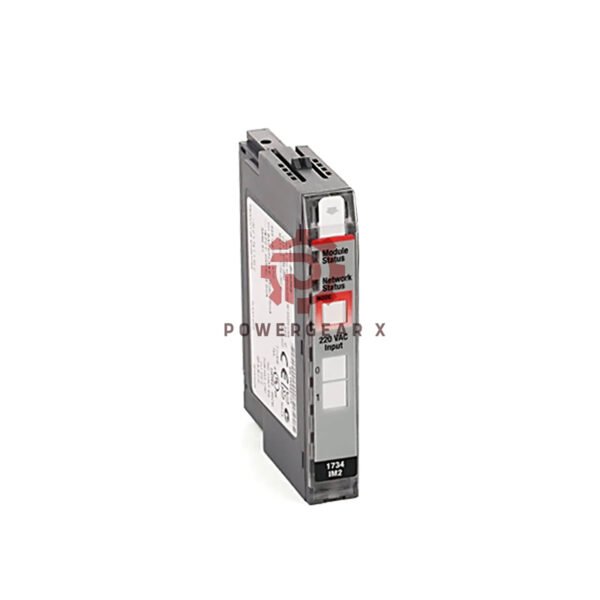

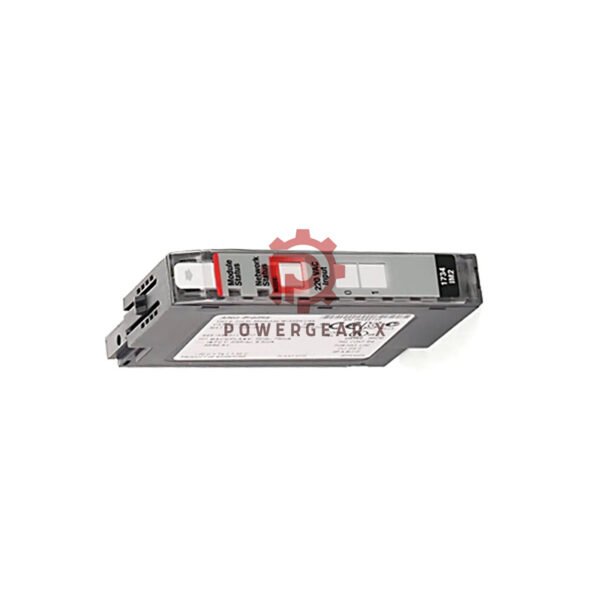

Allen-Bradley 1734-IM2 Digital AC Input Module
The Allen-Bradley 1734-IM2 provides reliable AC input monitoring for your POINT I/O system. This compact module offers two 220V AC input channels in a small footprint. It features real-time status indicators for easy monitoring. The 1734-IM2 delivers excellent performance in industrial environments. Rockwell Automation designed this module for space-conscious applications.
Technical Specifications
- Brand: Allen-Bradley
- Manufacturer: Rockwell Automation
- Model Number: 1734-IM2
- Series: POINT I/O
- Input Channels: 2 AC inputs
- Input Voltage: 220V AC nominal
- Voltage Range: 159-264V AC
- Frequency: 47-63 Hz
- Input Current: 6.2-10.2 mA
- On-State Voltage: 159-264V AC
- Off-State Voltage: 43V AC maximum
- Backplane Current: 75 mA @ 5V DC
- Power Dissipation: 0.48 W maximum
- Isolation Voltage: 240V continuous
- Operating Temperature: -20°C to 55°C
- Dimensions: 2.21″ x 0.47″ x 2.97″
- Weight: 1.09 ounces
Compatible Terminal Bases
- 1734-TB standard terminal base
- 1734-TBS screw terminal base
- 1734-TOP plug-in terminal base
- 1734-TOPS plug-in screw terminal base
Wiring Information
- Wire Type: 14-22 AWG solid or stranded copper
- Temperature Rating: 75°C minimum
- Connection: Sink input configuration
- Isolation: Field-side to system isolation
Package Contents
- 1 x Allen-Bradley 1734-IM2 input module
- Installation documentation
- Shipping via FedEx, UPS, or DHL
Frequently Asked Questions
- What applications is this module best suited for?
It works well for monitoring AC devices like motors, pumps, and heaters. - Can I use this module with higher voltage sources?
No, the maximum input voltage is 264V AC. - How many modules can I connect to one system?
The number depends on your controller’s capacity and power supply. - What is the response time of the inputs?
It provides real-time response with typical AC input characteristics. - Does this module provide electrical isolation?
Yes, it offers 240V continuous isolation between field and system.
