Product details

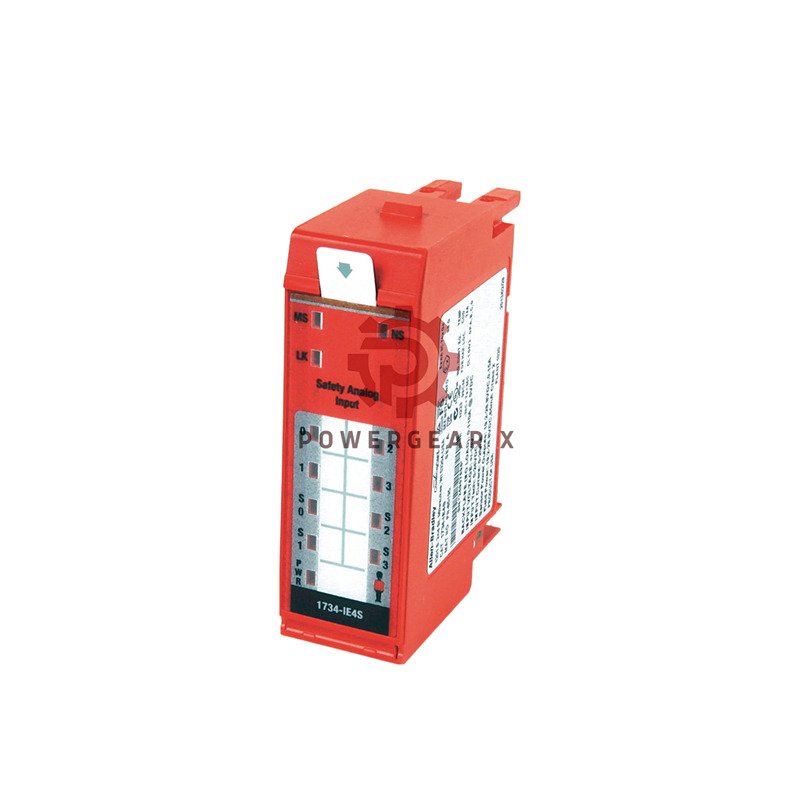

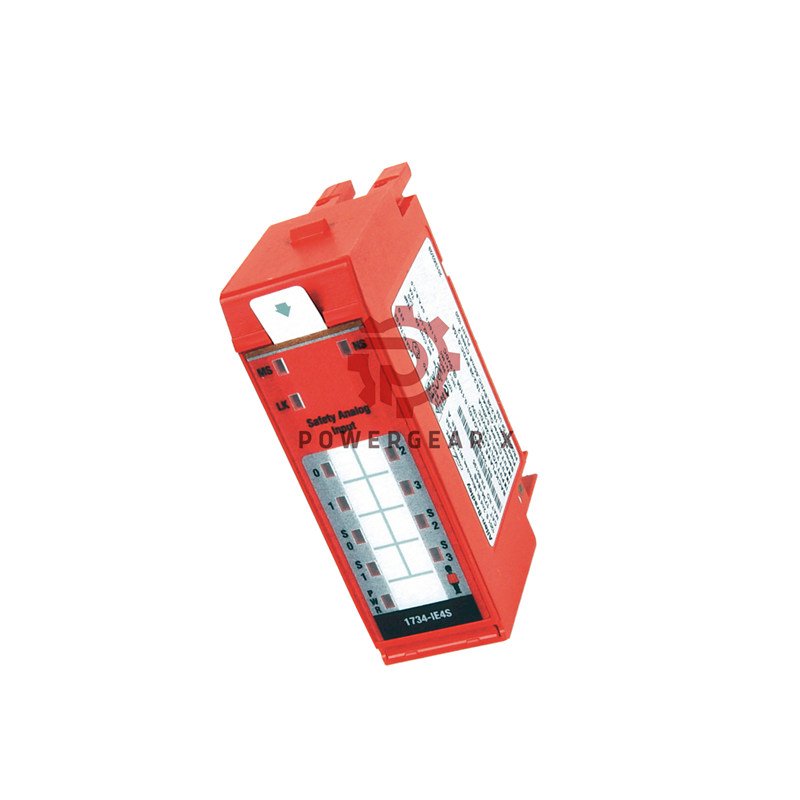

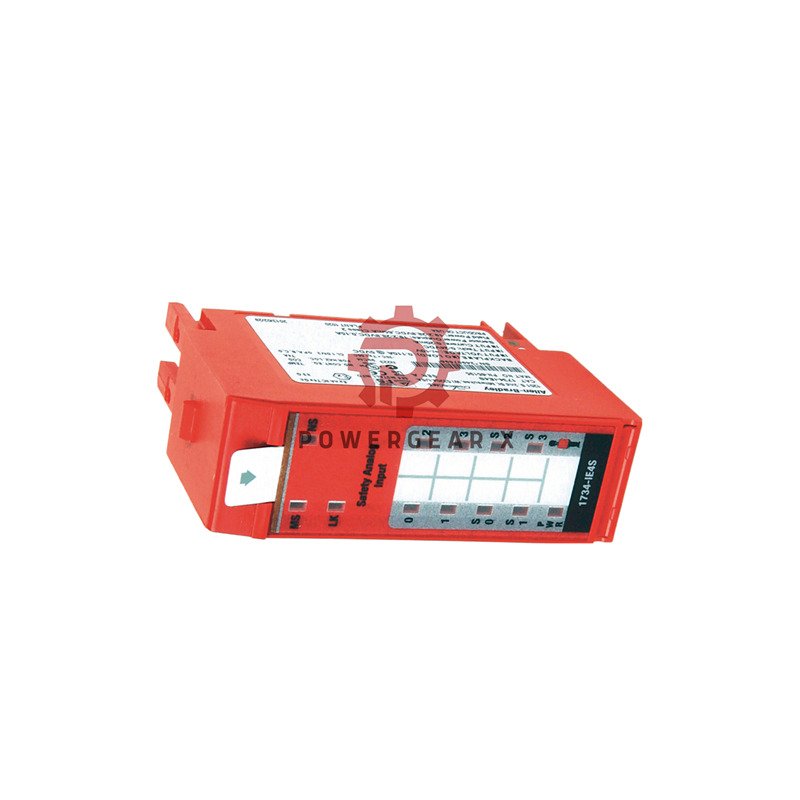

Allen-Bradley 1734-IE4S Safety Analog Input Module
The Allen-Bradley 1734-IE4S brings advanced safety monitoring to your POINT I/O system. This analog input module offers four configurable input channels for various signals. It supports voltage, current, and tachometer input types. The 1734-IE4S provides reliable performance for critical safety applications. Rockwell Automation designed this module for precise measurement and protection.
Technical Specifications
- Brand: Allen-Bradley
- Manufacturer: Rockwell Automation
- Model Number: 1734-IE4S
- Series: POINT I/O
- Input Channels: 4 single-ended inputs
- Input Types: Voltage, Current, Tachometer
- Operating Modes: Bipolar or Unipolar
- Resolution: 12-bit ADC
- Voltage Range: 0-5V, 0-10V
- Current Range: 0-20mA, 4-20mA
- Tachometer Range: 1-1000 Hz
- Response Time: 8ms per channel
- Isolation Voltage: 250V continuous
- Operating Temperature: -20°C to 55°C
Measurement Ranges & Accuracy
- Voltage Input: 0-5V or 0-10V range
- Current Input: 0-20mA or 4-20mA range
- Tachometer Input: 1-1000 Hz frequency
- Accuracy: ±0.1% of full scale
- Update Rate: 10ms for all channels
- Over-range Protection: 125% of rated value
Package Contents
- 1 x Allen-Bradley 1734-IE4S safety analog module
- Installation documentation
- Shipping via FedEx, UPS, or DHL
