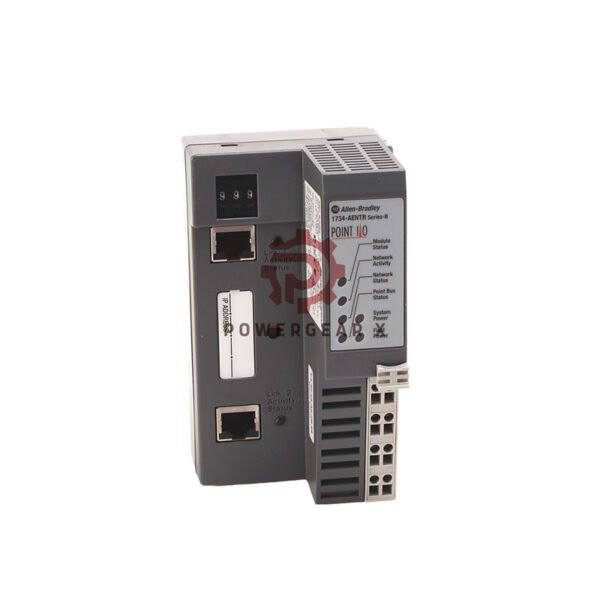

Allen-Bradley 1734-AENTR Ethernet/IP Adapter Module
The Allen-Bradley 1734-AENTR from Rockwell Automation connects your POINT I/O system to Ethernet/IP networks. This dual-port adapter offers reliable communication and flexible network topologies for industrial automation applications.
Technical Specifications
- Brand: Allen-Bradley
- Manufacturer: Rockwell Automation
- Model Number: 1734-AENTR
- Series: POINT I/O Ethernet/IP Adapter
- Input Voltage: 24V DC nominal
- Communication Speed: 10/100 Mbits/s, auto-negotiating
- Power Consumption: 10.4W maximum at 28.8V DC
- Isolation Voltage: 50V continuous
- Operating Temperature: -20°C to 60°C
- Maximum I/O Modules: 63 modules supported
- Direct Connections: Up to 31 simultaneous
- Enclosure Type: Open-style design
- Network Protocols: TCP/UDP/IP, Ethernet/IP
- Connection Type: RJ-45 (2 ports)
- Cable Requirements: Category 5 or 6 twisted pair
- Weight: 0.62 pounds (281 grams)
Frequently Asked Questions
- What network topologies does this adapter support?
The module supports Ring, Star, Tree, and Linear daisy-chain configurations. - How many controllers can connect simultaneously?
The adapter maintains connections with multiple controllers at once. - What is the maximum number of I/O modules supported?
You can connect up to 63 POINT I/O modules to one 1734-AENTR adapter. - Can I use standard Ethernet cables?
Yes, but industrial-grade Category 5 or 6 cables are recommended. - How do I set the IP address without thumbwheel switches?
Use the BOOTP-DHCP utility software to assign static or dynamic IP addresses.
