Rockwell Automation 1734-ADN I/O Communication Module

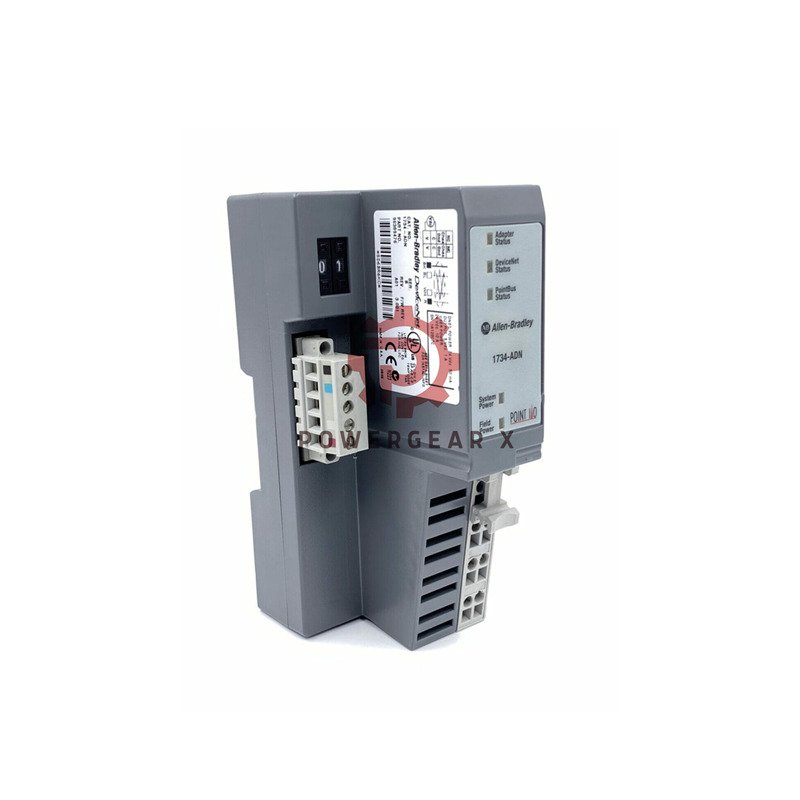

Allen-Bradley 1734-ADN DeviceNet Adapter Module

The Allen-Bradley 1734-ADN Point I/O module connects your DeviceNet network to distributed I/O. This compact adapter lets you monitor and control up to 63 I/O modules from one device.

Technical Specifications

• Brand: Allen-Bradley
• Manufacturer: Rockwell Automation
• Series: POINT I/O
• Model: 1734-ADN
• Input Voltage: 24V DC (23V DC minimum)
• Field Side Power: 400 mA
• Inrush Current: 6 Amps
• Power Consumption: 8.1 Watts
• POINTBus Current: 1000 mA
• Communication Rates: 125K, 250K, 500K bps
• Max Modules: 63 modules
• Max I/O Points: 504 points
• Operating Temperature: -20°C to 60°C
• Relative Humidity: 5-95% non-condensing

Installation Guide

• Mount the module on left side of your POINT I/O system
• Press firmly onto DIN rail until lock engages
• Connect DeviceNet plug and tighten screws
• Set address using thumbwheel switch (0-63)
• Apply power and verify LED indicators

Package Includes

• 1 x 1734-ADN DeviceNet Adapter Module
• 1 x DeviceNet connector
• Installation documentation
• Shipping via FedEx, UPS or DHL

FAQ

• How many I/O modules can one 1734-ADN support?
  One adapter supports up to 63 I/O modules with 504 total points.
• What network speeds does this adapter support?
  It supports 125K, 250K and 500K bits per second speeds.
• Does the module need special configuration?
  Set the node address via thumbwheel switch. No other setup needed.
• Can I replace modules without reprogramming?
  Yes. The Auto Device Replacement feature keeps your settings.
• What power supply does this module need?
  It requires 24V DC power with 400 mA field side power.
