Product Introduction: Advanced Motion Control Module

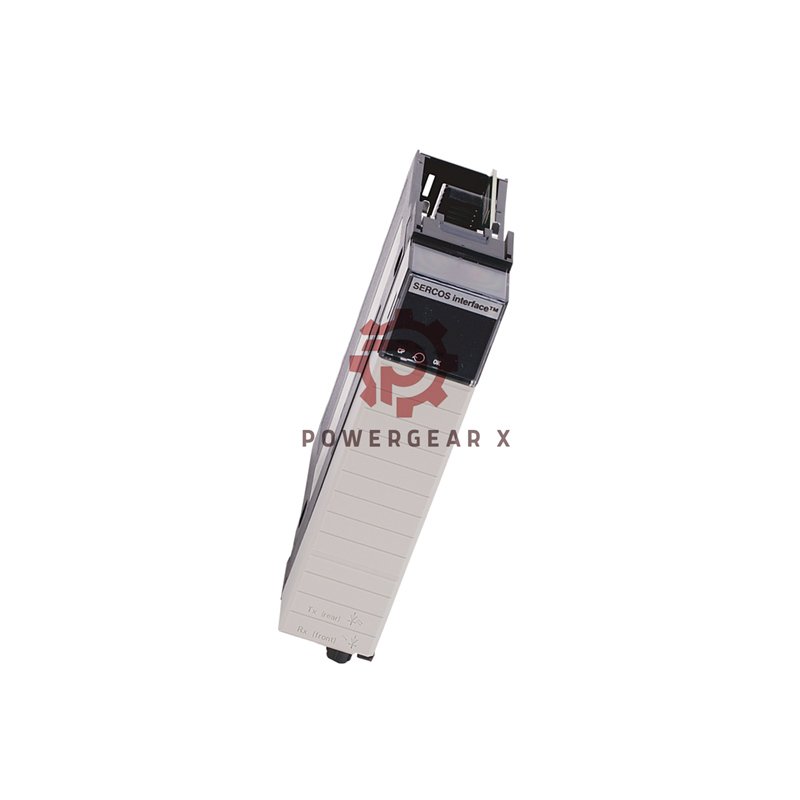

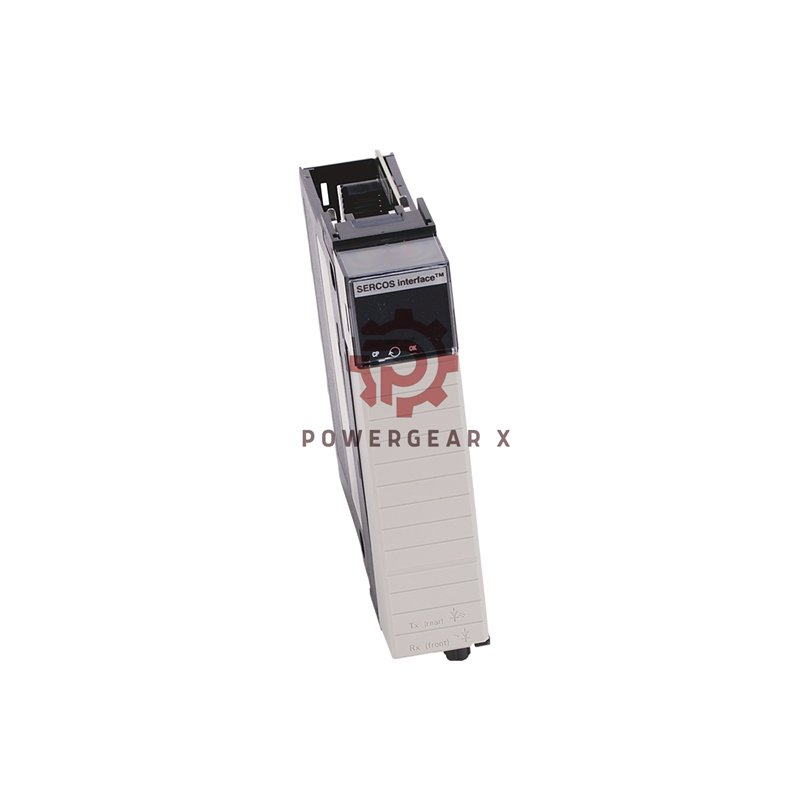

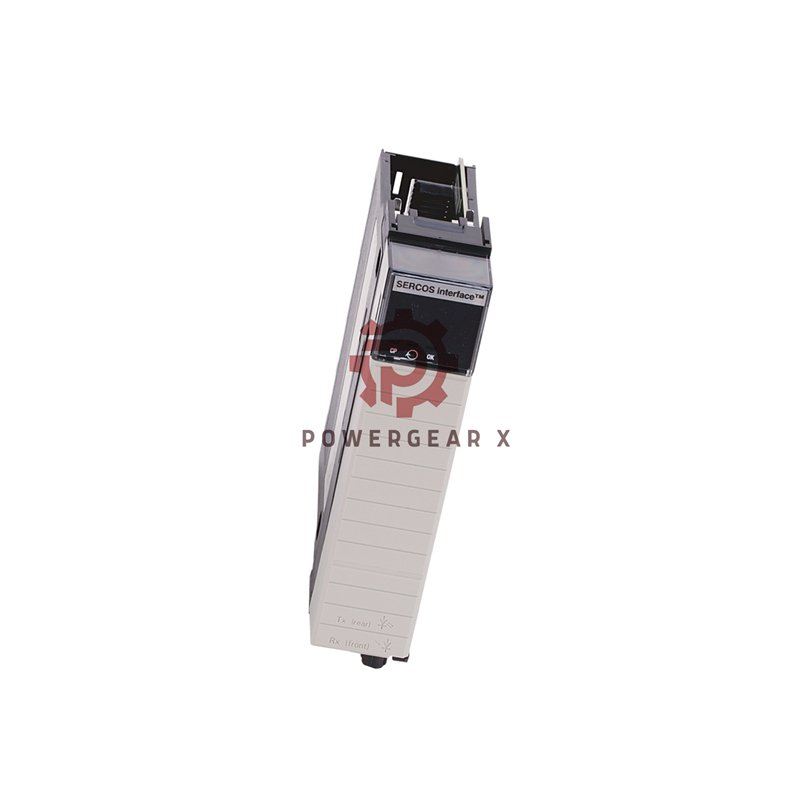

The Allen-Bradley 1756-M08SE SERCOS interface module delivers high-performance motion control. It seamlessly integrates up to 8 servo drives into your ControlLogix system. This module is essential for complex automation requiring precision and reliability.
Technical Specifications
- Brand: Allen-Bradley / Rockwell Automation
- Model: 1756-M08SE
- Series: ControlLogix
- Module Type: SERCOS Interface
- Axes per Module: 8
- SERCOS Data Rate: 4 Mbps or 8 Mbps
- Cycle Time: From 0.5 ms (depends on data rate and drive count)
- Control Modes: Position, Velocity, Torque
- Backplane Current: 760 mA @ 5.1V DC
- Power Dissipation: 5.0 Watts
- Operating Temperature: 0 to 60 °C (32 to 140 °F)
- Storage Temperature: -40 to 85 °C (-40 to 185 °F)
- Vibration Immunity: 2g (10-500 Hz)
- Isolation Voltage: 50V continuous
Compatibility Information
This module works with a wide range of Rockwell Automation products.
- Compatible Chassis: 1756-A4, A7, A10, A13, A17
- Compatible Drives: Kinetix 2000, 6000, 7000, Ultra3000 series
- Compatible Power Supplies: Standard and Redundant (e.g., 1756-PA72, PB75R)
Packaging & Warranty
- Package includes one 1756-M08SE module and documentation.
- Backed by a 12-month warranty.
- This product meets all necessary industry certifications.
Shipping
We ship worldwide using reliable carriers: FedEx, UPS, and DHL.
Frequently Asked Questions (FAQ)
- How many drives can I connect? You can connect and control up to 8 drives with this module.
- What control modes are available? It supports position, velocity, and torque control.
- What is the fastest cycle time? 0.5 ms when using 8 Mbps with up to 4 Kinetix 6000 drives.
- Is it compatible with my chassis? It fits 4-slot to 17-slot 1756 ControlLogix chassis.
