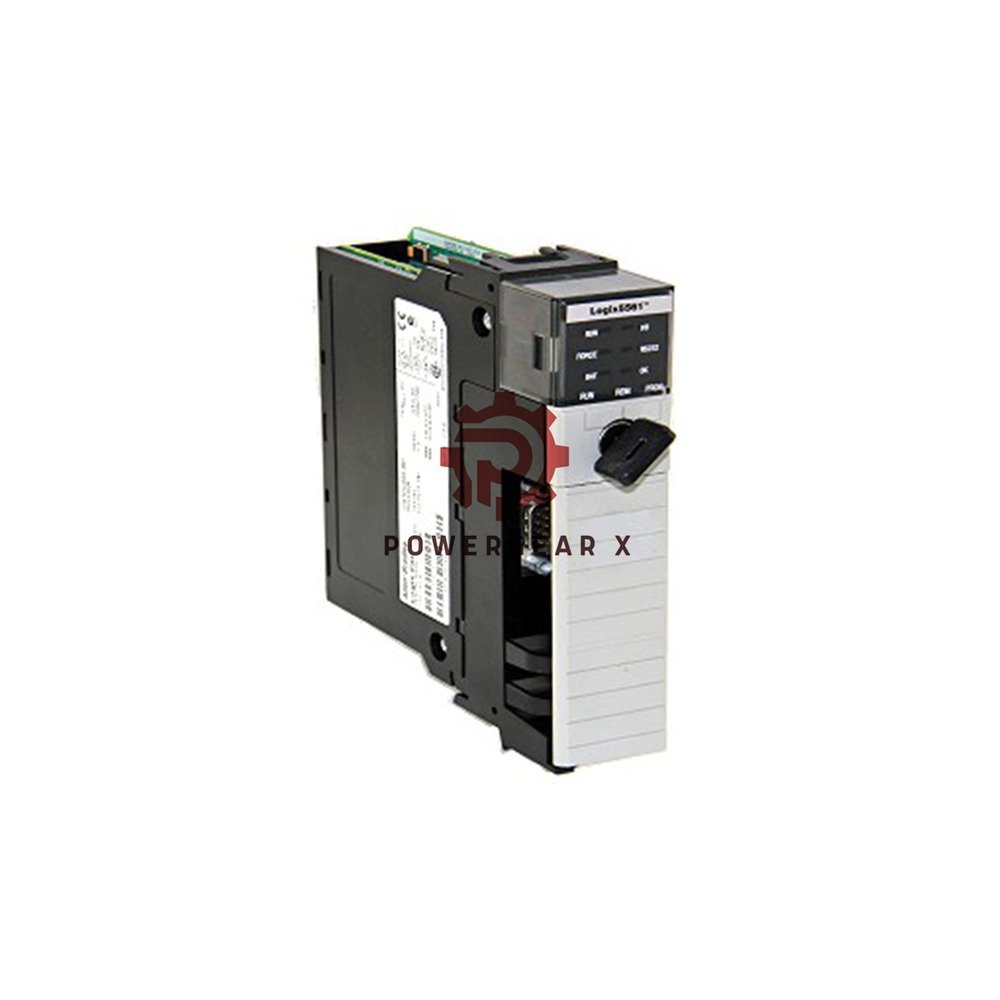

Rockwell 1756-LSP Safety Partner Module Processor | Redundancy

Allen-Bradley 1756-LSP GuardLogix Safety Partner | SIL 3 Certified Co-Processor | Redundant Safety Solution

Download full specifications: Get Technical Manual Here

Technical Performance

• Brand: Allen-Bradley | Model: 1756-LSP
• Series: GuardLogix 5560 Safety Partner
• Safety Memory: 1MB-3.75MB (matches primary controller)
• Power Use: 3.5W (1200mA @5.1V, 14mA @24V)
• Heat Output: 11.9 BTU/hour
• Temp Range: 0°C to +60°C operating
• Shock Resistance: 30g operating / 50g non-operating
• Vibration: 2g @10-500Hz
• Isolation: 30V continuous (720V tested)
• Dimensions: 27 x 17 x 7 cm | Weight: 0.7 lbs

Installation & Partners

• Must install right next to primary controller
• Compatible controllers: 1756-L61S, L62S, L63S
• Chassis options: 1756-A4, A7, A10, A13, A17
• Uses same power supply as primary module
• Occupies 1 slot (2 slots total with primary)

Protection & Support

• 12-month warranty
• Global shipping: FedEx, UPS, DHL
• Included: Module, documentation, CompactFlash card
• IP20 open-style enclosure rating
• Humidity tolerance: 5-95% non-condensing

Expert Questions Answered

• Q: How much safety memory does it provide?
  A: 1MB with L61S/L62S, 3.75MB with L63S
• Q: Can it operate standalone?
  A: No, requires paired primary controller
• Q: What battery does it use?
  A: 1756-BA2 lithium battery (included)
• Q: Is special wiring needed?
  A: Connects via backplane – no extra wiring
• Q: How to monitor status?
  A: Through LED indicators and primary controller
