Proximity Probes | Bently Nevada 330103-00-05-10-02-00

Overview

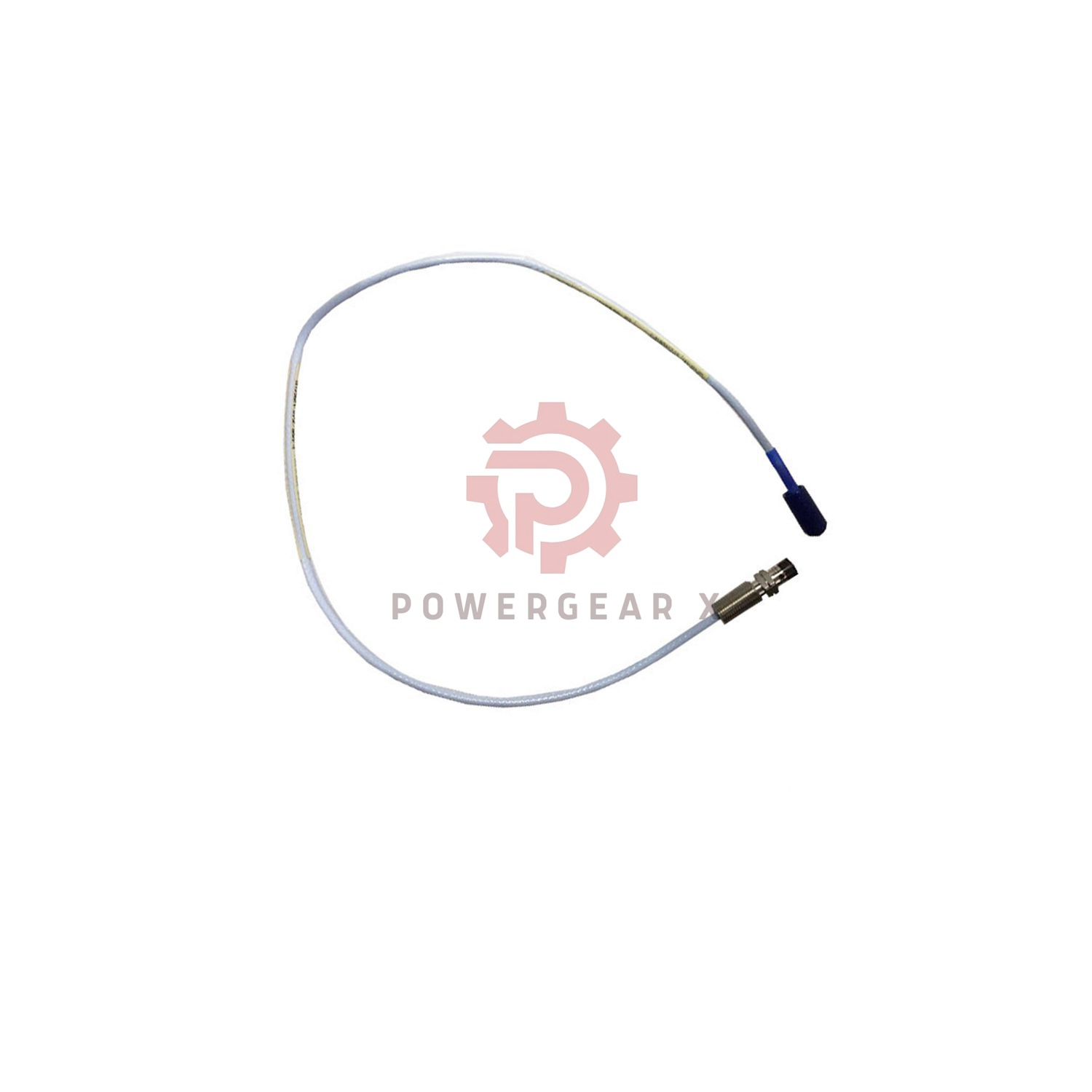

The Bently Nevada 330103-00-05-10-02-00 is a high – performance 3300XL 8mm Proximity Probe. It is engineered to accurately measure the distance between the probe tip and a target surface, with excellent stability and reliability. It comes with a variety of customizable options to meet diverse industrial needs.

Technical Specification

• Brand: Bently Nevada
• Model: 330103-00-05-10-02-00
• Model Number Breakdown
  • 330103: Represents the base model of the 3300XL 8mm Probe, indicating a probe with M10x1 thread and no armor.
  • 00: Signifies the unthreaded length option, specifically 00mm.
  • 05: Denotes the overall case length option, corresponding to 50mm.
  • 10: Indicates the total length option, which is 1.0 meter (3.3 feet).
  • 02: Represents the connector and cable – type option, a Miniature coaxial ClickLoc connector with a standard cable.
  • 00: Stands for the agency approval option, meaning it is not required.
• Product Type: 3300XL 8mm Proximity Probes
• Probe Features: M10x1 thread, no armor, polyphenylene sulfide tip, AISI 303 or 304 stainless – steel case
• Length Options: Unthreaded length 00mm, overall case length 50mm, total length 1.0 meter
• Connector: Miniature coaxial ClickLoc connector, standard cable
• Agency Approval: Not required
• Output Voltage Sensitivity: 200 mV/mil ± 2% at 25°C
• Linearity Error: ± 1% of full – scale output
• Shock Resistance: 1000 g for 11 ms, half – sine wave
• Vibration Resistance: 20 g from 10 Hz to 2000 Hz
• Capacitance: 100 pF ± 10 pF
• Inductance: 10 μH ± 1 μH

Contact Information

For any inquiries, please contact: sales@powergearx.com
For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
