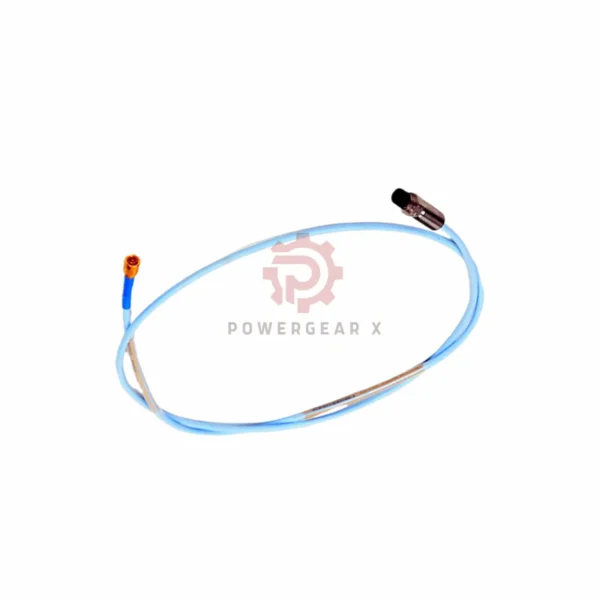

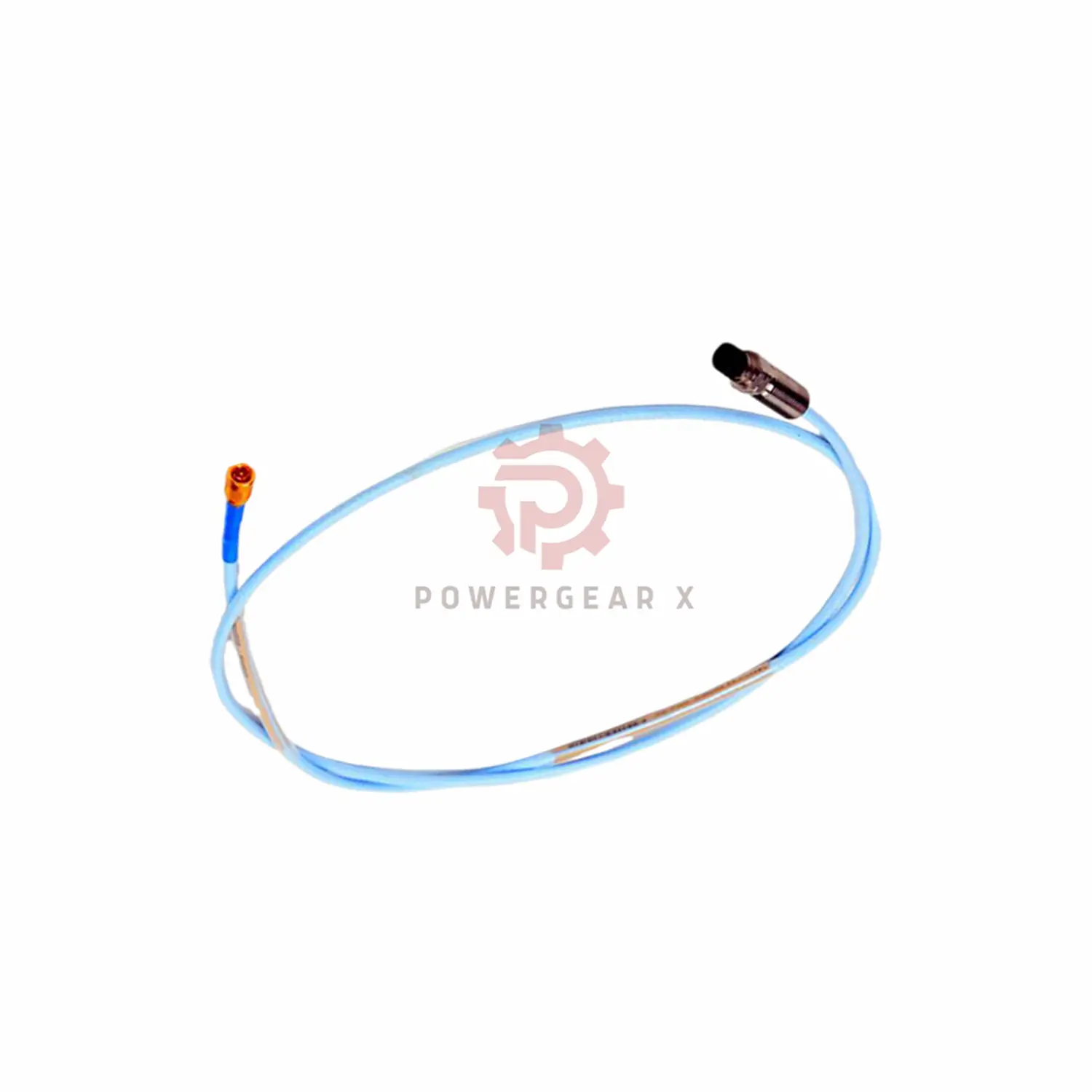

Bently Nevada 330101-00-12-10-01-CN 3300 XL 8 mm Probe

Product Summary

The Bently Nevada 330101-00-12-10-01-CN is a 3300 XL 8 mm probe with a 3/8-24 UNF thread and no armor. It includes a standard 1.0-meter cable with a miniature coaxial ClickLoc connector and connector protector. Designed for stable vibration monitoring in demanding environments.

Main Technical Specifications

• Thread Size: 3/8-24 UNF
• Case Length: 1.2 inches
• Total Length: 1.0 meter (3.3 feet)
• Unthreaded Length: 0.0 inch
• DC Resistance: 7.59 ± 0.50 Ω (for 1.0 m)
• ISF: 7.87 V/mm (200 mV/mil) ± 5%
• Capacitance: 69.9 pF/m typical
• Linear Range: 0.25 mm to 2.3 mm (–1 to –17 Vdc)
• Gap Setting: ~1.27 mm (–9 Vdc)
• DSL Error: ±0.025 mm (1 mil, 5 m system)

Environmental Ratings

• Standard Operating Temp: -52°C to +177°C
• Extended Temp Range: -52°C to +218°C (tip), -51°C to +260°C (cable)
• Humidity: Less than 3% ASF change in 93% humidity for 56 days
• Pressure Seal: Viton O-ring (not pressure-tested)

Model Suffix Breakdown

• 330101 – Series: 3300 XL 8 mm Probe
• 00 – Unthreaded Length: 0.0 inch
• 12 – Case Length: 1.2 inch
• 10 – Cable Length: 1.0 meter
• 01 – Connector: Standard coaxial with protector
• CN – Country Specific Approval

Shipping and Warranty

• Warranty: 12 months standard
• Shipping: FedEx, UPS, DHL available
• COO (Certificate of Origin): Optional
