Proximity Probes – Bently Nevada 330101-00-10-10-02-CN

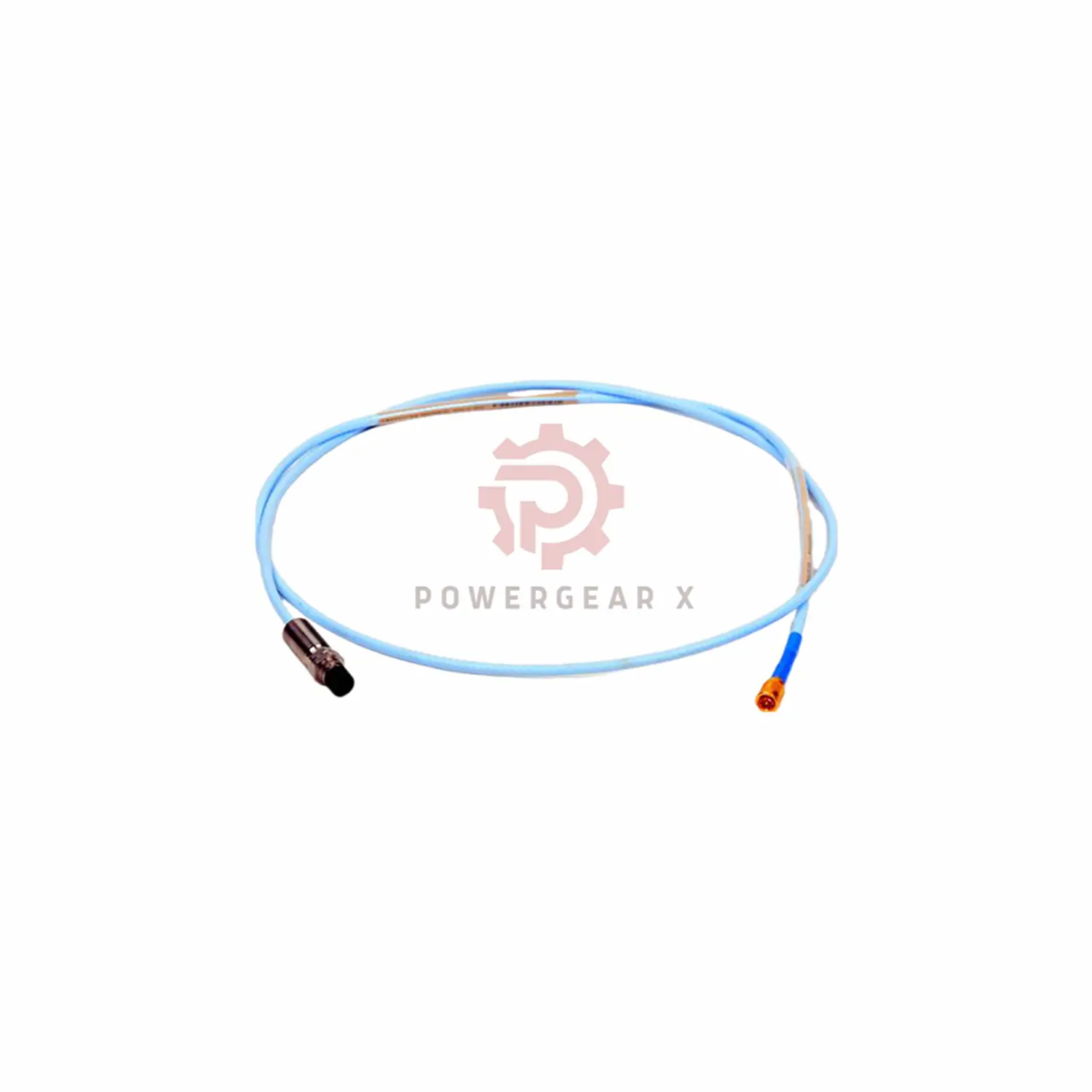

Bently Nevada 330101-00-10-10-02-CN 8 mm Probe

Product Overview

This is a 3300 XL 8 mm proximity probe ( 330101-00-10-10-02-CN) with 3/8-24 UNF thread, 1.0-meter cable, and ClickLoc connector. Built for tough environments with strong PPS tip and stainless steel body.

Key Features

• Thread: 3/8-24 UNF
• Cable: 1.0 meter (3.3 ft)
• Connector: ClickLoc miniature coaxial
• Tip Strength: 330 N pull force
• Weight: 323 g/m

Model Breakdown

• 330101 – Product series
• 00 – 0.0 in unthreaded length
• 10 – 1.0 in case length
• 10 – 1.0 m cable length
• 02 – ClickLoc connector with standard cable
• CN – Country-specific approvals

Temperature & Environment

• Standard Temp: –52°C to +177°C
• Extended Range: Tip to 218°C, Cable to 260°C
• Humidity: Less than 3% ASF change at 93% humidity

Material Details

• Tip: Polyphenylene sulfide (PPS)
• Case: AISI 303 or 304 stainless steel
• Seal: Viton O-ring (not pressure tested)

Problem-Solving Benefits

• ClickLoc connector won’t loosen
• Robust in wet or high-temp areas
• Optional FluidLoc available (not included)

Package Includes

• 1 × 330101 Probe (without armor)
• 1 × Connector Protector

Shipping & Warranty

• Ships via FedEx, UPS, DHL
• 12-month warranty
• Certificate of Origin available upon request
