Proximity Probes – Bently Nevada 330101-00-08-10-02-05

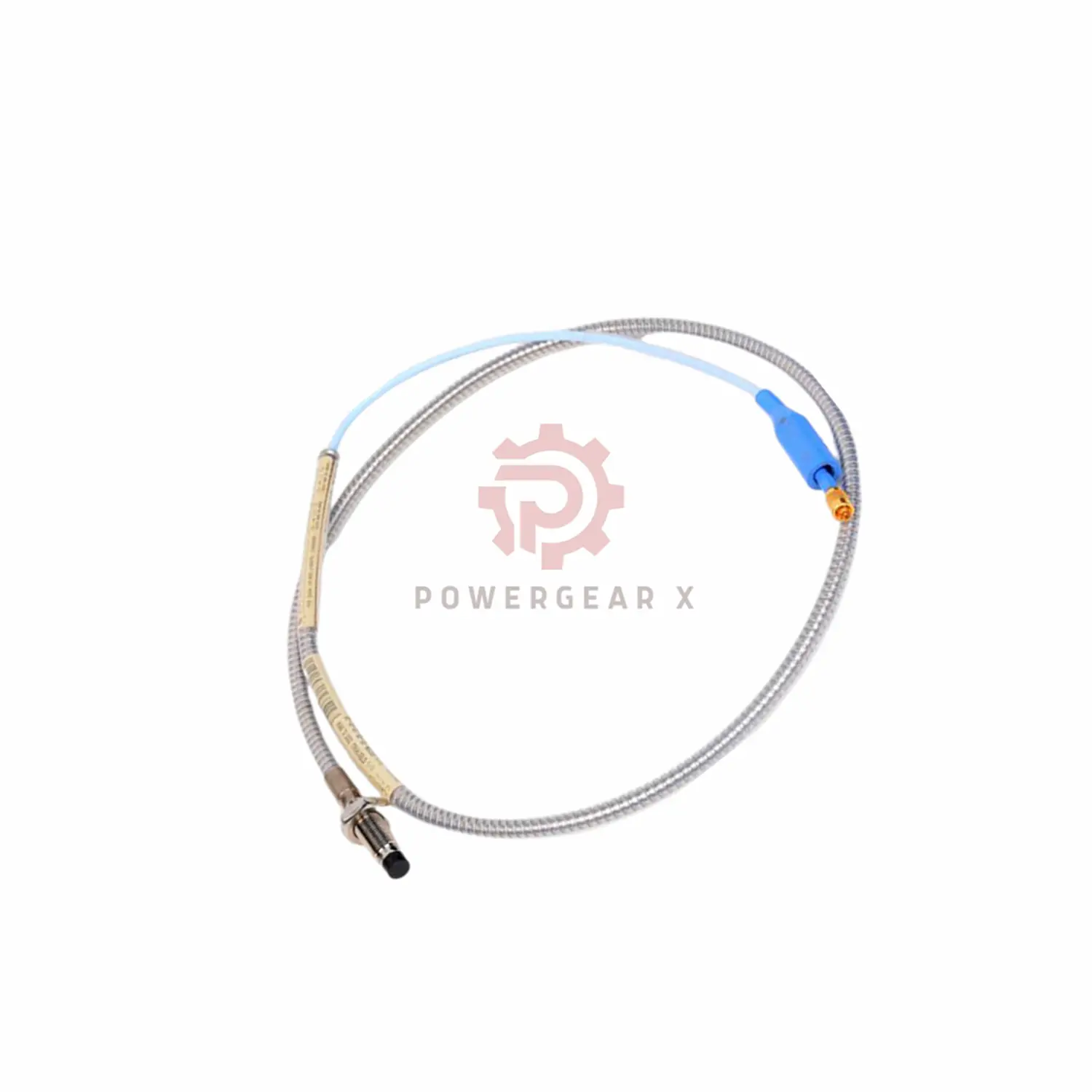

Bently Nevada 330101-00-08-10-02-05 Proximity Probe | 3300 XL 8 mm, 3/8-24 UNF Thread

Product Overview

The Bently Nevada 330101-00-08-10-02-05 is an 8 mm proximity probe designed for precise, rugged, and long-lasting performance in industrial machinery. It is used to monitor shaft vibration and position, helping protect critical equipment like turbines, compressors, and motors.

Core Technical Specifications

• Measurement Range: 2 mm (0.08 in)
• Linear Range: 0.25 mm to 2.3 mm
• Output Signal: 200 mV/mil ± 5% (7.87 V/mm)
• Accuracy: ±1 mil for 5 m system, ±1.5 mil for 9 m system
• DC Resistance: 7.59 ± 0.50 ohms
• Capacitance: 69.9 pF/m
• Operating Temperature: -52°C to +177°C (standard)
• Extended Temp Range: up to +260°C (cable & connector)
• Pressure Seal: Viton O-ring; differential pressure sealing
• Humidity Tolerance: < 3% ASF change in 93% RH (IEC 68-2-3)

Model Code Breakdown

• 330101 – 3300 XL 8 mm Probe
• 00 – 0.0 in Unthreaded Length
• 08 – 0.8 in Overall Case Length
• 10 – 1.0 m Total Cable Length
• 02 – Miniature coaxial ClickLoc connector, standard cable
• 05 – CSA, ATEX, IECEx Approvals

Installation Guide

• Mount probe perpendicular to the target surface
• Recommended gap: 1.27 mm (-9 Vdc)
• Use shielded triad cable for field wiring
• Max cable length between sensor and monitor: 305 meters

Package Includes

• 1 x Bently Nevada 330101-00-08-10-02-05 Probe
• Standard cable with ClickLoc connector
• User installation guide

Important Notes

• Warranty: 12 months standard
• Shipping: Via FedEx, UPS, DHL Express (global)
• Certificate of Origin: Available upon request
