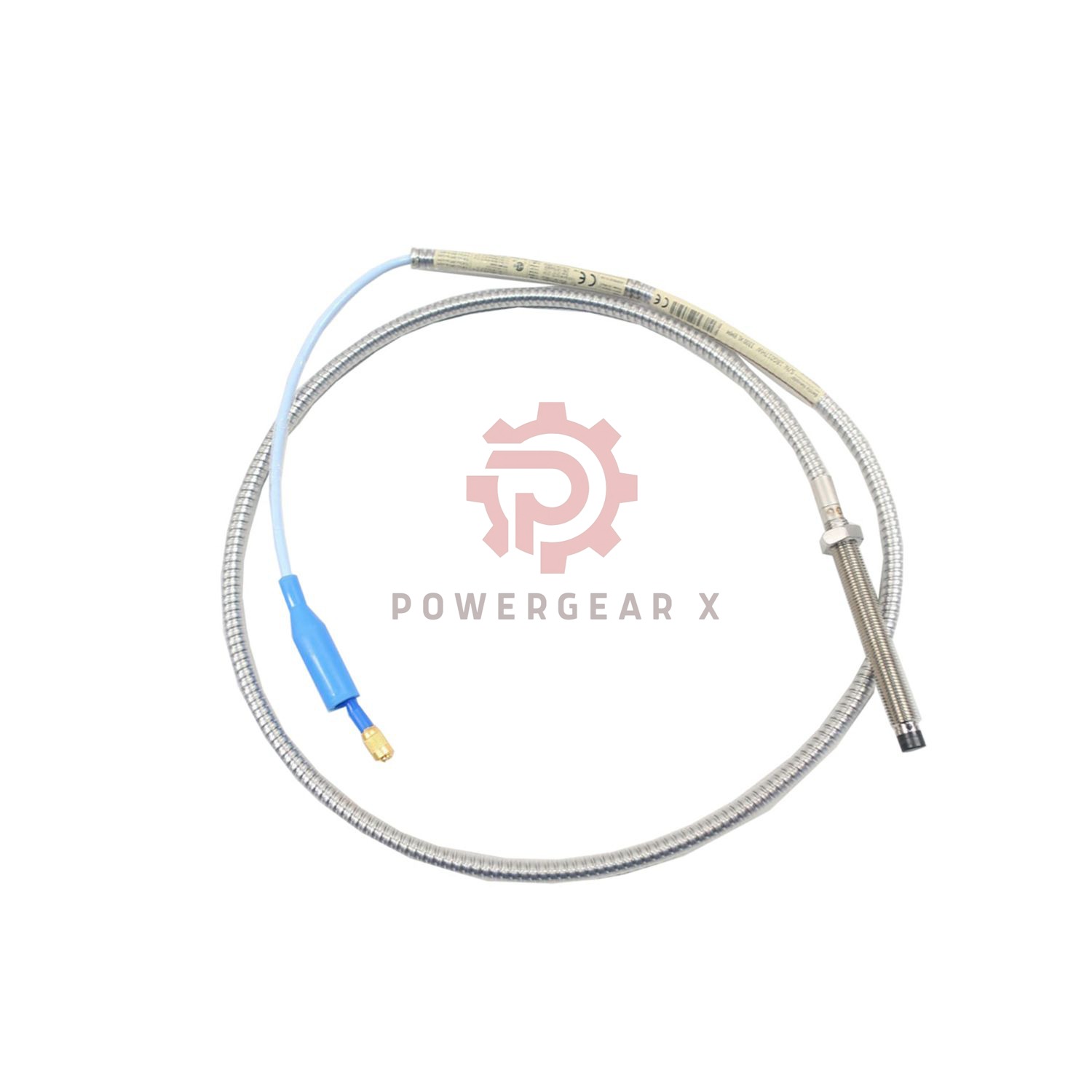

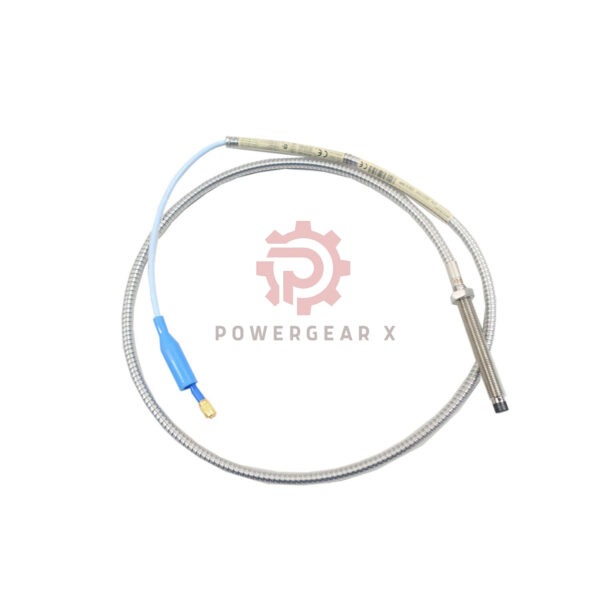

Bently Nevada 3300 XL 8mm Proximity Probe
Key Features
This 330101-00-55-10-02-05 industrial vibration sensor features an 8mm PPS probe tip with 3/8-24 UNF thread. Designed for continuous machinery health monitoring, it includes patented TipLoc™ molding and CSA/ATEX/IECEx certifications for explosive environments.
Suffix Configuration Breakdown
| Suffix | Parameter | Description |
|---|---|---|
| -00 | Unthreaded Length | 0.0 inch |
| -55 | Case Length | 5.5 inches (139.7mm) |
| -10 | Total Length | 1.0 meter cable |
| -02 | Connector | Mini ClickLoc™ Coaxial |
| -05 | Certification | Class I Div 1/ATEX Zone 0 |
Technical Specifications
| Parameter | Details |
|---|---|
| Brand/Model | Bently Nevada 330101-00-55-10-02-05 |
| Linear Range | 0.25-2.3mm (10-90 mils) |
| Temperature Range | -52°C to +218°C (Probe Tip) |
| Resistance | 7.59Ω ±0.50 @1m |
| Sealing | Viton® O-ring (330N pull strength) |
| Weight | 323g/m (11.4oz/ft) |
Special Options: FluidLoc™ anti-leakage cable | Extended temperature version (-60°C to +260°C)
Contact: sales@powergearx.com for pressure testing requirements
For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
