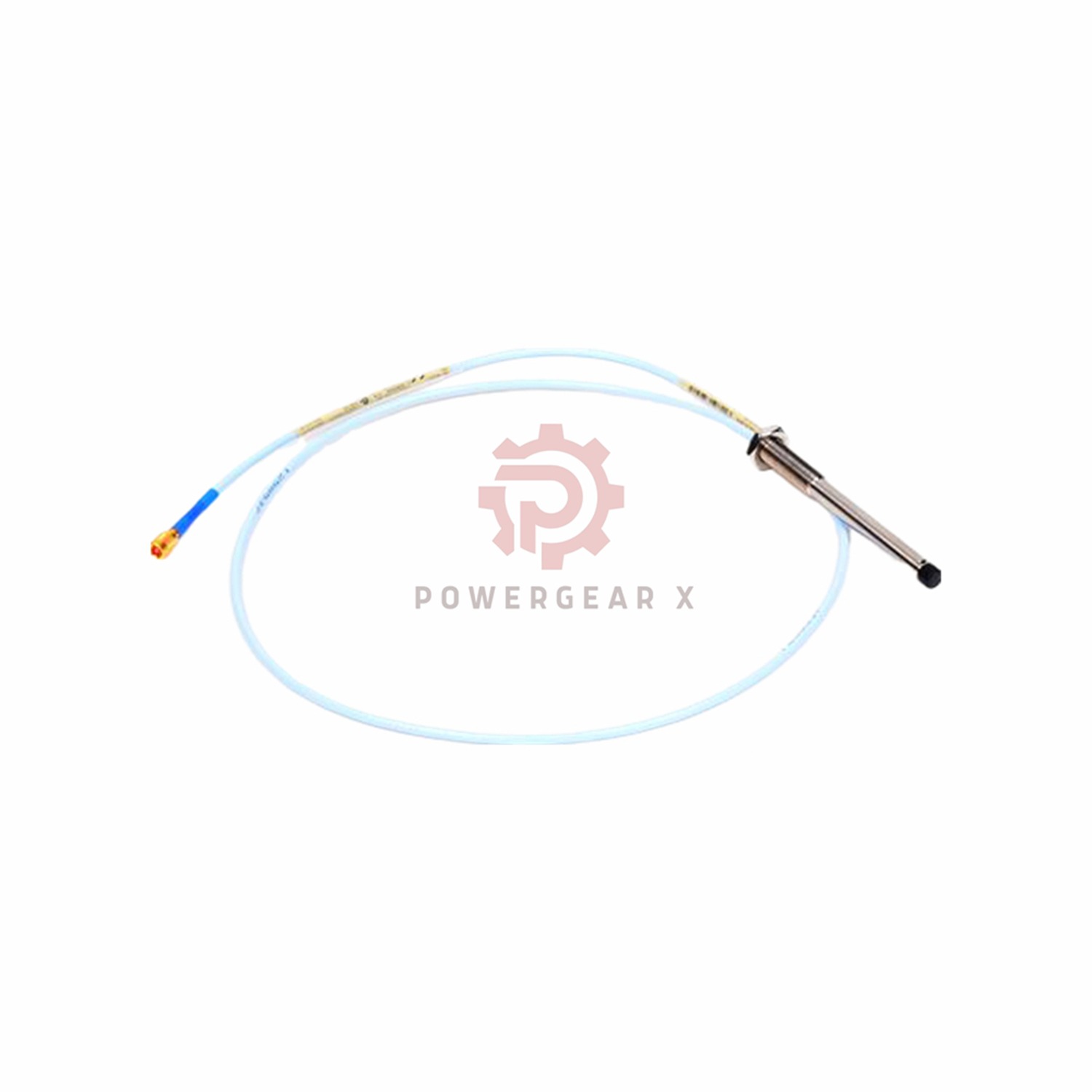

Bently Nevada 3300 XL 8mm Vibration Probe – 9m Cable (330101-00-20-90-02-CN)
Extended Length Vibration Sensor with Country Approval
The Bently Nevada 330101-00-20-90-02-CN vibration probe features a 9-meter (29.5 ft) cable length with country-specific compliance. This industrial-grade sensor combines extended reach with patented TipLoc technology for reliable machinery monitoring in demanding applications.
Product Identification
- Manufacturer: Bently Nevada
- Part Number: 330101-00-20-90-02-CN
- Cable Length: 9.0 meters (29.5 feet)
- Country Code: CN (Country Specific Approval)
- Probe Type: 8mm vibration sensor
- Thread: 3/8-24 UNF (unarmored)
- Case Length: 2.0 inches
- Origin: Made in USA
Configuration Details
| Option Code | Specification |
|---|---|
| 00 | 0.0″ unthreaded length |
| 20 | 2.0″ case length |
| 90 | 9.0m total cable length |
| 02 | Miniature coaxial ClickLoc connector |
| CN | Country Specific Approval |
Technical Specifications
Electrical Properties
- DC Resistance: 9.87 ± 0.50 Ω (9m length)
- Cable Capacitance: 69.9 pF/m typical
- Linear Range: 2mm (80 mils)
- Scale Factor: 7.87 V/mm (±6.5%)
Environmental Ratings
- Temperature Range: -52°C to +177°C
- Extended Temp: +218°C (probe tip)
- Humidity: <3% ASF change at 93% RH
- Seal Material: Viton® O-ring
Mechanical Properties
- Tip Material: PPS plastic
- Case Material: AISI 303/304 stainless steel
- Cable Type: Standard (FluidLoc optional)
- Weight: 323 g/m (11.4 oz/ft)
Contact Information
For any inquiries, please contact: sales@powergearx.com
For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
