Product details
Overview

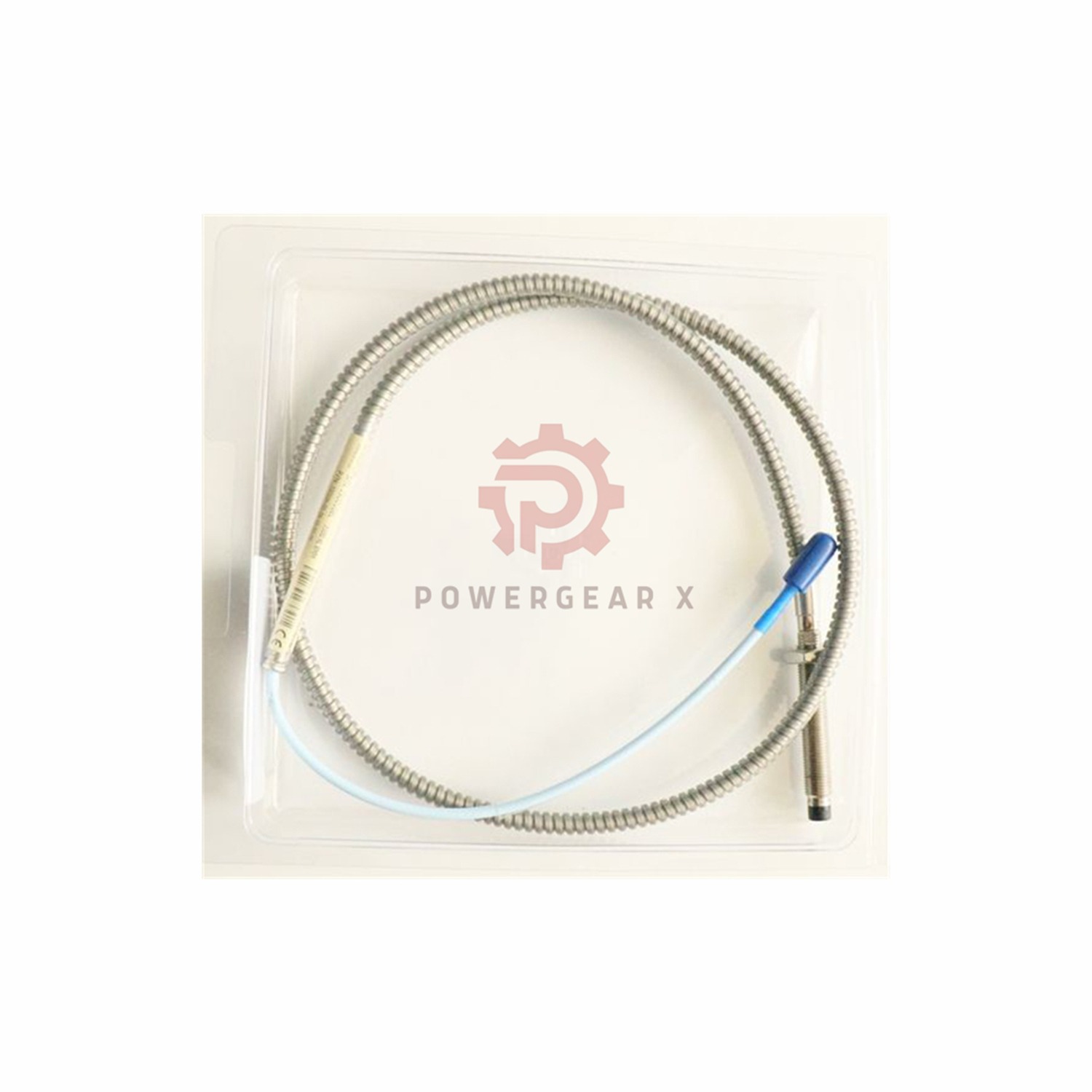

The Bently Nevada 330101-00-08-20-12-05 is a 3300 XL 8 mm probe without armor, manufactured in the U.S.A. It comes with the option to add a Certificate of Origin. This probe and its extension cable have been enhanced compared to previous designs, featuring a patented TipLoc molding method and CableLoc design. The FluidLoc cable option can prevent oil and other liquids from leaking through the cable interior.
Technical Specification
| Category | Details |
|---|---|
| Brand | Bently Nevada |
| Model | 330101-00-08-20-12-05 |
| Suffix Meaning | “00”: Unthreaded length of 0.0 in “08”: Overall case length of 0.8 in “20”: Total length of 2.0 meters (6.6 feet) “12”: Miniature coaxial ClickLoc connector, FluidLoc cable “05”: CSA, ATEX, IECEx Approvals |
| Extension Cable Capacitance | Typically 69.9 pF/m (21.3 pF/ft) |
| Field Wiring | 0.2 to 1.5 mm² (16 to 24 AWG), recommended to use 3 – conductor shielded triad cable and tinned wiring, max length 305 meters |
| Linear Range | 2 mm (80 mils), starting about 0.25 mm from the target (10 to 90 mils, – 1 to – 17 Vdc) |
| Recommended Gap | – 9 Vdc (approx. 1.27 mm or 50 mils) for radial vibration |
| Incremental Scale Factor | Varies by system length and temperature range, around 7.87 V/mm (200 mV/mil) with an error margin |
| Deviation from Best Fit Line | Less than ±0.025 mm (±1 mil) for 5 or 1 – meter standard systems and different values in other cases |
| Temperature Range | Standard: – 52°C to + 177°C; Extended: – 52°C to + 218°C (tip), – 51°C to + 260°C (cable and connector) |
| Pressure | Designed to seal differential pressure with a Viton® O – ring |
| Relative Humidity | Less than 3% change in Average Scale Factor (ASF) in 93% humidity for up to 56 days |
Contact Information
For any inquiries, please contact: sales@powergearx.com
For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
