Product details
Overview

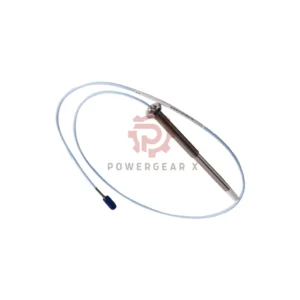

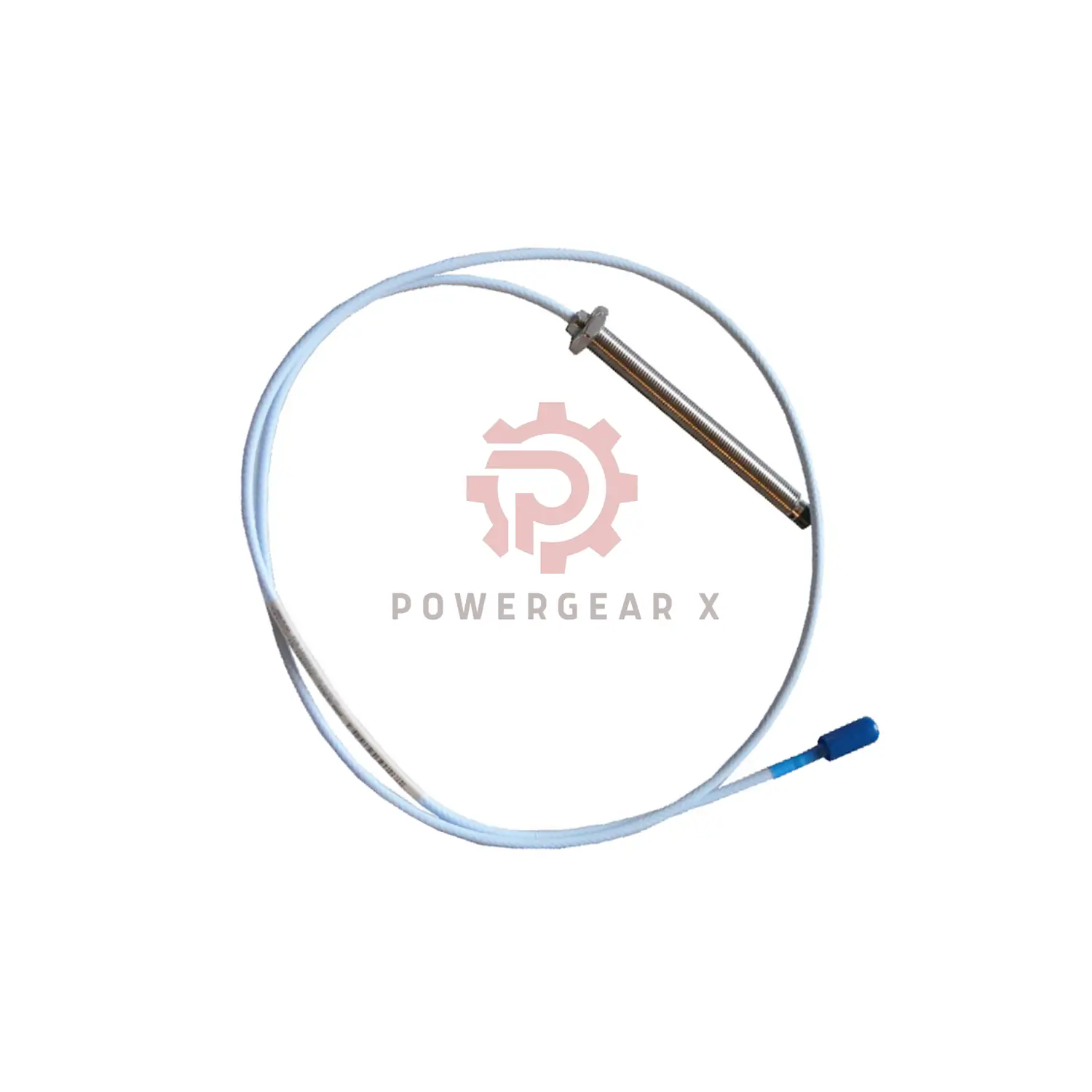

The Bently Nevada 330908-12-16-05-02-05 NSv Proximity Probe offers precise non-contact measurement for industrial applications. Designed with a 3/8-24 UNF thread and AISI304 stainless steel casing, this probe ensures durability. Additionally, it features a polyphenylene sulfide (PPS) tip for chemical resistance and a Viton O-ring pressure seal. Moreover, the probe operates across a wide temperature range (-52°C to +177°C) and includes multiple agency approvals for global compliance.
Technical Specifications
- Brand: Bently Nevada
- Model: 330908-12-16-05-02-05
- Suffix Breakdown:
- 12: Unthreaded length = 1.2 inches
- 16: Overall case length = 1.6 inches
- 05: Total cable length = 0.5 meters (20 inches)
- 02: Miniature coaxial ClickLoc connector
- 05: Multiple agency approvals
- DC Resistance: 4.0Ω ±0.5Ω (0.5m cable)
- Connector Torque: Max 33.9N·m (300in·lb), Recommended 11.3N·m (100in·lb)
- Thread Engagement Limit: 0.563 inches (3/8-24 thread)
- Weight Range: 14-150g (0.5-5.3oz)
- Cable Insulation: FEP fluoropolymer
- Impedance: 75Ω coaxial
Performance Details
- Withstands differential pressure sealing between tip and case
- Maintains functionality after storage at -52°C to +177°C
- Avoid sustained exposure below -34°C to preserve pressure seals
