Product details
Overview

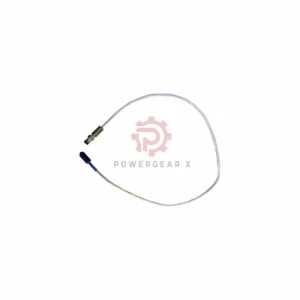

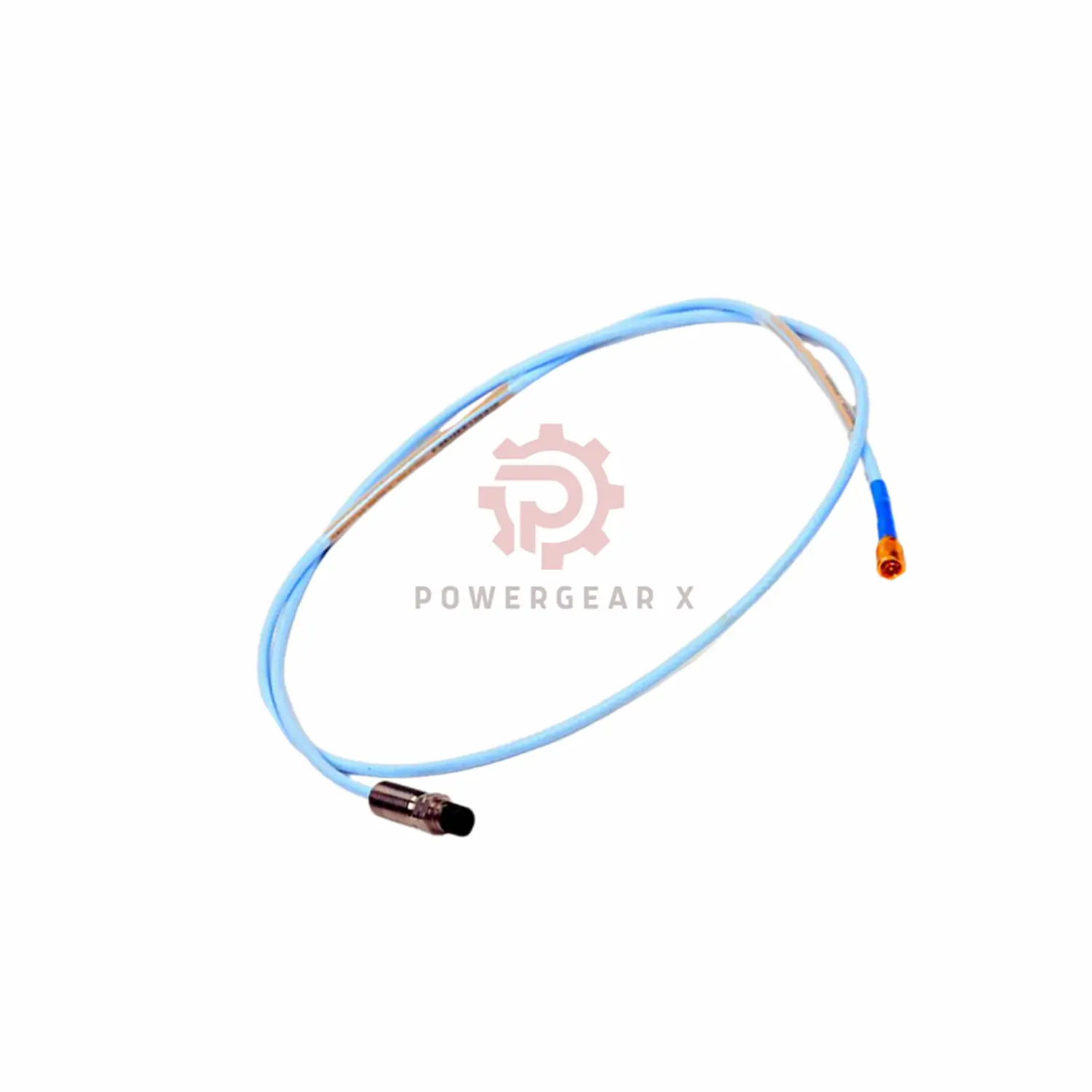

The Bently Nevada 3300 NSv Proximity Probes (Model: 330905-00-06-50-12-00) deliver industrial-grade vibration monitoring with extended 5.0m FluidLoc™ cables. Designed for harsh environments, this 60mm-case probe combines chemical resistance with superior side-view accuracy. Directly compatible with legacy 3300 RAM systems, it’s ideal for oil/gas compressors and high-vibration zones.
Technical Specifications
◍ Model Suffix Breakdown ◍
330905-00-06-50-12-00
- -00 : Unthreaded length (0 mm)
- -06 : Case length (60 mm)
- -50 : Total cable length (5.0 meters/16.4 ft)
- -12 : ClickLoc connector + FluidLoc™ cable
- -00 : No agency approvals required
◍ Performance Highlights ◍
| Parameter | Value | Notes |
|---|---|---|
| Probe Resistance | 5.3Ω ±0.7 | @5.0m cable |
| Cable Type | FluidLoc™ (IP68-rated submersible) | |
| Burst Pressure | 35 bar | FluidLoc™ exclusive |
| Axial Error | <0.8% FSO | @1mm gap |
◍ Advanced Metrics ◍
- Fluid Resistance: Resists ASTM Oil #3 ×500hrs
- Cable Flexibility: 20,000+ bend cycles (15mm radius)
Ordering Details
- Special Feature: FluidLoc™ cables for submerged/fluid exposure
- Bundle Options: Proximitor® sensor pairs (+$220)
Contact Us
Phone: +86 180 3000 5825
Email: sales@powergearx.com
There are no reviews yet.
