Proximity Probe Housing Assemblies | 31000-28-05-00-028-01-02

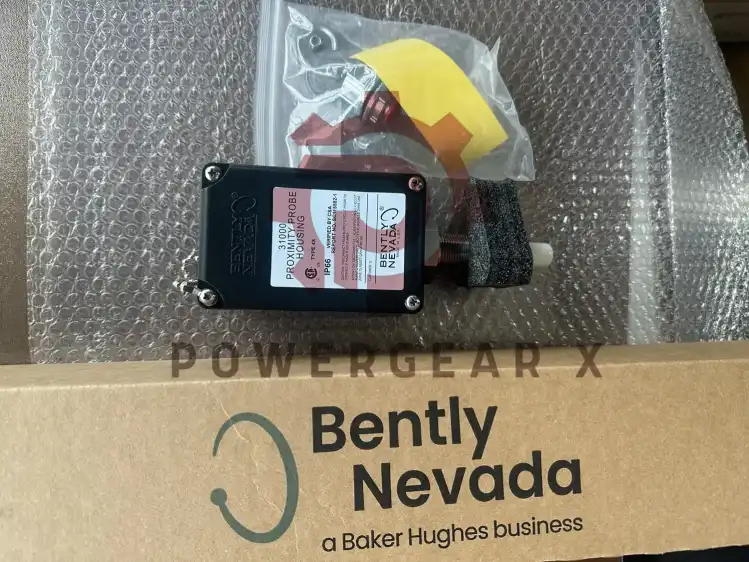

Bently Nevada 31000-28-05-00-028-01-02 Proximity Probe Housing

Core Features

• Explosion-Proof Design – ATEX/IECEx/CSA certified
• -51°C to +105°C operation range
• 4X/IP66 Rating – Dust/water/jet spray protection
• 8mm Probe – Precision measurement in tight spaces

Model Code Breakdown

• 31000 – Probe housing series
• 28 – 8mm XL probe with multi-certifications
• 05 – 0.5m cable (20″)
• 00 – No standoff adapter
• 028 – 2.8″ probe penetration
• 01 – 3/4-14 NPT fitting + plugs
• 02 – 3/4-14 NPT mounting thread

Technical Specifications

• Impact Resistance: 7J (5.2ft·lb) at room temp
• Housing Material: Conductive PPS thermoplastic
• Sealing: Neoprene® O-rings (FDA compliant)
• Torque Spec: 29.4N·m (260in·lb)

Industrial Applications

• Oil Refinery Pumps – Safe in Zone 1 hazardous areas
• Food Processing Conveyors – Washdown-ready IP66 protection
• Arctic Mining Equipment – Operates at -51°C

Installation Guide

• Use 3/4-14 NPT thread sealant
• Maximum 2.8″ penetration depth
• Annual O-ring inspection recommended

FAQ

• Q: Chemical resistance?
  A: Resists oils/acids – Avoid ketones
• Q: Replacement interval?
  A: 5-7 years typical lifespan
• Q: Grounding required?
  A: Yes – Conductive housing prevents static

Shipping Info

• 📦 1.2kg – DHL/FedEx/UPS Global
• 🔧 24-month warranty
