Proximity Probe | Bently Nevada 330701-00-50-10-12-05 with FluidLoc Cable

5-Inch Probe with FluidLoc Seal for Wet & Oily Environments

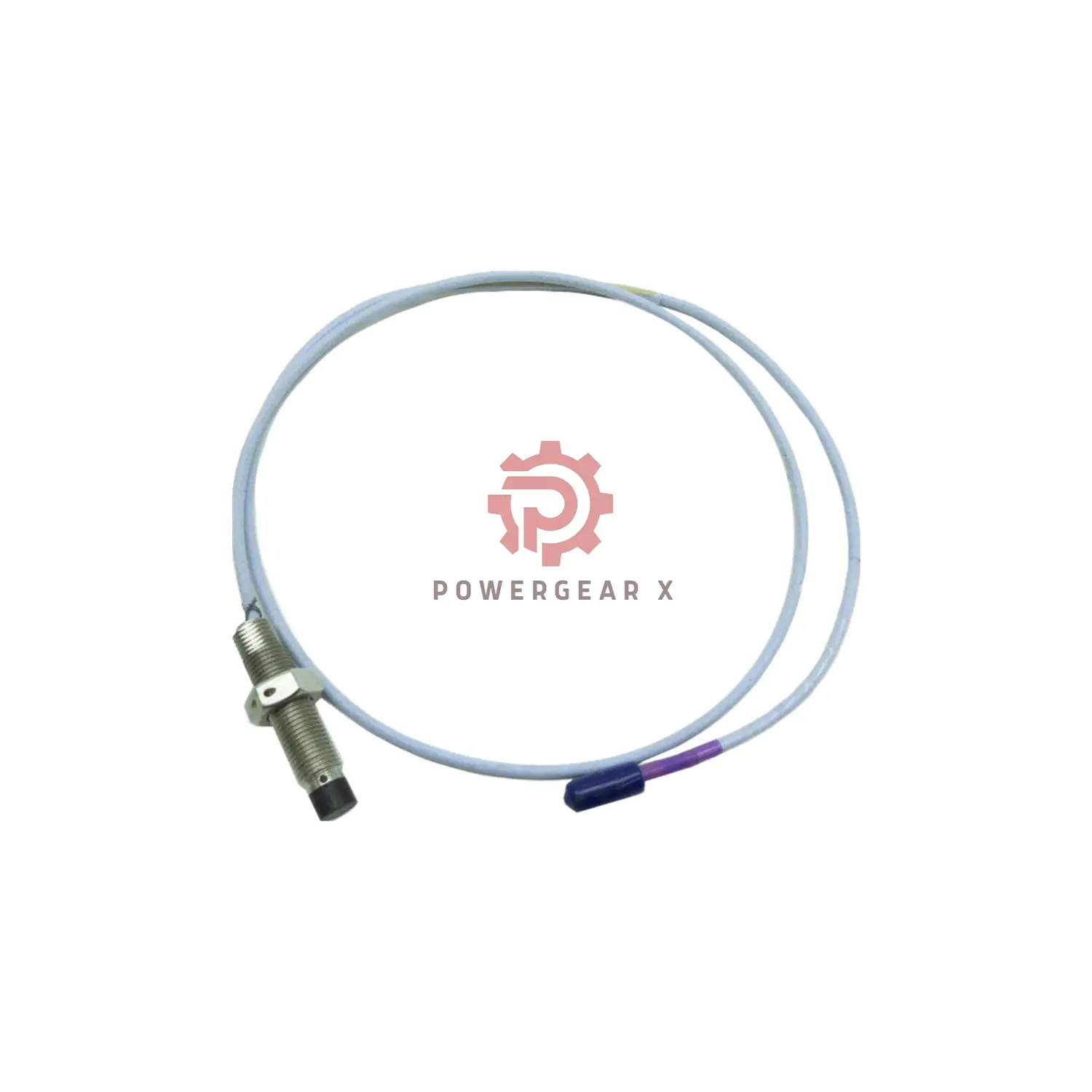

This is the Bently Nevada 330701-00-50-10-12-05, a high-specification 3300 XL series probe. It combines a long 5-inch (127mm) stainless steel case with a sealed FluidLoc cable system. Ideal for applications where fluid ingress is a concern. The probe holds multiple international safety approvals. It is new, original, and made in the USA, backed by a reliable 12-month manufacturer warranty.

Need a Quote or Technical Data? Contact us: sales@powergearx.com or +86 18030005825 (WhatsApp).

Engineered for Challenging Conditions

• FluidLoc Cable System: Special seal prevents oil and coolant from wicking into the connector.
• Long 5-Inch Case: Provides deep mounting capability and extra stability in high-vibration areas.
• 1/2-20 UNF Thread: Common imperial thread size for North American industrial equipment.
• Multiple Global Approvals (-05): Certified for use in various hazardous and safe area classifications worldwide.
• Wide Temperature Tolerance: Reliable operation across an extreme temperature range.

Detailed Technical Parameters

• Brand & Series: Bently Nevada 3300 XL 11mm Probes
• Complete Part Number: 330701-00-50-10-12-05
• Thread Standard: 1/2-20 UNF (Unified National Fine).
• Case Dimensions: Overall Length: 5.0 inches (127 mm). Unthreaded Length: 0 inches.
• Cable Technology: 1.0 meter triaxial cable with FluidLoc anti-wicking seal.
• Electrical Resistance: 5.9 Ohms (±0.5 Ω) measured at 1m cable length.
• Connection: Miniature ClickLoc coaxial connector.
• Material Build: AISI 304 SST housing, PPS sensing tip, Viton O-ring seal.
• Installation Torque: Recommended: 15.2 N·m (133 in·lb). Maximum: 45.2 N·m.
• Max Thread Engagement: 0.750 inches (19.05 mm).
• Product Weight: Approximately 0.17 kg (0.37 lbs).
• Operating Temperature: -51°C to +177°C (-60°F to +351°F).
• Key Temperature Note: Storage below -34°C may degrade the internal pressure seal over time.
• Cable Bend Radius: Minimum 25.4 mm (1.0 inch).

Installation & Best Practices

• Check Hole Depth: Ensure your mounting hole is deep enough to accommodate the full 5-inch probe length.
• Utilize FluidLoc Advantage: This probe is specifically chosen for wet areas. Still, ensure the connector itself is kept clean and dry during mating.
• Torque Precisely: Apply force to the probe’s hex flats using a torque wrench. Achieve 15.2 N·m for optimal sealing without damage.
• Certification Compliance: File the provided multi-approval certificates with your machine documentation for safety audits.

Order & Delivery Information

• Product: One Bently Nevada 330701-00-50 proximity probe.
• Quality Assurance: 100% new, genuine, in unopened factory packaging.
• Warranty Protection: Full 12-month international warranty against defects.
• Shipping Options: Fast global delivery via FedEx, DHL, or UPS.
• Our Support: We assist with product selection, system compatibility, and provide necessary documentation.

Specialist FAQs: FluidLoc & Long Case Probes

Sealing Technology

Q: What is the main difference between FluidLoc and a standard cable?

A> FluidLoc has an added barrier at the point where the cable enters the probe. It actively blocks liquids from traveling up the cable jacket under capillary action, which standard cables cannot prevent.

Q: Is the FluidLoc seal replaceable or serviceable?

A> No. The FluidLoc seal is a permanent, factory-installed feature of the cable assembly. The entire probe and cable are supplied as one sealed unit.

Application & Selection

Q: When should I choose this 5-inch long case probe?

A> Select this 330701-00-50 model when you need to mount through a thick housing, bracket, or insulation layer, requiring extra probe length to reach the target shaft.

Q: Can I use this probe in a steam turbine application?

A> Yes. Its high-temperature rating, FluidLoc seal, and multiple approvals make it suitable for such demanding environments. Always verify the specific approvals match your plant’s requirements.

Procurement & Service

Q: How quickly can you ship the 330701-00-50-10-12-05?

A> We typically ship in-stock items within 1-2 business days via your choice of FedEx, DHL, or UPS express services. Contact us for an exact delivery estimate.
