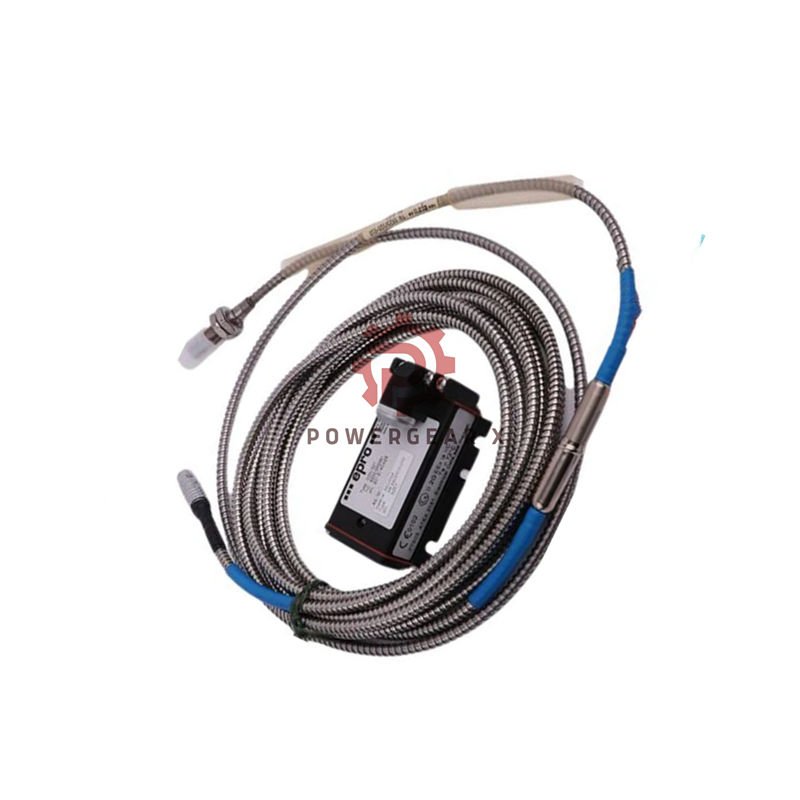

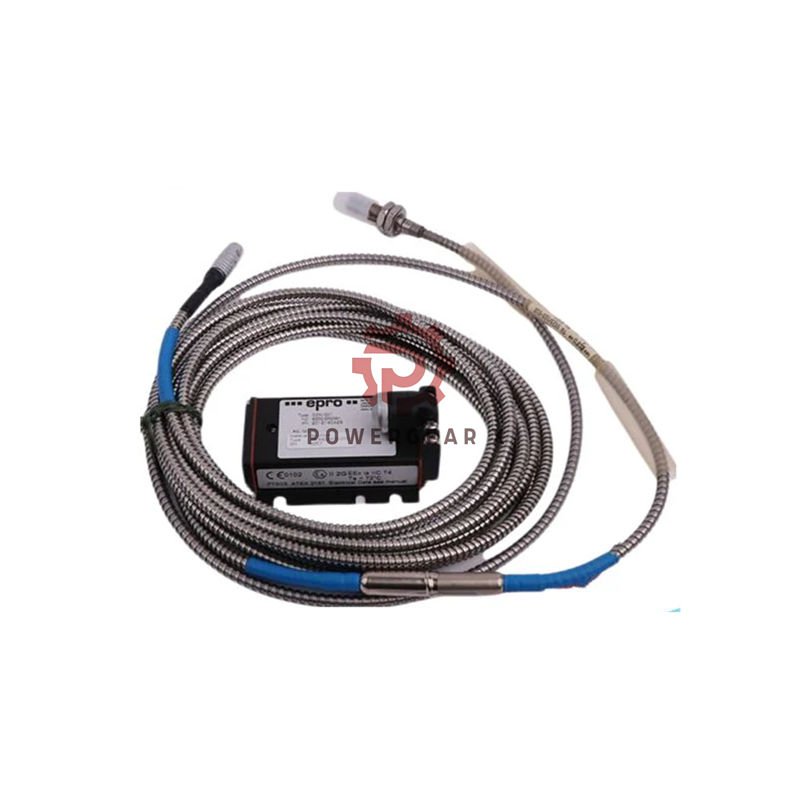

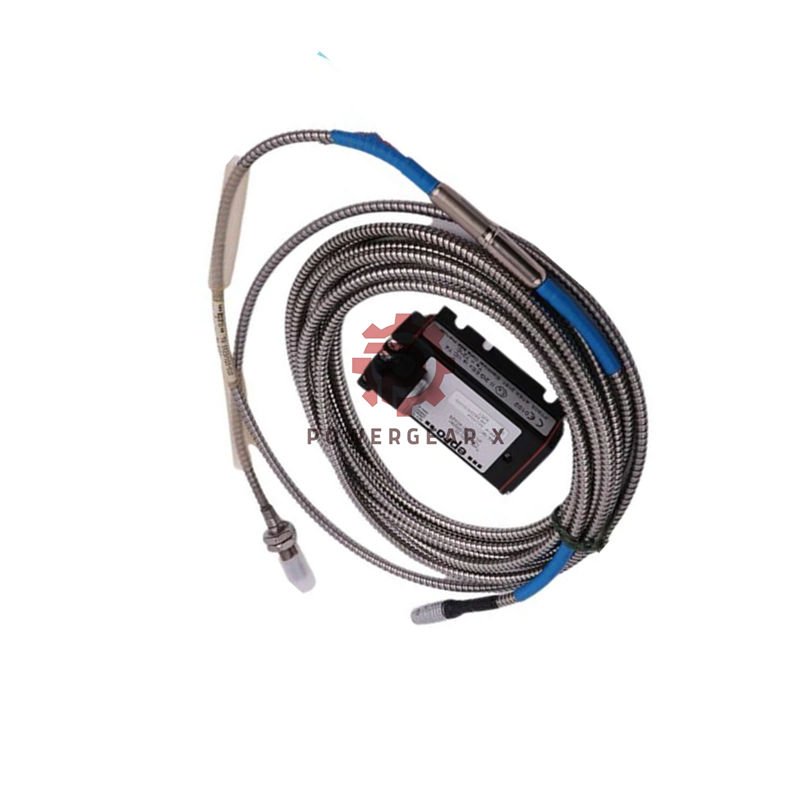

PR6423/010-000 8mm Sensor | Shaft Displacement Measurement

PR6423/010-000 Eddy Current Sensor: Precision Vibration Monitoring

This 8mm non-contact sensor measures shaft vibration and position. It works on turbines, compressors, and gearboxes. The robust design handles extreme temperatures and harsh environments.

Key Features & Benefits

•  2mm linear measurement range
•  High accuracy ±0.025mm deviation
•  Wide temperature range: -35°C to +180°C
•  IP66 protection against dust and water
•  Intrinsic safety certifications for hazardous areas
•  12-month warranty

Technical Specifications

• Brand: Emerson EPRO
• Model: PR6423/010-000
• Sensor Diameter: 8mm
• Mounting Thread: M10x1
• Scale Factor: 8 V/mm ±5%
• Frequency Response: 0-10 kHz
• Target Material: 42CrMo4 steel
• Minimum Shaft Size: 25mm diameter
• Cable Type: Armored PTFE
• Connector: Lemo type
• Weight: 100 grams with cable

Model Configuration Tree

• Base Model: PR6423/010-000
• Case Length Options:
  • 25mm standard length
• Cable Options:
  • 4.0 meter standard length
  • Armored protection
• Connector Options:
  • Lemo connector included

Certifications & Safety

• CE compliant for European market
• ATEX certified for explosive atmospheres
• IEC-Ex international safety standard
• CSA approved for North America
• Intrinsic Safety (ia) protection level
• Temperature classifications T3, T4, T6

Shipping & Support

• Global shipping via FedEx, UPS, DHL
• Express delivery options available
• Full 12-month product warranty
• Technical documentation included
• Installation support provided

Expert Questions Answered

• What is the minimum shaft size for measurement?
• The sensor requires a minimum 25mm diameter shaft for proper operation.
• Can it measure both vibration and position?
• Yes, it measures radial and axial displacement plus shaft position.
• What temperature can the sensor withstand?
• It operates from -35°C to +180°C, suitable for most industrial applications.
• Is this sensor safe for hazardous areas?
• Yes, it has ATEX, IEC-Ex and CSA certifications for explosive atmospheres.
• What is the typical installation air gap?
• Set the initial air gap to 0.5mm from the target shaft surface.

Ordering & Contact Details

• Email: sales@powergearx.com
• WhatsApp: +86 18030005825
• Custom configurations available
• Bulk pricing for large orders
