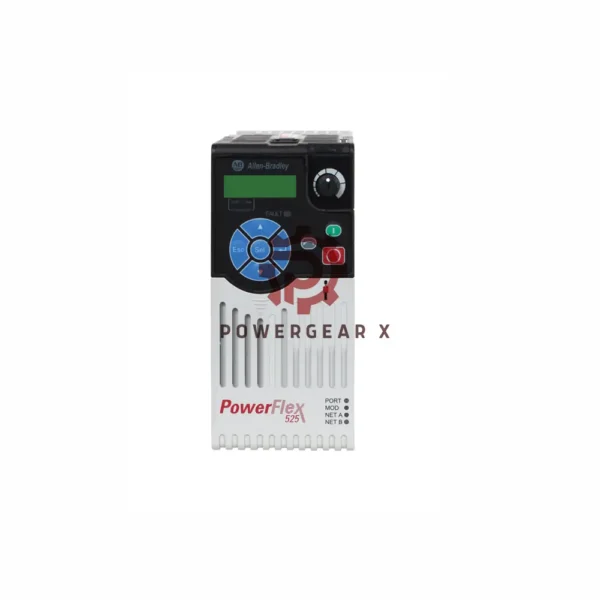

Allen-Bradley 25B-A2P5N104 PowerFlex 525 VFD: Precision Motor Control
Compact industrial drive for 3-phase motors (0-500Hz). Ideal for pumps, conveyors, and HVAC systems. Built-in Ethernet/IP and safety features. 12-month warranty included.
Technical Specifications
- Brand: Allen-Bradley (Rockwell Automation)
- Model: PowerFlex 525 – 25B-A2P5N104
- Input: 170-265VAC, 1-phase, 6.5A
- Output: 0-240VAC, 3-phase, 2.5A, 0.4kW
- Frequency Response: 0-500 Hz
- Resolution: 0.01 Hz speed control
- Temp Range: -20°C to 50°C (derated to 60°C)
- Humidity: 5-95% non-condensing
- Certifications: IEC 60721-3-3 (3C2)
Installation & Setup
- Mounting: DIN rail or panel
- Zero Stacking: Multi-drive installations
- EMC Note: External filter required
- Compatibility: Motors ≤0.4kW
Communication Ports
- Built-in: Ethernet/IP, RS485/DSI
- Optional: DeviceNet, ProfiBus DP
Protection & Diagnostics
- Fault Detection: Overcurrent, ground fault, short circuit
- Stop Modes: Ramp, coast, DC-brake
- Real-time Monitoring: Via Ethernet/IP
FAQ
- Q: Ungrounded system support?
A: Yes, via removable MOV - Q: Communication add-ons?
A: Yes (ProfiBus, DeviceNet) - Q: EMC filter included?
A: No; install externally
Packaging & Support
- Contents: VFD unit, manual
- Shipping: FedEx, UPS, DHL
- Warranty: 12 months
Download Manual
Why Choose 25B-A2P5N104?
- Simple Setup: DIN rail/panel mounting
- Rugged: Harsh environment operation
- Smart Control: Built-in Ethernet/IP
- Versatile: Ideal for HVAC to mining
