PowerFlex 520 | AC Drive In Stock 25B-E6P6N104

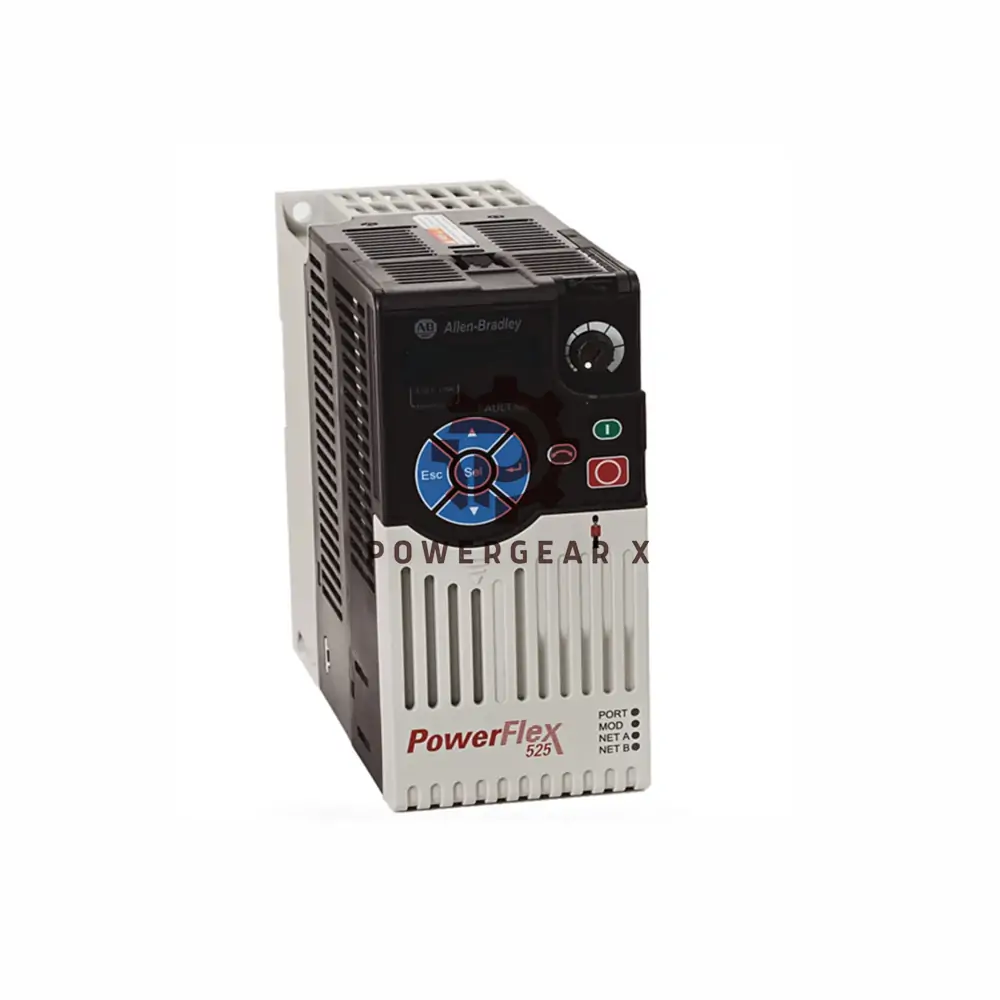

Allen-Bradley 25B-E6P6N104 PowerFlex 525 Drive

5HP industrial VFD for 600V applications. Features advanced motor control and safe torque-off.

Technical Specifications

• Model: 25B-E6P6N104
• Input Voltage: 446-660V AC
• Output Voltage: 0-575V AC
• Frequency Range: 0-500Hz
• Overload Capacity: 150% for 60 sec
• Temp Range: Up to 70°C
• I/O:
  • 7 digital inputs
  • 2 analog inputs
  • 2 relay outputs

Advanced Capabilities

• PointStop positioning technology
• Permanent magnet motor control
• Multi-drive networking (up to 5 drives)
• Dual Ethernet/IP ports
• USB programming port

Order & Support

• Fast shipping: FedEx, UPS, DHL
• 12-month warranty
• Certifications: CE, UL, cUL

Technical FAQ

• Q: What’s the voltage trip point?
  A: Overvoltage trip at 1005V DC (711V AC)
• Q: Can I network multiple drives?
  A: Yes, supports up to 5 drives per node
• Q: What’s the mounting clearance needed?
  A: Requires 50mm airflow gap
• Q: Does it support position control?
  A: Yes, with PointStop technology
• Q: What motor types are supported?
  A: Standard, PM, and vector control motors

Download Resources

• Complete manual: PowerFlex 525 Series Guide (PDF)
