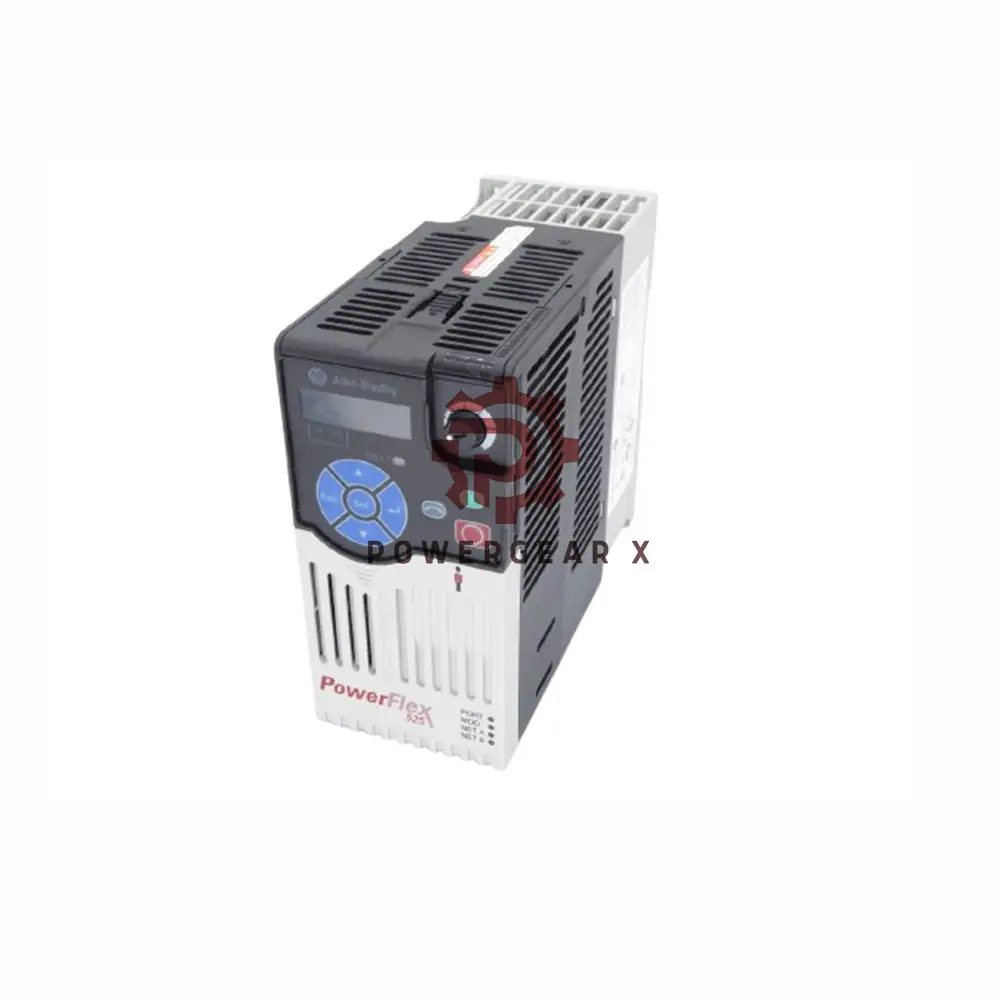

Allen-Bradley 25B-D2P3N314 PowerFlex 525 Drive – Compact 1HP Solution

• 📘 Download Product Manual

Precision Power in Small Package

The Allen-Bradley 25B-D2P3N314 packs big performance in Frame A. Perfect for 1HP motors with 480V 3-phase power. Built-in EMC filter ensures clean operation.

Enhanced Specifications

• ⚡ Power Output: 1 HP (0.75 kW)
• 🔌 Input Voltage: 480V AC 3-Phase
• 📊 Output Current: 2.3 Amps
• 📶 Frequency Range: 0-500 Hz
• 🔄 Braking System: IGBT Transistor
• 🌡️ Temp Range: -20°C to +50°C
• 💧 Protection: IP20 NEMA Open
• ⚙️ Control Methods: V/Hz + Vector

Compact Power Advantages

• ✅ Space Saver: Frame A fits tight spots
• 🔇 Noise Fighter: Integrated EMC filter
• ⚡ Quick Stop: IGBT braking technology
• 🔌 Easy Wiring:
  • 7 digital inputs
  • 2 analog inputs
  • 1 analog output
• 💼 Mounting Flexibility: Panel or DIN rail

Global Delivery Options

• 📦 FedEx Ground (2-5 business days)
• 🚚 UPS 3-Day Select
• ✈️ DHL Express Worldwide
• 🛡️ 12-month warranty

Compact Drive FAQs

• Q: Suitable for small motors?
  A: Perfect for 1HP (0.75kW) applications
• Q: Included noise protection?
  A: Yes, built-in EMC filter
• Q: Braking capability?
  A: IGBT brake for quick stops
• Q: Network connectivity?
  A: Ethernet/IP ready
• Q: Dimensions for tight spaces?
  A: Compact Frame A design
