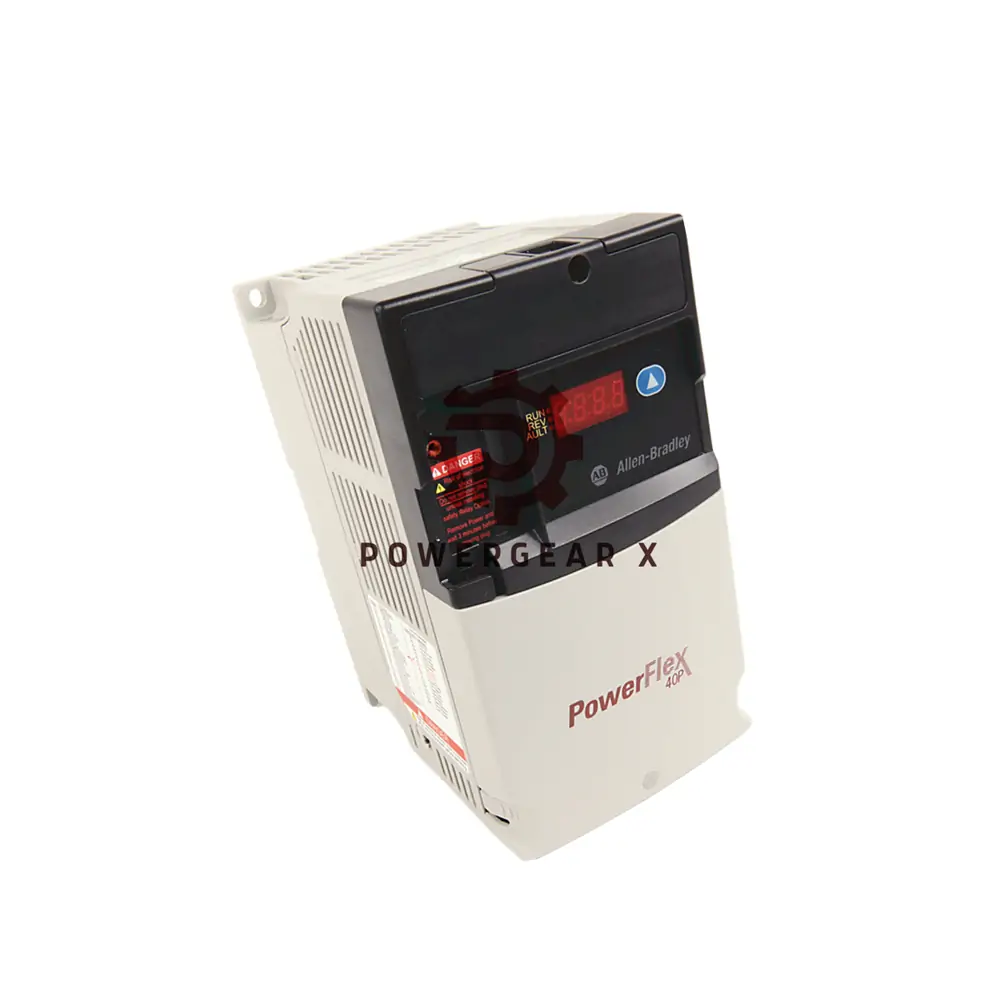

Allen-Bradley 22D-D1P4H204 Drive: Compact Motor Control Solution
Control small motors precisely with the 22D-D1P4H204 PowerFlex 40P drive. This plate-mounted unit delivers 0.5HP power for tight spaces. Perfect for closed applications needing speed control.
Essential Specifications
Brand: Allen-Bradley
Model: 22D-D1P4H204
Power: 0.5HP (0.4kW) | 1.4A output
Voltage: 480V AC 3-phase (±10% tolerance)
Dimensions: Plate mount | Frame Size B
Temp Range: -10°C to 50°C operation
Humidity: 5-95% non-condensing
Motor Control Features
- V/Hz and Sensorless Vector control
- ±1% speed regulation (80:1 range)
- 150% overload for 60 seconds
- Class 10 motor overload protection
- Removable MOV for surge protection
Advanced Connectivity
- 7 digital inputs (5 programmable)
- 2 analog inputs (0-10V DC/4-20mA)
- 1 programmable relay output
- RS-485 communication port
- DIP switch for sink/source control
Environmental Compatibility
- Plate mount (IP20 enclosure)
- Non-condensing humidity tolerance
- Storage temp: -40°C to 85°C
- 48-63Hz frequency range
Package & Support
Included: Drive unit, mounting hardware
Warranty: 12 months coverage
Shipping: FedEx, UPS, DHL express
Certifications: Standard (no CE filter)
Expert Questions Answered
Q: What control methods does this drive support?
A: V/Hz and Sensorless Vector control
Q: How many digital inputs are programmable?
A: 5 of 7 digital inputs are programmable
Q: What overload capacity does it have?
A: 150% for 60 seconds, 200% for 3 seconds
Q: Can I connect analog sensors?
A: Yes, supports 0-10V DC and 4-20mA inputs
Q: Is PC programming supported?
A: Yes, via RS-485 communication port
