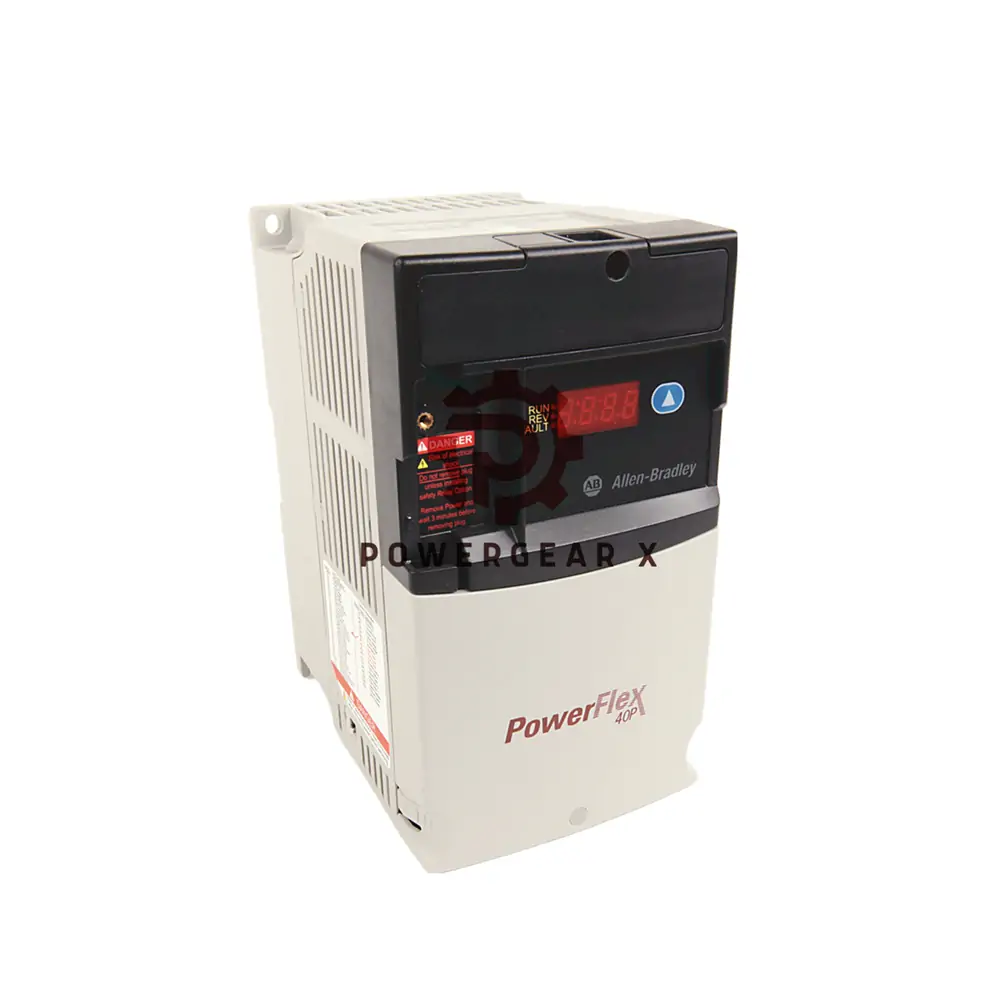

Precision Motor Master: Allen-Bradley PowerFlex Drive (22D-E1P7N104)

Control 1HP motors with the Allen-Bradley 22D-E1P7N104. Perfect for industrial systems needing smooth speed changes.

Technical Specs

• Model: 22D-E1P7N104
• Power: 1 HP (0.75 kW)
• Voltage: 600V AC 3-phase
• Current: 1.7A
• Frequency Range: 0-500Hz
• Efficiency: 97.5%
• Overload: 150% for 1 minute
• Cooling: 50W heat dissipation
• Dimensions: 204x125x100mm

Top Features

• Surge Protection: Built-in MOV shields from spikes
• Instant Response: Halts in 0.1 seconds during faults
• Smart Braking: IGBT dynamic braking option
• Shock Proof: Survives 15G impacts
• Global Approval: CE/UL/AS/NZS certified

Setup Guide

• Mount vertically on panels
• Keep 50mm clearance for airflow
• Set acceleration in 0.1-second steps

Support Details

• Warranty: 12 months
• Shipping: FedEx/UPS/DHL worldwide
• Operating Temp: -10°C to 50°C

Professional FAQs

Q: Power loss recovery time?
A: Runs 100ms through outages.

Q: Speed control accuracy?
A: ±0.05% with digital inputs.

Q: Braking resistor support?
A: Yes – for heavy loads.

Q: Vibration tolerance?
A: 1G at 5-2000Hz.

Q: Short-circuit protection?
A: 100,000A fault rating.
