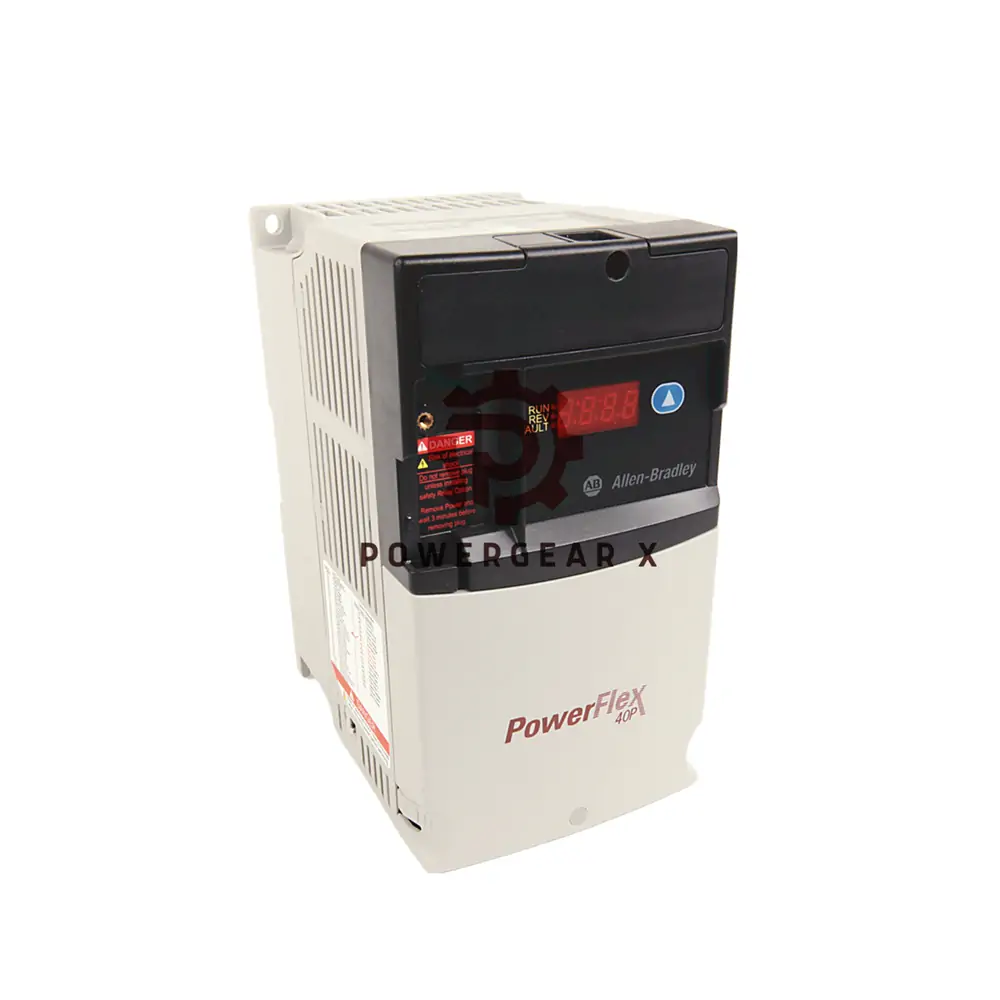

Allen-Bradley 22D-D024N104 PowerFlex 40P AC Drive: Precision Motor Control
Overview
Optimize motor speed and cut energy costs with the Allen-Bradley 22D-D024N104. This 15 HP drive offers flexible control for pumps, fans, and conveyors. Easy setup saves space and time.
Technical Data
Brand: Allen-Bradley
Model: 22D-D024N104
Electrical Performance:
– Input: 380-480V AC 3-phase, 26A
– Output: 11 kW (15 HP), 24A, 0-500 Hz
– Control: Volts/Hz, Sensorless Vector, PWM
Physical Specs:
– Dimensions: 260 x 130 x 180 mm (C-Frame)
– Enclosure: IP20/NEMA Open (Panel Mount)
– Operating Temp: -10°C to 50°C (14°F to 122°F)
I/O Capabilities:
– 7 digital inputs, 2 opto outputs
– 1 analog input (0-10V/0-20mA)
– 1 analog output (0-10V/0-20mA)
Installation & Setup
Mount in panels with IP20 protection. Use branch circuit protector 140M-F8E-C32 and contactor 100-C43. Zero Stacking simplifies wiring.
Compatibility & Certifications
Works with 3-phase AC motors. CE compliant (no external filter needed). Supports protocols via add-on cards: BacNet, ControlNet, LonWorks.
Package & Warranty
- Drive unit, user manual
- 12-month warranty
- Shipping: FedEx, UPS, DHL (global)
Diagnostic Capabilities
Monitors voltage (trip points: 810V DC overvoltage/390V DC undervoltage). Tracks motor temperature and load spikes.
FAQ
Q: Can it run single-phase motors?
A: No, 3-phase only.
Q: Is a cooling fan included?
A: Yes, integrated thermal management.
Download Manual
Get full wiring diagrams and parameter lists:
