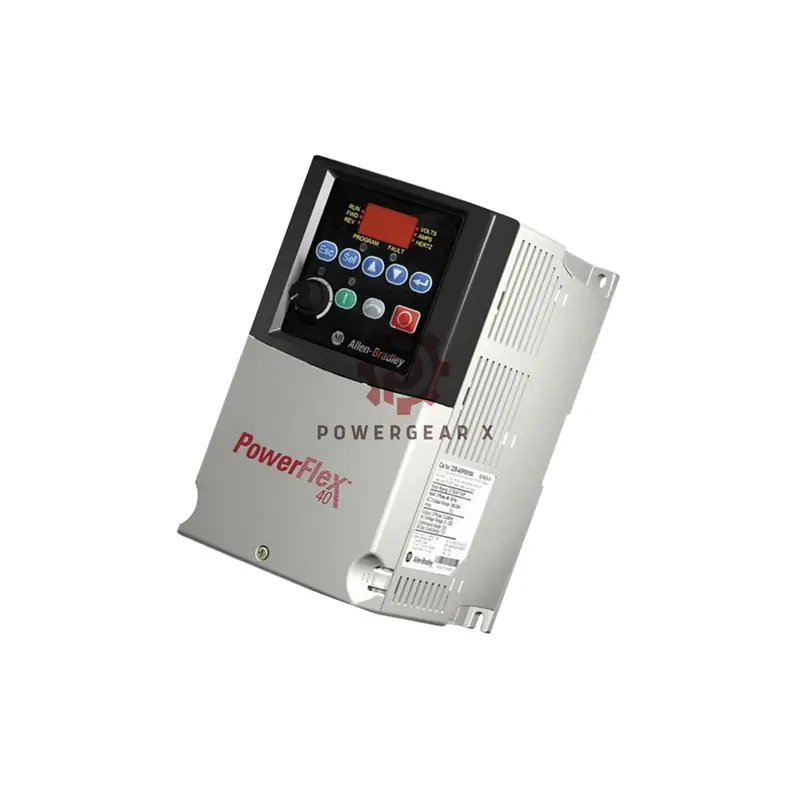

Allen-Bradley 22B-E4P2N104 Drive: Advanced 3HP Motor Control
Experience precision control with the 22B-E4P2N104. This 3HP drive features sensorless vector technology and flexible mounting for space-constrained installations.
Technical Specifications
- Power System
- Input: 460-600V AC (3-phase)
- Output: 3HP (4.2A)
- Range: 0-575V, 2.2kW
- Control Features
- Technology: Sensorless Vector Control
- PWM: Variable frequency output
- Logic: Built-in PID + StepLogic
- Physical Design
- Dimensions: 10.24″x5.12″x7.09″
- Mounting: DIN rail or panel
- Enclosure: IP20/NEMA Open
- Environment
- Operation: 0°C to 60°C
- Storage: -40°C to 85°C
- Humidity: 5-95% non-condensing
Shipping & Warranty
- Fast Delivery: FedEx, UPS, DHL options
- Full Protection: 12-month warranty
- UPC Code: 820919147562
Expert FAQ
Q: Can multiple drives be mounted side-by-side?
A: Yes, zero-stack design allows minimal spacing.
Q: Does it include braking capability?
A: Yes, integrated IGBT brake included.
Q: What logic functions are built-in?
A: PID, timers, counters, and StepLogic.
Q: What protection devices are needed?
A: Requires input fuses or circuit breaker.
Q: Can it control multiple motors?
A: Designed for single motor control.
Get Installation Guide
Upgrade to the 22B-E4P2N104 for advanced motor control today!
