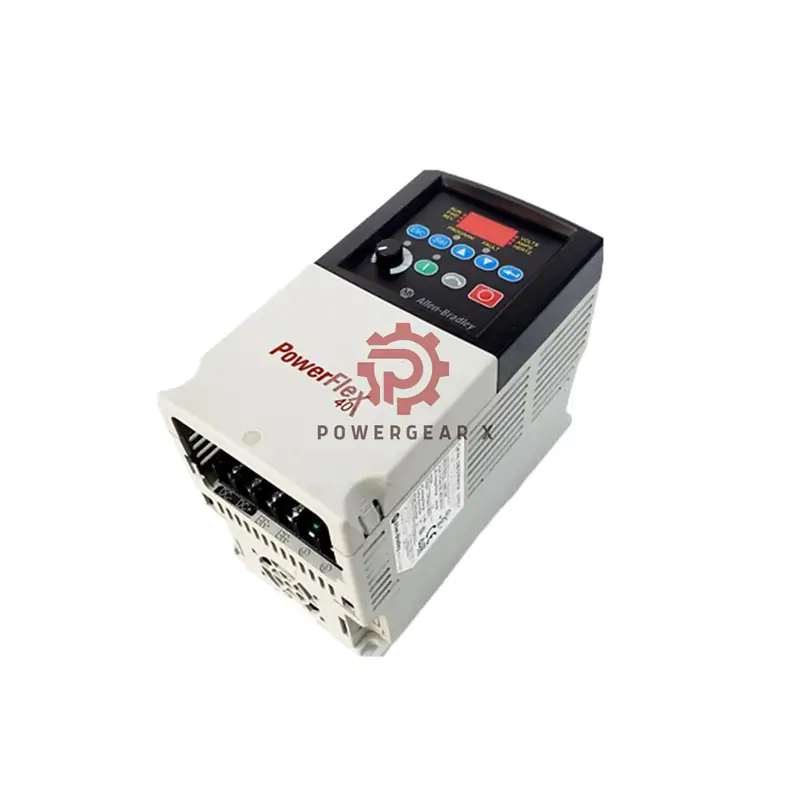

Allen-Bradley 22B-D6P0H204 Space-Saving Drive
Efficient motor control with compact design. Get complete details:
Drive Features
The 22B-D6P0H204 delivers 3HP power in a compact, zero-stack design. Perfect for tight control panels.
Technical Specifications
- Power System
- Input: 480V AC (3-phase)
- Output: 6.0A | 3HP
- Frequency: 50/60 Hz
- Design
- Frame Size: B
- Enclosure: IP20
- No heatsink design
- Control
- V/Hz & sensorless vector
- LED display + keypad
- RS-485 communication
- Environment
- Operation: -10°C to 50°C
- Zero-stack installation
- Logix platform compatible
Upgrade Options
- DeviceNet
- EtherNet/IP
- PROFIBUS DP
- BACnet
Expert FAQs
Q: Minimum panel space needed?
A: Zero-stack design requires no extra spacing.
Q: Network communication options?
A: RS-485 built-in, optional cards available.
Q: Heatsink requirements?
A: No heatsink included or required.
Q: Logix integration level?
A: Full tag-based parameter access.
Q: Maximum ambient temperature?
A: 50°C (122°F) operating limit.
