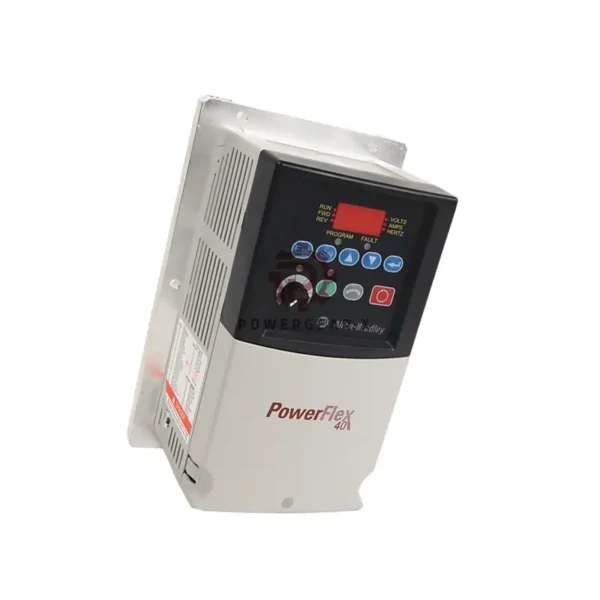

Allen-Bradley 22B-D2P3N104 Compact Drive
Precision motor control for small industrial machines. Easy DIN rail installation.
Drive Essentials
- Model: 22B-D2P3N104
- Power: 1 HP (0.75 kW)
- Input: 342-528V AC 3-Phase
- Output: 2.3A @ 0-460V AC
- Frequency: 0-400 Hz
- Mounting: DIN Rail
- Size: Compact B Frame
Smart Features
- Sensorless vector control
- Built-in PID loop
- Adjustable PWM frequency
- LED keypad with 4-digit display
- RS-485 communication
Protection System
- 150% overload for 60 sec
- 300% instantaneous fault protection
- Removable MOV for ungrounded systems
- IP20 dust protection
Connectivity
- 3 fixed + 4 programmable inputs
- 2 analog inputs (0-10V/4-20mA)
- 1 analog output
- Works with Logix PAC systems
Certifications
- UL, CUL, KCC, EAC approved
- CE marked
- Class 10 motor protection
Support & Shipping
- 12-month warranty
- FedEx / UPS / DHL options
- 3-5 day global delivery
Technical FAQs
Q: Input voltage range?
A: 342-528V AC (3-phase)
Q: Mounting type?
A: DIN rail (no panel space needed)
Q: Protection class?
A: IP20 (dust protection)
Q: Communication options?
A: RS-485 built-in + optional cards
Q: Overload capacity?
A: 150% for 1 minute, 200% for 3 sec
Get Started
- Download manual: PowerFlex 40P Drive Manual
